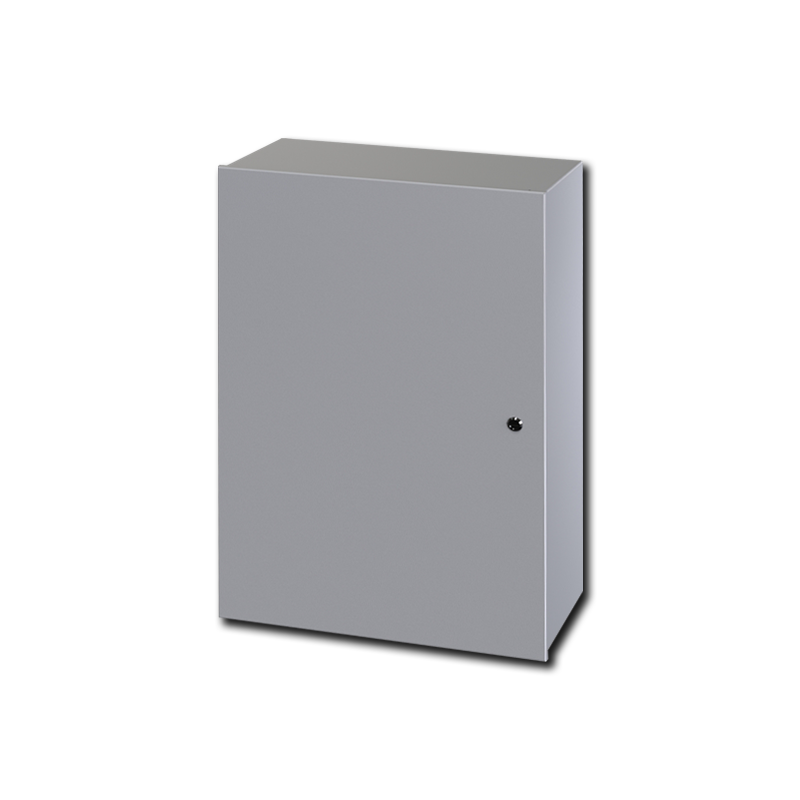

Saginaw Control & Engineering SCE-14N1206LP 14x12x6 Enclosure Nema-1

Product Description

The Saginaw Control & Engineering SCE-14N1206LP is a fourteen by twelve by six inches enclosure designed to house electrical controls and instruments. The enclosure is made from carbon steel with varying thicknesses based on size. Spot weld construction ensures durability and strength. It features standoffs for optional panel mounting, doors that open one hundred eighty degrees, and quarter turn latches that can be operated with a screwdriver.

• Constructed from 0.048, 0.063, and 0.075 inches carbon steel
• NEMA Type 1, UL Listed, CSA Type 1, and IEC 60529 IP 30 certified
• Standard finish is ANSI-61 gray powder coating

Product Highlights

This enclosure is ideal for applications where oil, water, and dust tight protection is not required.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-14N1206LP

Technical Specifications

• Material: Steel
• Color: ANSI-61 Gray
• Item Weight: 10 lbs per EA
• Actual Depth: 6 inches
• Actual Width: 12 inches
• Actual Height: 14 inches
• Back Panel: Solid or Perforated - Sold Separately
• IP Rating: IP30
• CSA Certification: Type 1
• NEMA Rating: Type 1
• UL Listing: Type 1
