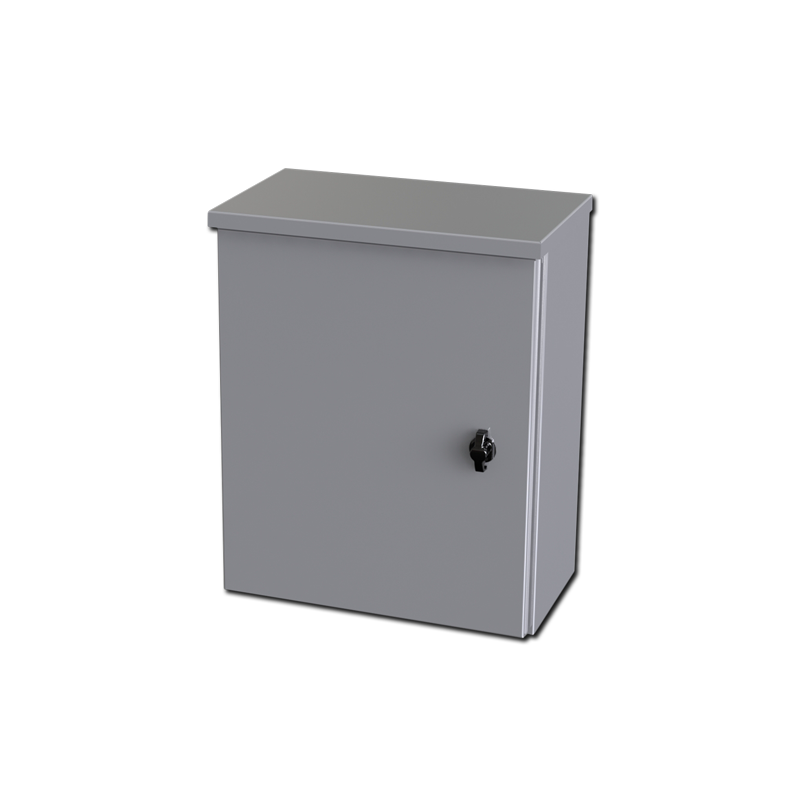

Saginaw Control & Engineering SCE-12R1208LP 12x12x8 Type-3R Hinged Cover Enclosure

Product Description

The Saginaw Control & Engineering SCE-12R1208LP is a twelve by twelve by eight inches hinged cover enclosure designed for electrical controls and components used outdoors. This enclosure protects against rain, sleet, and snow. Constructed from carbon steel with a powder-coated finish, it includes essential features for durability and security.

• Constructed with carbon steel in three thicknesses: zero point zero four eight, zero point zero six zero, and zero point zero seven five inches.
• Features concealed hinges and spot weld construction with grounding provisions.
• Compliant with NEMA Type 3R and UL standards.

Product Highlights

This enclosure is suitable for outdoor electrical applications, ensuring protection and functionality.

Product Information

Standard Information

• Manufacturer: Saginaw Control & Engineering
• Part Number: SCE-12R1208LP

Technical Specifications

• Material: Steel
• Dimensions: Twelve inches wide, twelve inches high, eight inches deep
• Weight: Sixteen pounds per enclosure
• Finish: ANSI-61 gray powder coating
• Ingress Protection: IP33
• Industry Standards: NEMA Type 3R, UL Listed Type 3R, CSA Type 3R, IEC 60529
• Mounting Features: Ground stud on door and body, mounting holes in back
• Other Features: Black quarter turn latches with padlocking provisions, doors open one hundred eighty degrees
