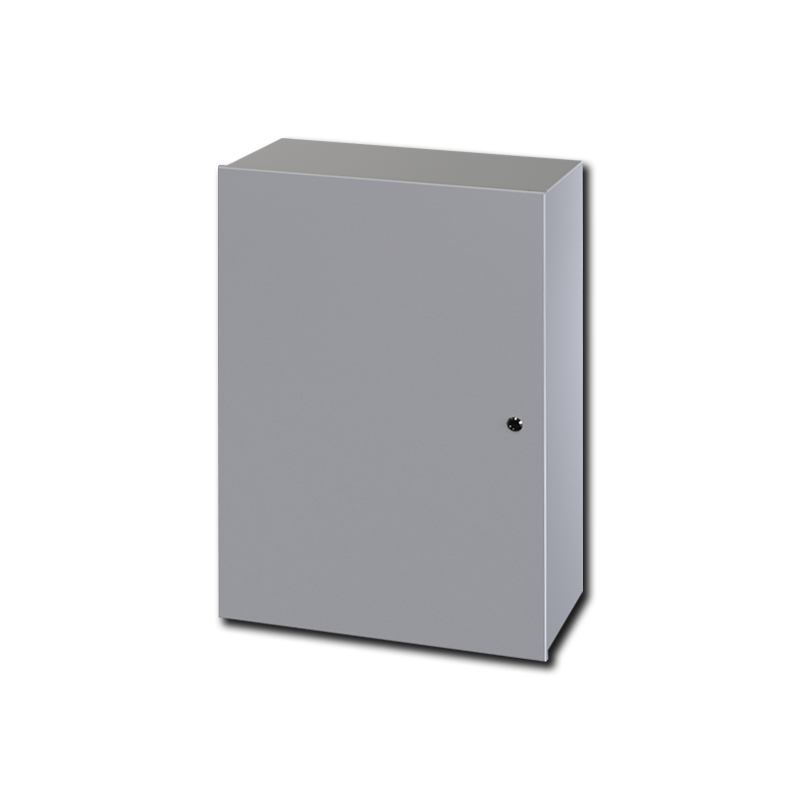

Saginaw Control & Engineering SCE-12N1206LP 12x12x6 Enclosure, Nema-1

Product Description

Saginaw Control & Engineering SCE-12N1206LP is a robust electrical enclosure designed for housing electrical controls and components. This Nema-1 rated enclosure is made with varying thicknesses of carbon steel to ensure durability and strength.

• Constructed from 0.048, 0.063, and 0.075 inches carbon steel.
• Doors open 180 degrees with a butt hinge design.
• Equipped with black quarter turn latches, operated with a screwdriver.

Product Highlights

This enclosure is ideal for areas where oil, water, and dust tight protection is not required. It features standoffs for optional panel mounting and provides versatility for electrical applications.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-12N1206LP

Technical Specifications

• Dimensions: Twelve inches wide, twelve inches high, six inches deep
• Weight: Nine pounds per unit
• Material: Steel
• Color: ANSI-61 Gray
• IP Rating: IP30
• NEMA Rating: Type 1
• UL Listed: Type 1
• Back Panel: Solid or perforated, sold separately
