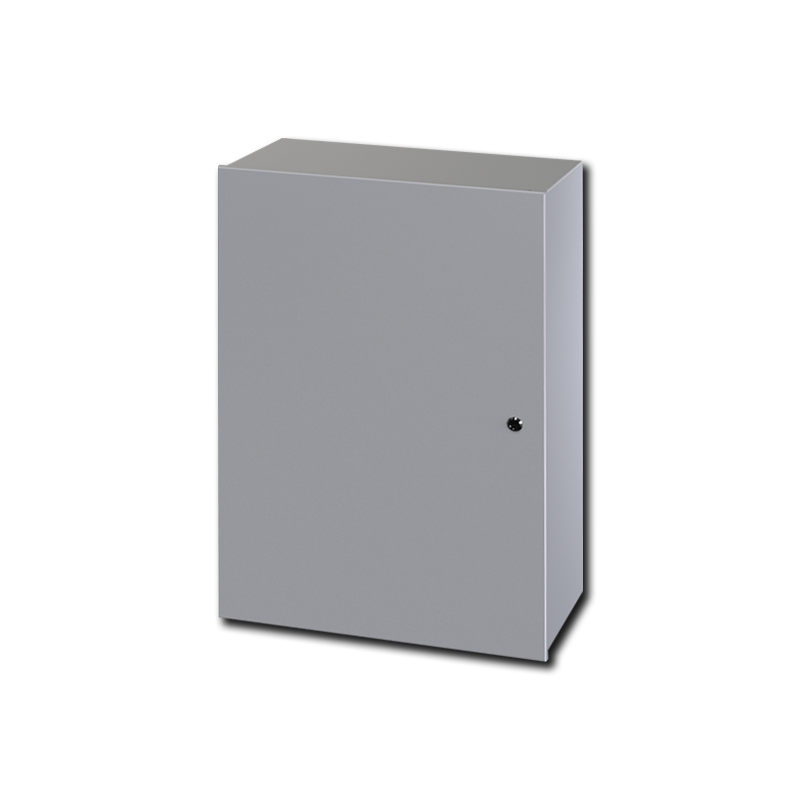

Saginaw Control & Engineering SCE-12N1006LP 12x10x6 Enclosure, Nema-1

Product Description

The Saginaw Control & Engineering SCE-12N1006LP is a twelve by ten by six inches enclosure designed for housing electrical controls, instruments, and components. It is built using carbon steel in different thicknesses according to the enclosure size. This product features spot weld construction for durability.

• Spot weld construction for enhanced durability
• Ground stud on door for grounding options
• Mounting holes in the back for installation

Product Highlights

This enclosure is suitable for applications that do not require oil, water, and dust tight protection, making it ideal for indoor areas.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-12N1006LP

Technical Specifications

• Material: Steel
• Color: ANSI-61 Gray
• IP Rating: IP30
• NEMA Rating: Type 1
• UL Listed: Type 1
• Actual Depth: 6 inches
• Actual Width: 10 inches
• Actual Height: 12 inches
• Item Weight: 10 lbs per EA
• Back Panel: Solid or Perforated - Sold Separately
