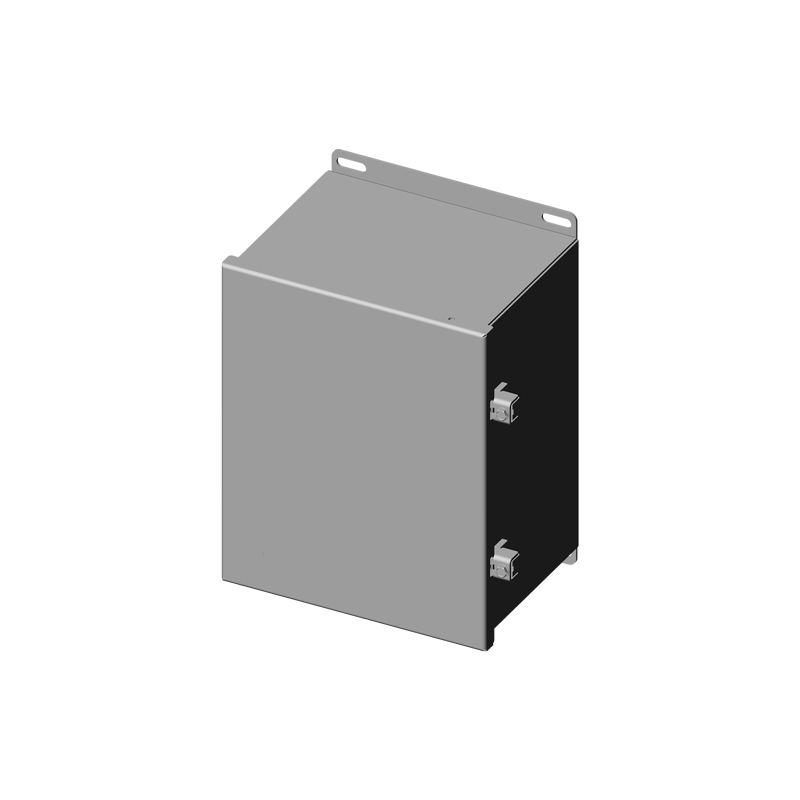

Saginaw Control & Engineering SCE-10086CHNF 10.13x8x6 CHNF Enclosure

Product Description

The Saginaw Control & Engineering SCE-10086CHNF is an electrical enclosure designed to protect components in various environments. It is made from zero-point-zero-six-three inches carbon steel. The seams are continuously welded and ground smooth, eliminating holes. The enclosure features a bolt-on continuous hinge with a stainless steel pin for durability. Quick and easy to operate, the stainless steel external screw clamps facilitate secure closure. The oil-resistant gasket ensures protection against moisture and contaminants. Standoffs for optional sub-panels and grounding options enhance functionality. This enclosure is ideal for use as electrical junction boxes and control housings, with a design that keeps out dust, dirt, oil, and water.

• Constructed from durable carbon steel with a powder-coated finish.
• Meets various industry standards including NEMA Type 3R, 4, 12.
• Versatile applications for electrical wiring, instrumentation, and control systems.

Product Highlights

Provides effective protection and accessibility for electrical components.

Product Information

Standard Information

• Brand: Saginaw Control & Engineering
• MPN: SCE-10086CHNF

Technical Specifications

• Material: Steel
• Color: ANSI-61 Gray
• Actual Depth: 6 inches
• Actual Width: 8 inches
• Actual Height: 10.13 inches
• IP Rating: IP66
• NEMA Rating: Type 3R, 4, 12 and 13
• UL Listed: Type 3R, 4, 12
• CSA Rating: Type 3R, 4, 12
