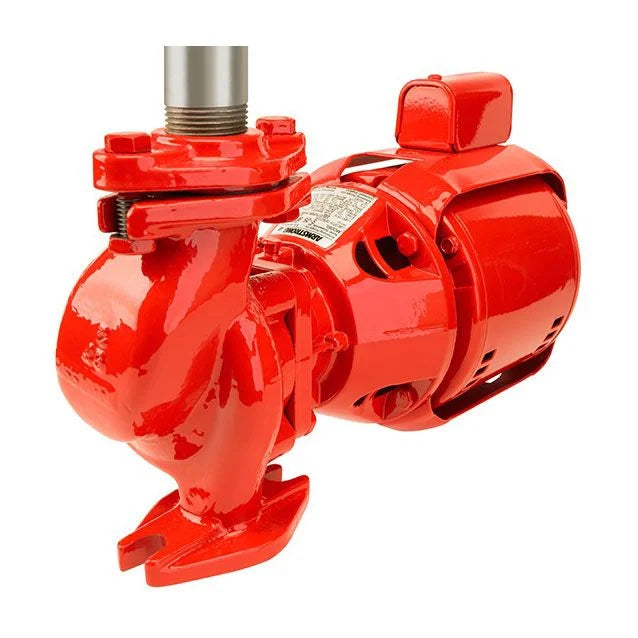

Armstrong Fluid Technology 116531-132 S69 Series S In-line Circulator 1HP 115/230V 1Ph

Product Description

The Armstrong Fluid Technology S69 Series S In-line Circulator, model 116531-132, is engineered for reliable fluid management. This 1 HP single-phase circulator pump is designed with a radially-split bronze-fitted body and an oversized alloy steel-copper shaft for enhanced durability and performance.

• Modular construction with a removable shaft and bearing module for easy maintenance
• Centrifugal non-ferrous impeller ensures efficient fluid flow
• Sintered silicon carbide seal provides high strength and corrosion resistance

Product Highlights

The pump's construction is ideal for installation in hydronic heating and cooling systems, domestic water systems, and various industrial applications. Its compact, efficient design allows for easy integration into space-constrained areas, lowering energy consumption while optimizing performance.

Technical Specifications

• Brand: Armstrong Fluid Technology
• MPN: 116531-132
• Motor HP: 1 HP
• Motor Voltage: 115/230V
• Motor Phase: 1 Ph
• Pump Type: Circulator
• Max Temp: 225 degrees Fahrenheit
• Working Pressure: 125 psi
• Pump Connection Size: 3 inches
• Pump Connection: Flanged
• Flanges Included: Yes
