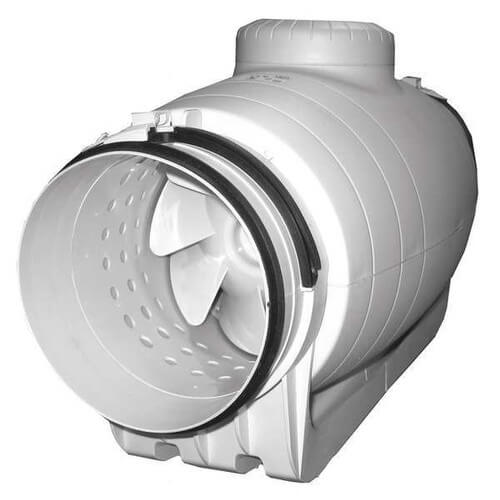

S&P TD-125XS TD-SILENT 5 Mixed Flow Duct Fan 120V 2500 RPM 36W

Product Description

The S&P TD-125XS is a mixed flow duct fan designed for efficiency and reliability. This fan operates on single-phase power at one hundred twenty volts and features a shaded pole induction motor housed in durable die cast aluminum. It supports direct single speed connection and voltage speed control, making it a versatile choice for various HVAC applications.

• Class l electrical insulation
• IP 44 protection for durability
• Self-lubricating sleeve bearings

Product Highlights

The TD-125XS is ideal for ventilation and air flow in residential and commercial settings. It can handle air streams up to one hundred four degrees Fahrenheit and comes equipped with safety features to protect the motor.

Product Information

Standard Information

• Brand: S&P
• MPN: TD-125XS

Technical Specifications

• Voltage: 120 volts
• RPM: 2500
• Max Watts: 36
• Air Flow Capacity: 143 CFM
• Warranty: 5 year limited
• Duct Size: 5 inches
• Weight: 11.045 pounds
• Shipping Dimensions: 25.25 in depth, 13.25 in width, 7.5 in height
