S&P PV-100 S&P Inline Fans 115 VAC 4 INLINE FAN 108 CFM

Product Description

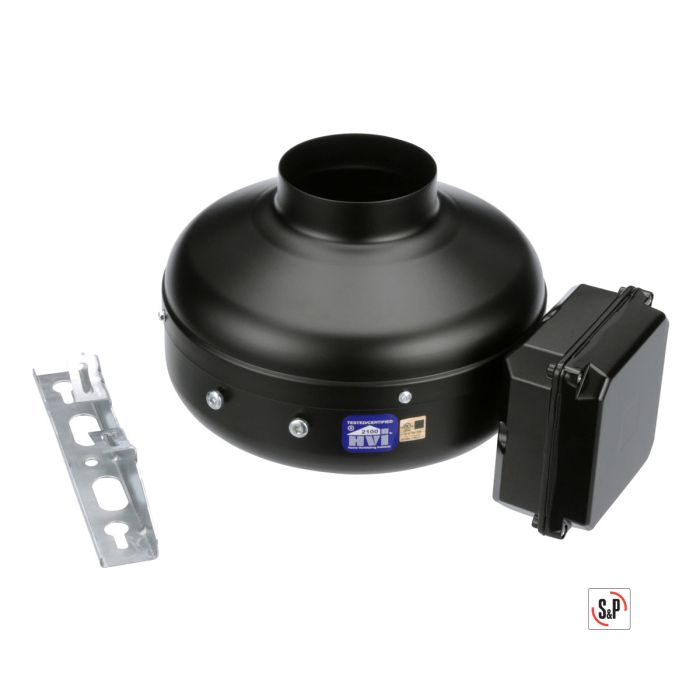

The S&P PV-100 is a reliable in-line centrifugal duct fan from S&P USA Ventilation Systems. It operates at one hundred fifteen volts alternating current and provides an airflow of one hundred eight cubic feet per minute. This fan is suitable for a four-inch duct and is made from galvanized steel.

• Features an external rotor motor.
• Delivers performance against high static pressures.
• Compact design ideal for restricted spaces.

Product Highlights

This model is designed for ventilation systems that require high airflow in limited spaces, making it perfect for installations in ceilings, cabinets, and other confined areas.

Product Information

Standard Information

• Brand: S&P
• Manufacturer: S&P USA Ventilation Systems

Technical Specifications

• Type: In-line
• Series: PV Series
• Duct Size: 4 inches
• Flow Rate: 108 cfm
• Dimensions: 7-11/16 inches H
• Motor Type: Enclosed
• Motor Speed: 1400 rpm
• Bearing Type: Ball
• Power Rating: 57 W
• Voltage Rating: 115 VAC
• Frequency Rating: 60 Hz
• Housing Material: Galvanized Steel
• Certifications: AMCA Certified, cULus Listed, EnergyStar Qualified, ETL Listed, HVI 2100, Title 24 Compliant
• Country of Origin: ES
