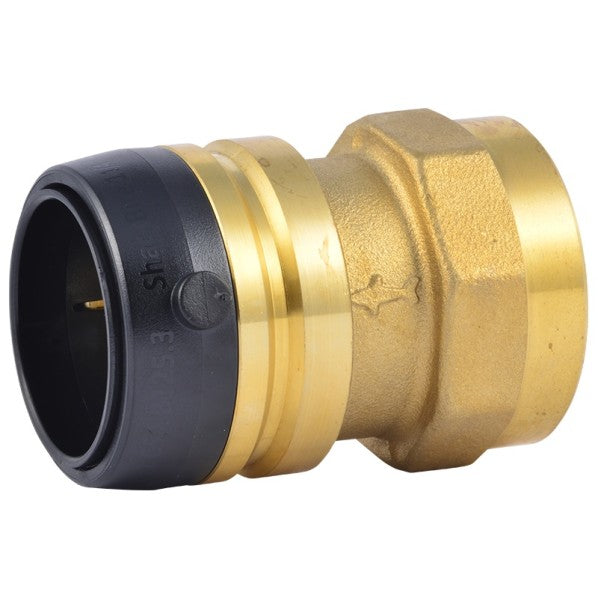

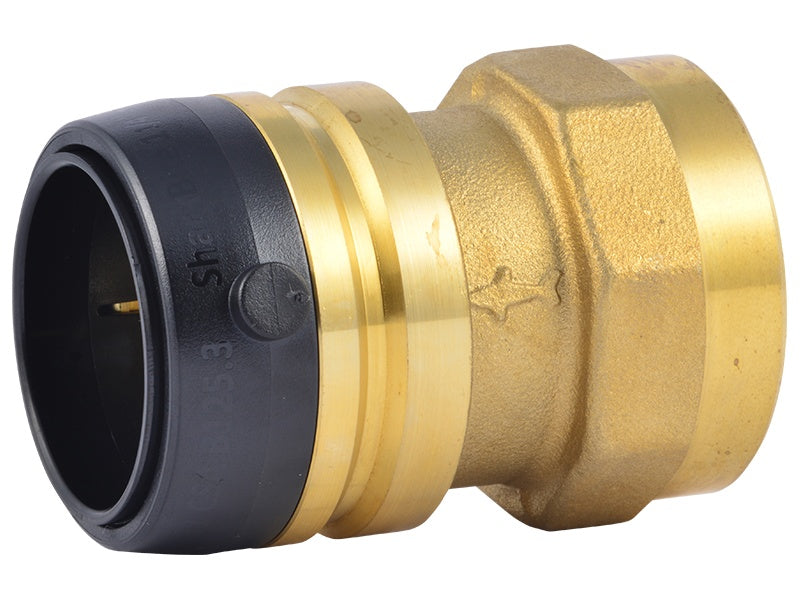

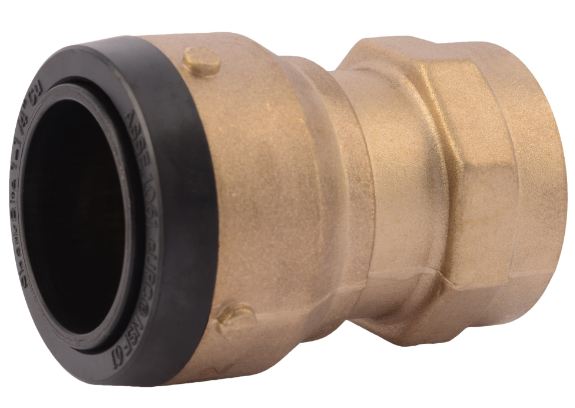

Rwc UXL113532F coupling with female connector 1-1/4 inches x 1-1/4 inches FNPT

Product Description

The RWC UXL113532F is a 1-1/4" x 1-1/4" FNPT coupling designed for commercial and residential plumbing applications. This lead-free DZR brass fitting is suitable for potable water, hydronic heating, chilled water, and general water distribution, including irrigation systems. It offers quick connect/disconnect functionality without special tools, supporting installation with copper, PEX, and CPVC pipes. The coupling operates within a temperature range of 20°F to 200°F and handles a maximum working pressure of 200 psi.

• Quick Connect: No tools, soldering, clamps, unions, or glue required for installation.
• SAFE-Recessed Release Collar: Requires a special Demount Tool, preventing accidental disconnection.
• Lead Free (LF) Dezincification Resistance (DZR) Brass: Exceeds current no-lead legislation and is suitable for underground installation.

Product Highlights

This coupling provides a secure, flame-free connection for various plumbing systems, featuring lead-free DZR brass construction and quick installation.

Product Information

Standard Information

• Brand: RWC
• Manufacturer Part Number: UXL113532F

Technical Specifications

• Type: FNPT
• Connection Type: SharkBite 2XL x FNPT
• Size: 1-1/4" X 1-1/4"
• Body Material: DZR Brass-Lead Free Alloy
• O-Ring Material: Chloramine Resistant EDPM O-Ring
• Tube Liner Material: Copper
• Grab Ring Material: 316 Stainless Steel
• Cartridge Assembly Material: Acetyl Copolymer
• Operating Temperature: 20°F to 200°F
• Maximum Working Pressure: 200 psi
• Certifications: IAPMO IGC 157, ASSE 1061, NSF/ANSI 61, NSF/ANSI 372
