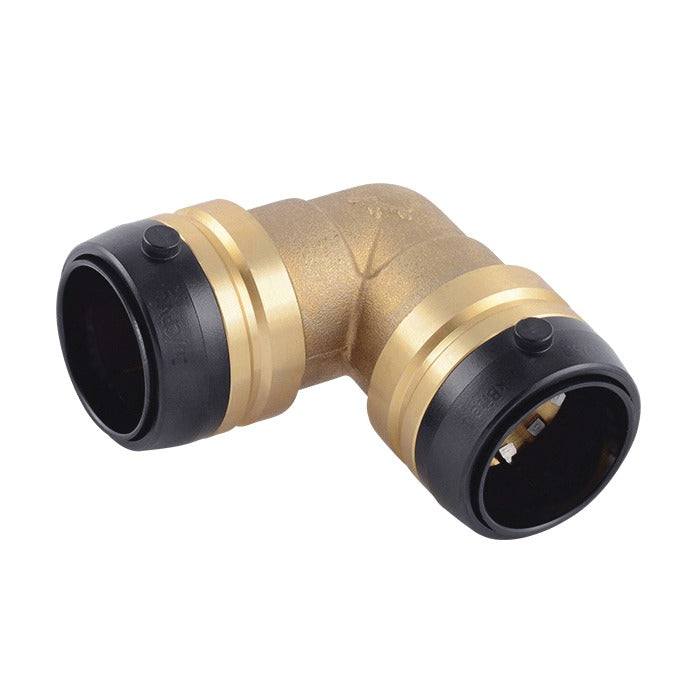

Rwc UXL0235 Push-to-connect Elbow 1-1/4 Inch Dzr Brass

Product Description

The RWC UXL0235 is a large-diameter push-to-connect elbow fitting manufactured from dezincification-resistant (DZR) brass. It accepts 1-1/4 inch nominal pipe or tubing and creates a directional change in a water line without soldering, threading, or crimping. The push-to-connect end style allows a licensed plumber or experienced tradesperson to make a secure, watertight connection by inserting compatible pipe or tubing into the fitting until it seats fully. DZR brass construction resists the zinc leaching that can occur in aggressive water conditions, making this fitting appropriate for potable water systems.

This elbow is suited for residential and light commercial plumbing applications where a 90-degree direction change is needed on a 1-1/4 inch line. Typical installations include supply piping, main distribution lines, and branch connections in retrofit or new construction scenarios. The push-to-connect design is especially useful in tight spaces or when working with existing copper, CPVC, or PEX tubing where torch work is impractical or code-restricted.

Key Features

• Push-to-connect end style requires no solder, thread, or crimp tools
• 1-1/4 inch nominal size for large-diameter plumbing lines
• DZR brass construction for resistance to dezincification in aggressive water conditions
• Compatible with copper, CPVC, and PEX tubing per nominal size
• Domestic product designation

Compatibility

Designed as an OEM-style push-to-connect replacement or new-installation fitting for 1-1/4 inch nominal residential and light commercial water supply piping systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC) where applicable. Shut off the water supply and depressurize the line before making any connections. Ensure pipe ends are cut cleanly and squarely and deburred before inserting into the fitting to achieve a proper seal. Do not exceed the fitting's rated working pressure or temperature, and verify compatibility with local water chemistry before installation in potable water systems.

Technical Specifications

• Nominal Size: 1-1/4 inches
• End Style: Push-to-Connect
• Material: DZR Brass
• Fitting Type: Elbow
• Origin: Domestic

Standard Information

• Brand: RWC
• Manufacturer Part Number: UXL0235
