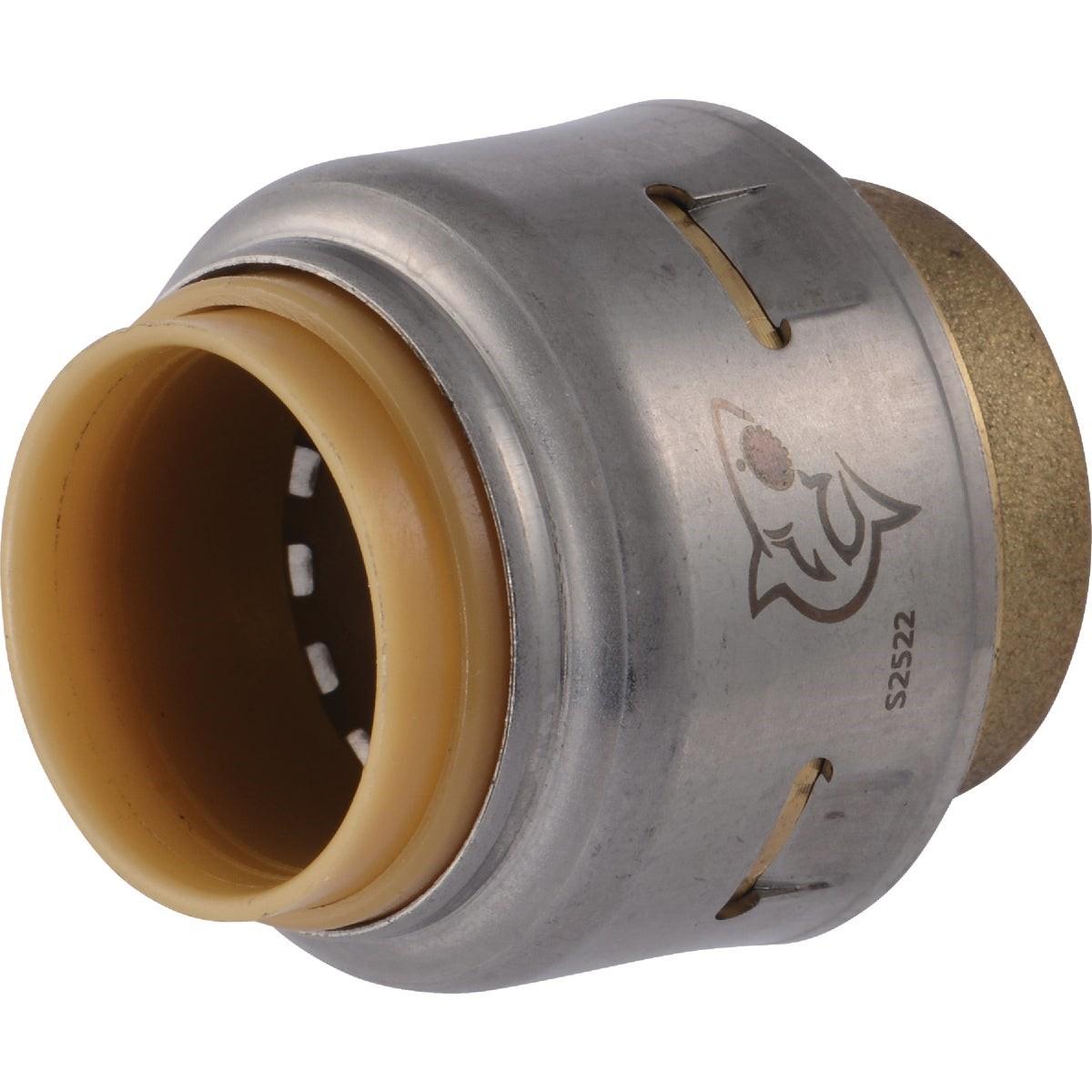

Rwc UR514A Sharkbite 1/2 Inch Brass Push End Cap

Product Description

The RWC UR514A is a 1/2-inch push-to-connect brass end cap from the SharkBite product line, designed to terminate open pipe ends without soldering, crimping, or special tooling. Constructed from one-piece DZR (dezincification-resistant) brass, this fitting handles system pressures up to 200 psi and temperatures up to 200 degrees F. The push-to-connect design allows a plumber or pipefitter to seat the fitting by hand, reducing installation time in both new construction and retrofit work. It is individually bagged for organized jobsite handling.

This end cap is suitable for residential and light commercial plumbing applications where a pipe run must be capped off cleanly. It is compatible with copper, PEX, and CPVC pipe in 1/2-inch diameter. The fitting can be installed in concealed locations, including buried underground or placed behind drywall, making it appropriate for in-wall rough-in work and underground supply lines where access after installation is limited.

Key Features

• One-piece DZR brass construction resists dezincification in aggressive water conditions
• Rated to 200 psi and 200 degrees F for standard residential and light commercial service
• Push-to-connect design requires no solder, crimp rings, or clamp tools
• Removable and reusable with a disconnect clip, allowing repositioning or system changes
• Approved for buried and behind-drywall installation
• Certified to UPC, IAPMO, and NSF-61 standards

Compatibility

Compatible with 1/2-inch copper, PEX, and CPVC pipe. Designed as an OEM-style push-to-connect fitting for residential and light commercial potable water plumbing systems.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters working on potable water systems. Shut off the water supply and relieve system pressure before installing or removing any fitting. Pipe ends must be cut square, deburred, and cleaned before insertion to ensure a proper seal. Follow all applicable local plumbing codes and IPC requirements for concealed or buried fitting installations.

Technical Specifications

• Connection Type: Push-to-Connect
• Pipe Size: 0.5 inches
• Material: One-Piece DZR Brass
• Maximum Pressure: 200 psi
• Maximum Temperature: 200 degrees F
• Compatible Pipe Types: Copper, PEX, CPVC
• Certifications: UPC, IAPMO, NSF-61
• Weight: 0.073 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR514A
