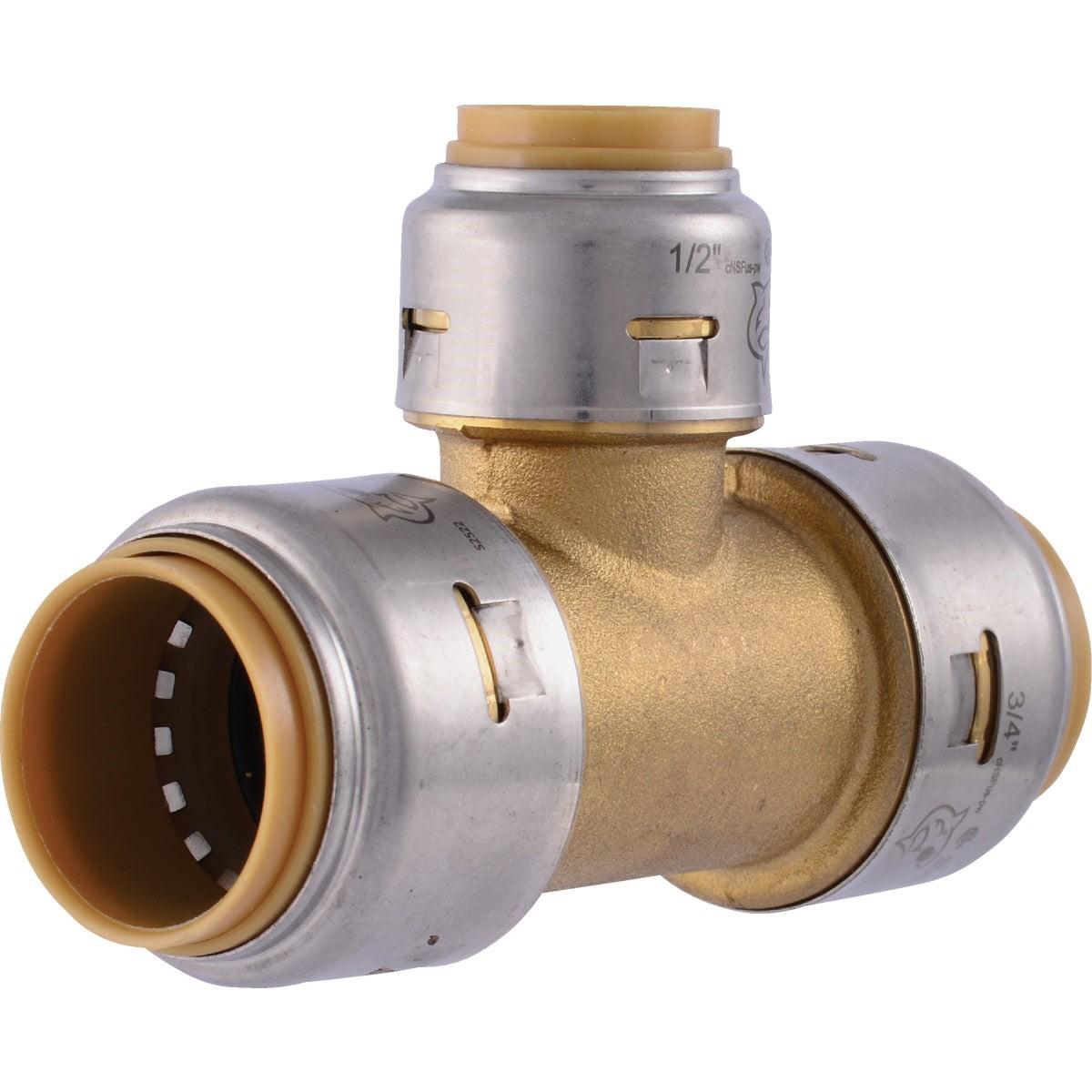

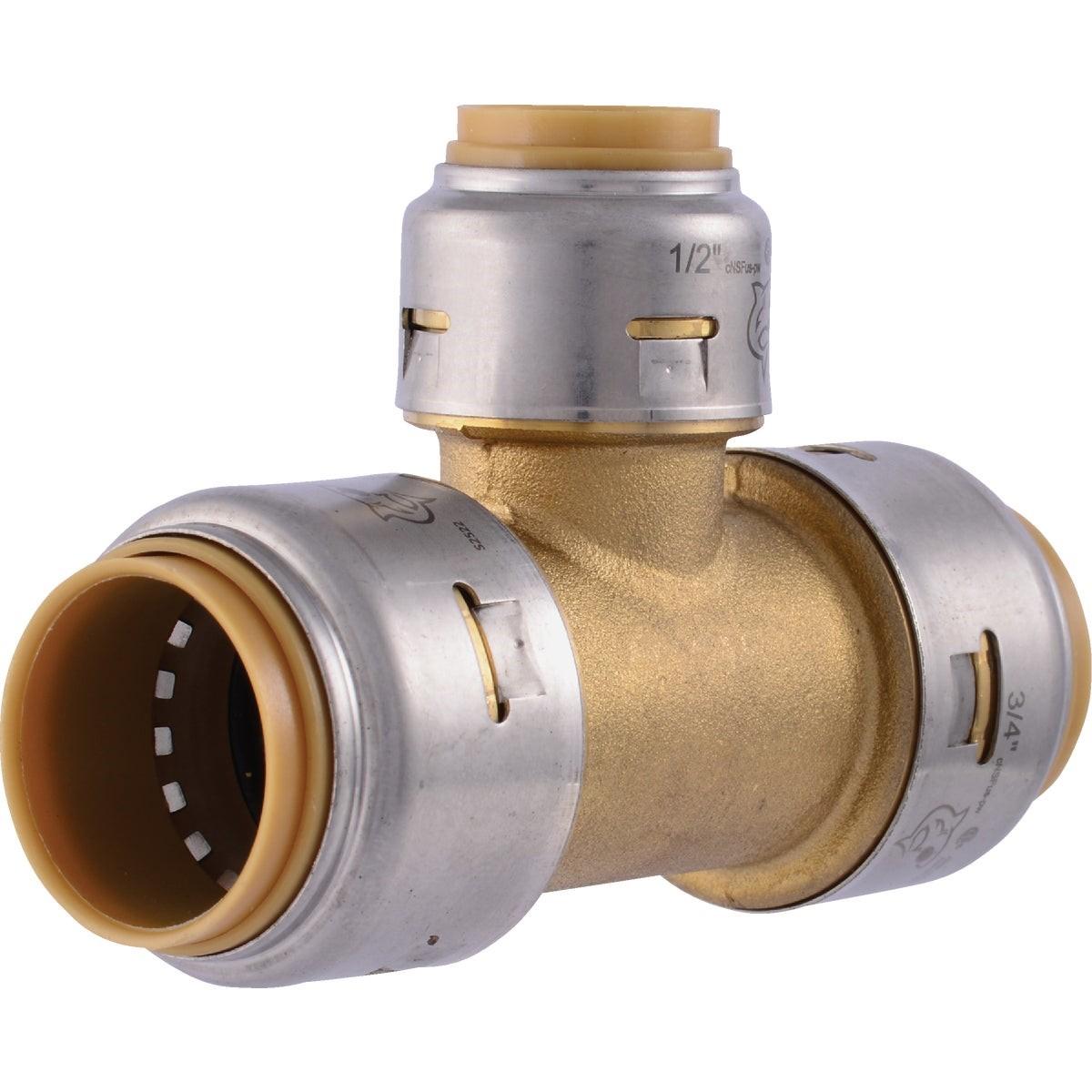

Rwc UR412A Sharkbite Max Push-to-connect Tee 3/4x3/4x1/2

Product Description

The RWC UR412A is a SharkBite Max push-to-connect reducing tee fitting designed for fast, tool-free pipe connections in residential and light commercial plumbing systems. It features a stainless-steel retainer and a re-engineered body that reduces insertion effort compared to first-generation SharkBite fittings while delivering a 250 psi burst pressure rating. The 3/4-inch by 3/4-inch by 1/2-inch configuration makes it suitable for branch-off runs where a reduced outlet is needed. No soldering, clamps, glue, or special tools are required. The fitting can be rotated after installation for easy adjustment, and it can be removed and reused with a standard SharkBite disconnect tool.

This fitting is used in residential and light commercial plumbing installations where fast, reliable connections are needed on PEX, copper, CPVC, PE-RT, or HDPE pipe. It is well suited for repair work, new construction rough-in, and retrofit applications where open-flame soldering is not practical or permitted. Licensed plumbers and service technicians install this fitting when speed and flexibility are priorities on the jobsite.

Key Features

• 250 psi pressure rating for reliable performance in standard potable water systems
• Stainless-steel retainer provides added grip strength and durability
• Reduced insertion effort compared to first-generation SharkBite push-to-connect fittings
• No PEX tube liner required — works directly on compatible pipe types
• Fitting rotates after installation for quick alignment adjustments
• Removable and reusable with a standard SharkBite disconnect tool

Compatibility

Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe. Sized for 3/4-inch run ports and a 1/2-inch branch outlet.

Installation Notes

Installation is performed by licensed plumbers or qualified tradespeople. Shut off and depressurize the water supply before making or breaking any connections. Ensure pipe ends are cut square, deburred, and clean before insertion to achieve a proper seal. When removing the fitting, use an approved disconnect clip or disconnect tool — do not attempt to pull the fitting free without it.

Technical Specifications

• Inlet Size: 3/4 inches x 3/4 inches
• Outlet Size: 1/2 inches
• Pressure Rating: 250 psi
• Retainer Material: Stainless steel
• Connection Type: Push-to-connect
• Compatible Pipe Types: PEX, copper, CPVC, PE-RT, HDPE
• Weight: 0.304 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR412A
