Rwc UR370A Sharkbite Max Brass Push-to-connect Tee 3/4 in

Product Description

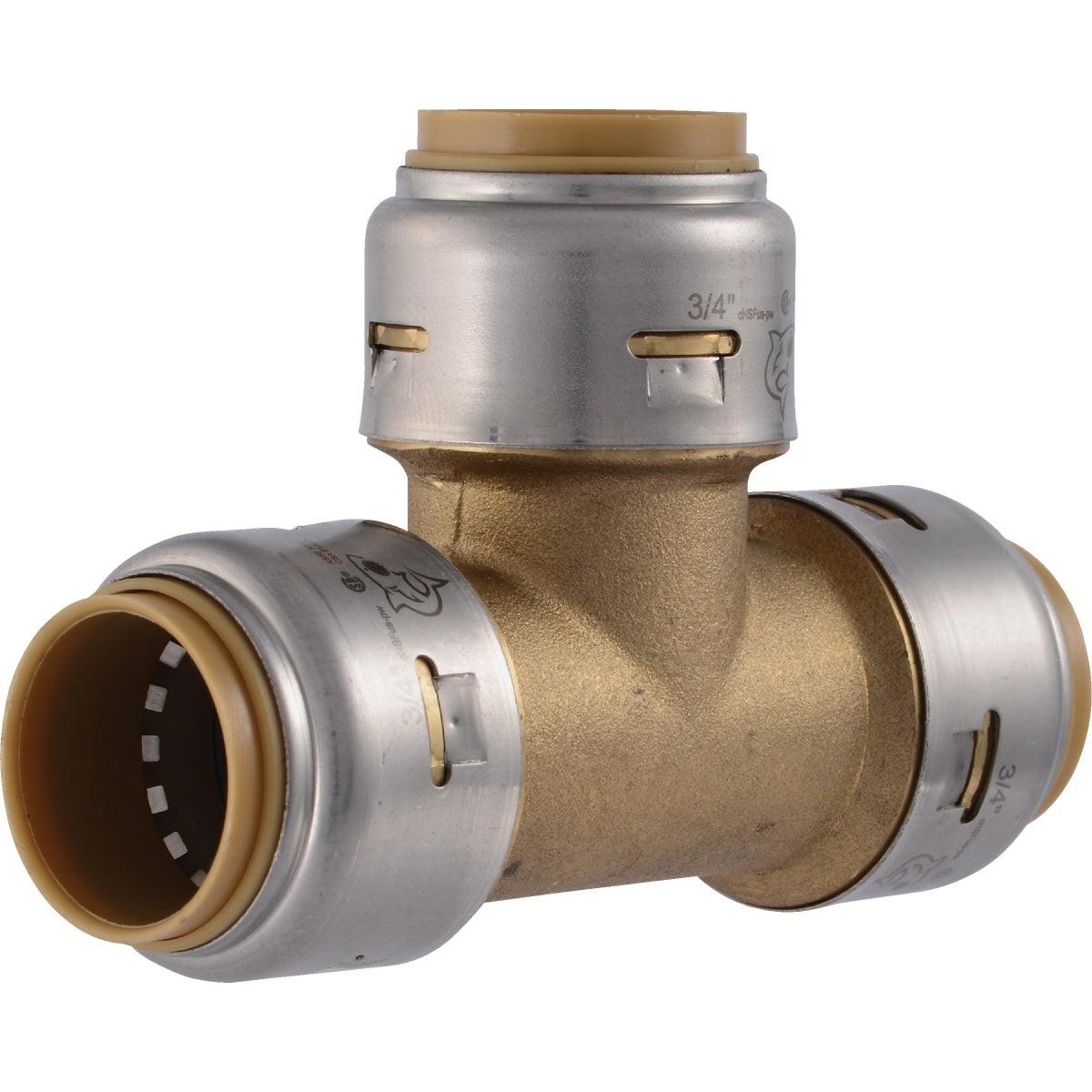

The RWC UR370A is a SharkBite Max push-to-connect tee fitting designed for fast, tool-free pipe connections in residential and light commercial plumbing systems. Made from brass, this 3/4 inch by 3/4 inch by 3/4 inch tee uses a stainless-steel retainer mechanism that delivers a 250 psi pressure rating while requiring roughly half the insertion effort of first-generation SharkBite fittings. No soldering, clamps, unions, glue, or specialty tools are needed. The fitting weighs 0.356 pounds and is sold individually.

This tee is suited for use with PEX, copper, CPVC, PE-RT, and HDPE pipe, making it a versatile choice across a wide range of plumbing installations. Licensed plumbers and pipefitters use this fitting for new construction, remodel work, and repair situations where speed and reliability matter. The redesigned body eliminates the need for a PEX tube liner, simplifying the connection process. Once installed, the fitting can be rotated for quick alignment adjustments. When a change or repair is needed, a standard SharkBite disconnect tool removes the fitting cleanly, allowing it to be reused.

Key Features

• 250 psi pressure rating for reliable service in demanding plumbing applications
• Stainless-steel retainer provides added holding strength and long-term durability
• Requires approximately half the insertion effort of first-generation SharkBite fittings
• No PEX tube liner required — simplified installation on PEX pipe
• Fitting rotates after installation for easy directional adjustment
• Removable and reusable with a standard SharkBite disconnect tool

Compatibility

Compatible with 3/4 inch PEX, copper, CPVC, PE-RT, and HDPE pipe. Designed as an OEM-style push-to-connect replacement or new-installation fitting for residential and light commercial plumbing systems.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Shut off the water supply and relieve system pressure before cutting into any existing line. Pipe ends must be cut square and deburred before insertion — a ragged or angled cut can compromise the seal. No special tools are required to install; a SharkBite disconnect clip or disconnect tool is required for removal.

Technical Specifications

• Connection Size: 3/4 inch x 3/4 inch x 3/4 inch
• Fitting Type: Tee
• Connection Method: Push-to-connect
• Pressure Rating: 250 psi
• Material: Brass body, stainless-steel retainer
• Compatible Pipe Types: PEX, copper, CPVC, PE-RT, HDPE
• Weight: 0.356 pounds
• Sold As: Each
• UPC: 00697285059719

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR370A
