Rwc UR3086FX24 Water Softener Connector 3/4x1x24 in

Product Description

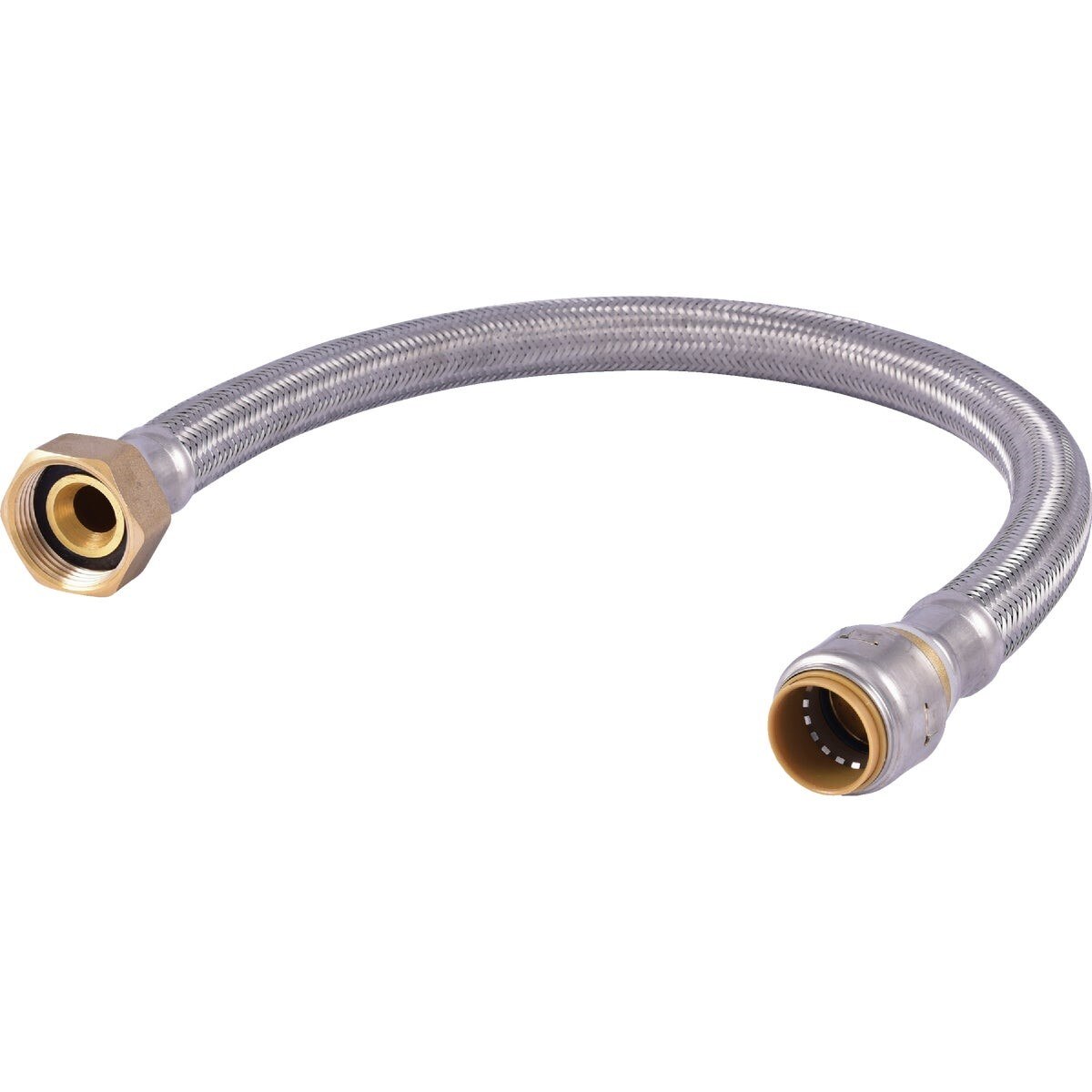

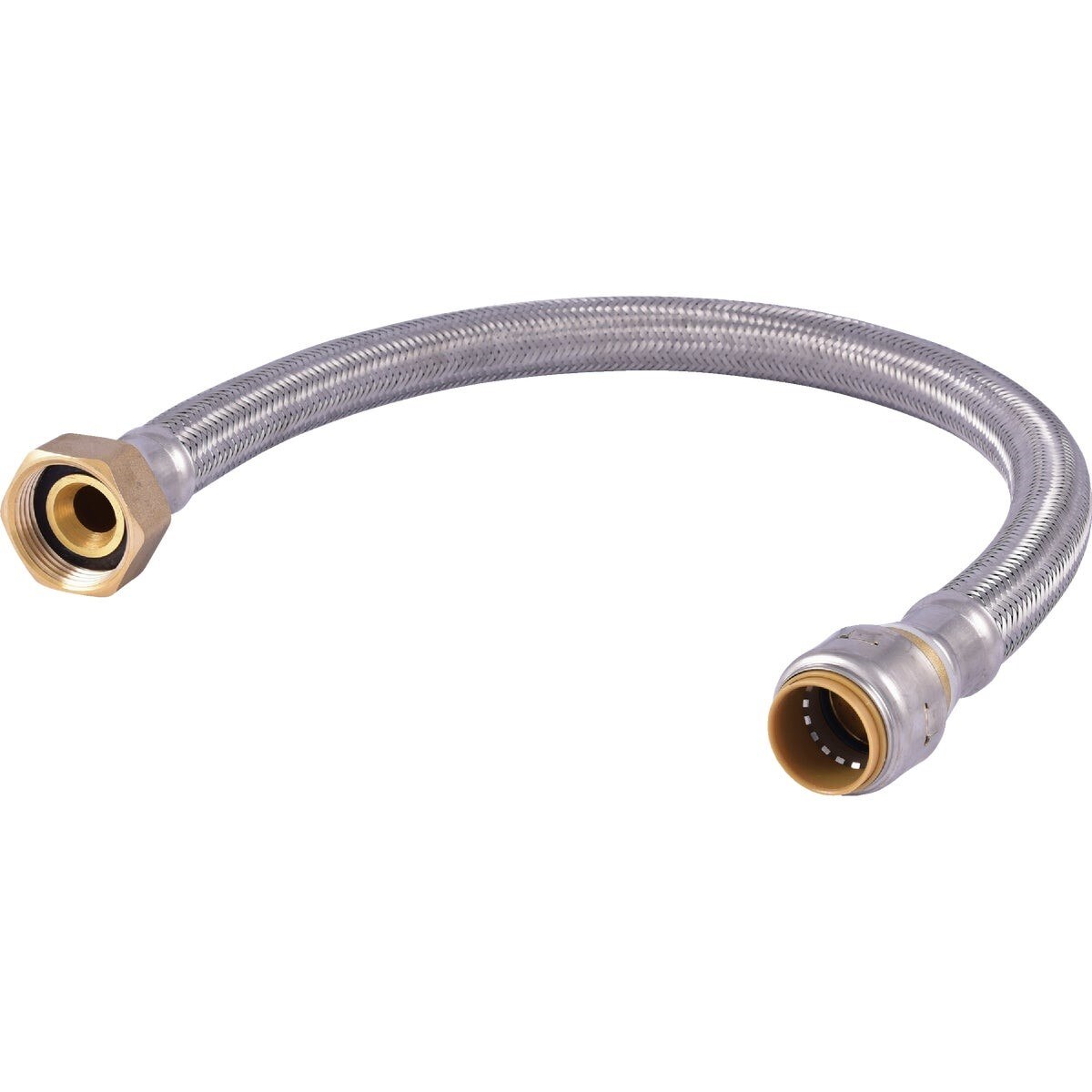

The RWC UR3086FX24 is a stainless steel water softener connector designed to link a water softener unit to the supply line using a push-fit inlet and a female iron pipe (FIP) outlet. The connector measures 3/4 inch on the push-fit end, 1 inch on the FIP end, and runs 24 inches in length. Stainless steel construction resists corrosion in high-mineral water environments, which is a common condition in homes and light commercial properties where water softeners are installed. Licensed plumbers and experienced DIYers install this type of connector during new softener installations or as a replacement when an existing connector shows wear, kinking, or corrosion.

This connector is suited for residential and light commercial water softener installations where the inlet piping terminates in a push-fit-compatible tube and the softener port accepts a 1-inch FIP threaded connection. The 24-inch length provides enough flexibility to accommodate typical equipment setups without requiring additional fittings. It is appropriate for use in utility rooms, basements, and mechanical spaces where water softening equipment is typically located.

Key Features

• Stainless steel construction for corrosion resistance in hard-water and high-mineral environments
• Push-fit inlet connection for tool-free, no-solder installation on compatible tubing
• 1-inch FIP outlet threads directly onto standard softener inlet ports
• 24-inch length accommodates typical spacing between supply line and softener unit
• 3/4-inch x 1-inch transition sizing reduces the need for separate reducing fittings

Compatibility

Designed as an OEM-style replacement connector for residential and light commercial water softener installations requiring a push-fit x FIP connection in a 3/4-inch by 1-inch transition configuration.

Installation Notes

A licensed plumber should shut off the main water supply and depressurize the line before removing the existing connector or making new connections. Push-fit fittings require clean, properly deburred tubing ends for a secure, leak-free seat. FIP threads should be wrapped with thread-seal tape in accordance with standard plumbing practice and local code requirements. After installation, restore water pressure gradually and inspect all connections for leaks before returning the system to service.

Technical Specifications

• Inlet Size: 3/4 inches (push-fit)
• Outlet Size: 1 inch (FIP)
• Length: 24 inches
• Material: Stainless Steel
• Connection Type: Push-Fit x FIP (Female Iron Pipe)
• Weight: 1.012 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR3086FX24
