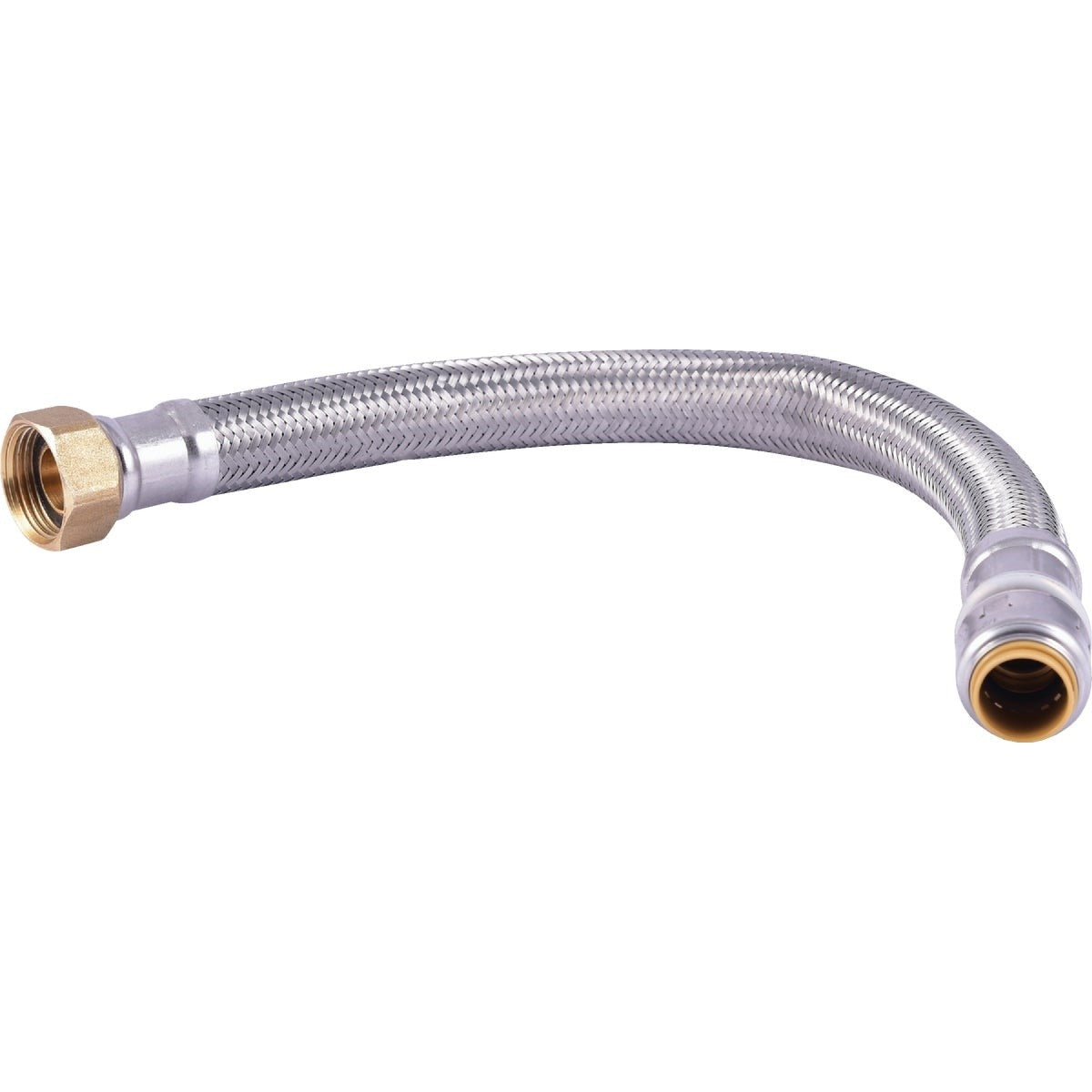

Rwc UR3068FX15 Braided Flexible Water Heater Connector

Product Description

The RWC UR3068FX15 is a braided flexible water heater connector designed for residential water heater installations. It features a 1/2-inch SharkBite push-fit inlet and a 3/4-inch female iron pipe (FIP) outlet, with an overall length of 15 inches. The braided construction provides flexibility during installation while maintaining a secure, durable connection between the water supply line and the water heater. This connector is rated to NSF/ANSI 61 for drinking water system components and NSF/ANSI 372 for lead content compliance, making it suitable for potable water applications. Licensed plumbers and experienced installers use this connector to simplify hot and cold supply line connections.

This connector is suited for residential water heater installations where a flexible braided supply line is needed to bridge the connection between copper or compatible supply piping and the threaded nipples on a standard water heater. The 15-inch length accommodates typical clearances found in residential utility rooms and mechanical spaces. It is available for both hot and cold supply line positions on the water heater.

Key Features

• SharkBite push-fit inlet allows tool-free connection to compatible pipe without soldering or crimping
• 3/4-inch FIP threaded outlet connects directly to standard water heater nipples
• 15-inch braided flexible body accommodates minor misalignment and simplifies rough-in
• NSF/ANSI 61 certified for potable water contact
• NSF/ANSI 372 certified for low-lead compliance
• Meets ASME A112.18.6-2009 and CSA B125.6 standards

Compatibility

Designed as an OEM-style replacement or new-installation flexible connector for residential water heaters using standard threaded nipple inlets and compatible SharkBite push-fit supply piping.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and drain pressure from the line before connecting or disconnecting. Thread the FIP end onto the water heater nipple and tighten with channel-lock pliers or an adjustable wrench — do not overtighten. Engage the SharkBite end by pushing firmly onto clean, deburred pipe until fully seated.

Technical Specifications

• Inlet Connection: 1/2 inch SharkBite push-fit
• Outlet Connection: 3/4 inch FIP
• Length: 15 inches
• Hose Type: Braided Flexible
• Weight: 0.575 pounds
• Certifications: NSF/ANSI 61, NSF/ANSI 372, ASME A112.18.6-2009, CSA B125.6
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR3068FX15
