Rwc UR256A4 Sharkbite Max 3/4 in 90 Deg Brass Elbow 4-pack

Product Description

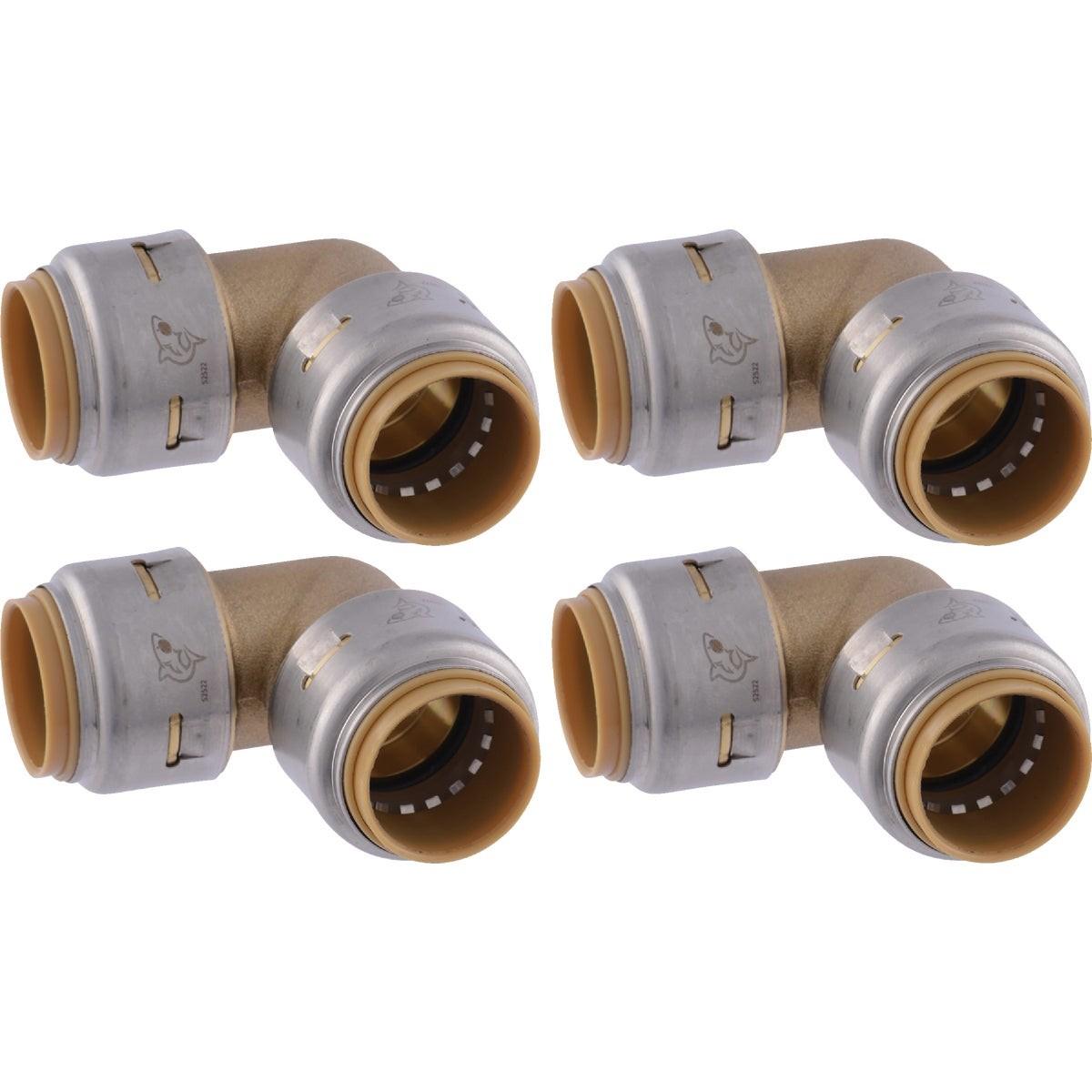

The RWC UR256A4 is a 4-pack of SharkBite Max 3/4-inch by 3/4-inch 90-degree push-to-connect brass elbows designed for fast, tool-free pipe connections in residential and light commercial plumbing systems. Each fitting features a redesigned stainless-steel retainer that delivers a 250 psi pressure rating while reducing the insertion effort required compared to first-generation SharkBite fittings. The engineered brass body does not require a PEX tube liner. These fittings are installed without soldering, clamps, unions, glue, or special tools, making them a direct choice for service plumbers and remodel contractors who need reliable connections in tight timelines.

These push-to-connect elbows are suited for residential and commercial plumbing repairs, remodels, and new installations where a 90-degree directional change is needed. They are compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe in 3/4-inch diameter. The fitting can be rotated after installation for quick alignment adjustments. When removal is needed, a standard SharkBite disconnect tool releases the fitting cleanly, allowing it to be reused or repositioned.

Key Features

• 250 psi pressure rating with redesigned stainless-steel retainer
• Reduced insertion effort compared to first-generation SharkBite fittings
• No PEX tube liner required
• No soldering, glue, clamps, or special tools needed for installation
• Fitting rotates after installation for alignment adjustment
• Removable and reusable with a SharkBite disconnect tool

Compatibility

Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe in 3/4-inch diameter. Designed as an OEM-style push-to-connect fitting for use in residential and light commercial potable water systems.

Installation Notes

Installation is performed by licensed plumbers or qualified tradespeople following local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before cutting or joining pipe. Ensure pipe ends are cut square, deburred, and clean before insertion. Use a SharkBite disconnect clip or disconnect tool for removal — do not attempt to pull the fitting free without depressing the collet.

Technical Specifications

• Pipe Size: 3/4 inches x 3/4 inches
• Angle: 90 degrees
• Pressure Rating: 250 psi
• Retainer Material: Stainless Steel
• Body Material: Brass
• Connection Type: Push-to-Connect
• Quantity per Pack: 4
• Weight: 1.022 pounds
• UPC: 00697285057272

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR256A4
