Rwc UR24984A Sharkbite Max Push-to-connect Stop Tee

Product Description

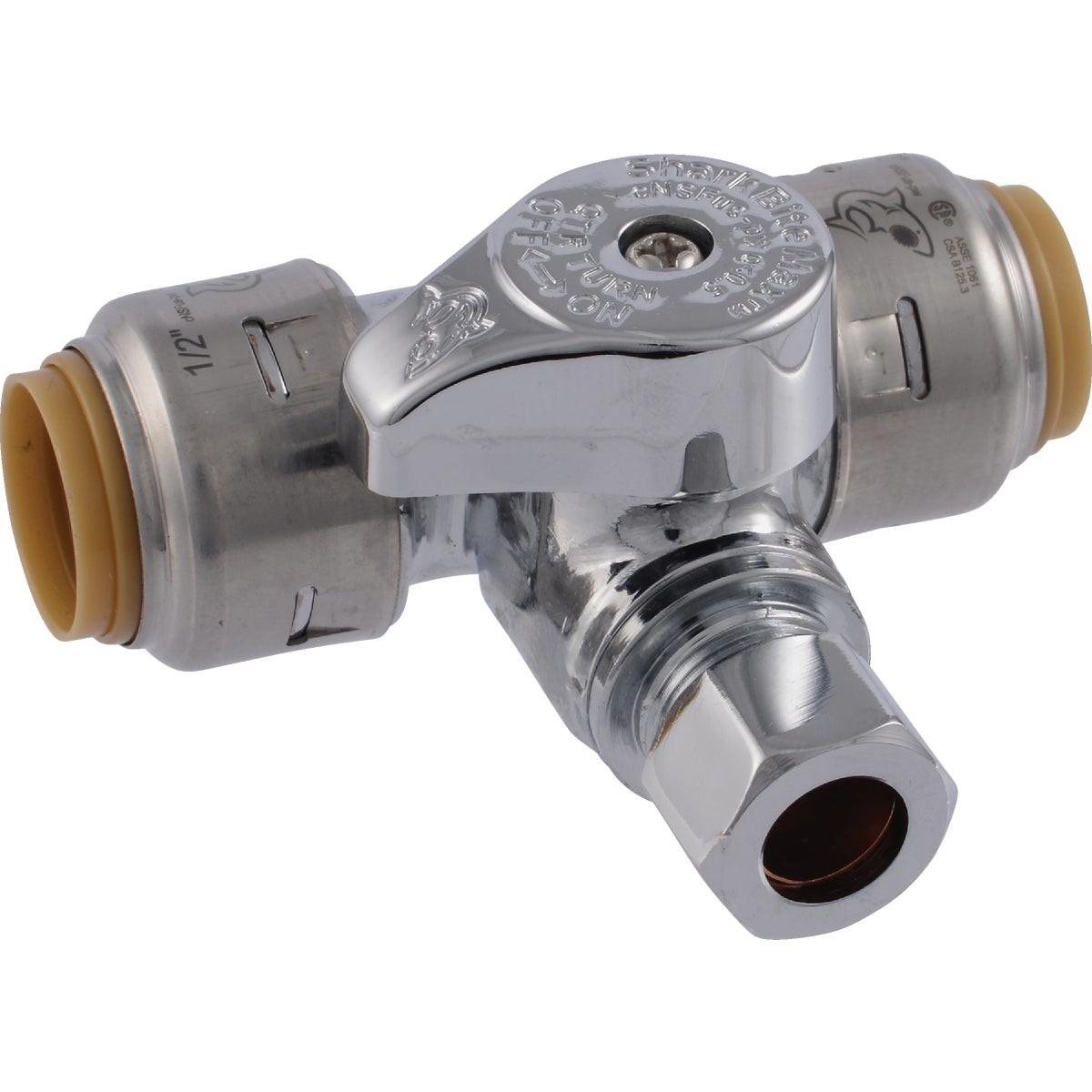

The RWC UR24984A is a SharkBite Max push-to-connect stop tee designed for fast, tool-free pipe connections in residential and light commercial plumbing systems. This tee transitions between 1/2-inch, 1/2-inch, and 3/8-inch pipe connections using a stainless-steel retainer mechanism that delivers a 250 psi pressure rating. The redesigned body reduces insertion effort compared to first-generation SharkBite fittings and eliminates the need for a PEX tube liner. No soldering, clamps, glue, or special tools are required. Licensed plumbers and experienced DIYers install this fitting in supply line and shutoff valve applications where quick, reliable connections are the priority.

This stop tee is suited for residential water supply systems where multiple pipe sizes converge at a shutoff or branch point. It is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe, making it a versatile choice for retrofit and new construction work. The fitting can be rotated after installation to ease alignment in tight spaces. When a disconnect tool is used, the fitting can be removed and reused, which is useful during rough-in adjustments or fixture replacements.

Key Features

• 250 psi pressure rating with a stainless-steel retainer for added strength and durability
• Reduced insertion effort compared to first-generation SharkBite push-to-connect products
• No PEX tube liner required
• No soldering, clamps, unions, glue, or special tools needed for installation
• Rotatable after installation for quick alignment adjustments
• Removable and reusable with a standard SharkBite disconnect tool

Compatibility

Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe. Fits 1/2-inch by 1/2-inch by 3/8-inch pipe configurations as a stop tee in water supply applications.

Installation Notes

This fitting is installed by licensed plumbers or qualified tradespeople working on potable water supply systems. Shut off the water supply and relieve line pressure before installation. Ensure pipe ends are cut cleanly and deburred before insertion to achieve a proper seal. Follow applicable local plumbing codes and IPC requirements for push-to-connect fittings in your jurisdiction.

Technical Specifications

• Connection Type: Push-to-Connect
• Inlet Size: 1/2 inches
• Outlet Sizes: 1/2 inches x 3/8 inches
• Pressure Rating: 250 psi
• Compatible Pipe Types: PEX, Copper, CPVC, PE-RT, HDPE
• Retainer Material: Stainless Steel
• Weight: 0.394 pounds
• Sold As: Each
• UPC: 00697285069817

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR24984A
