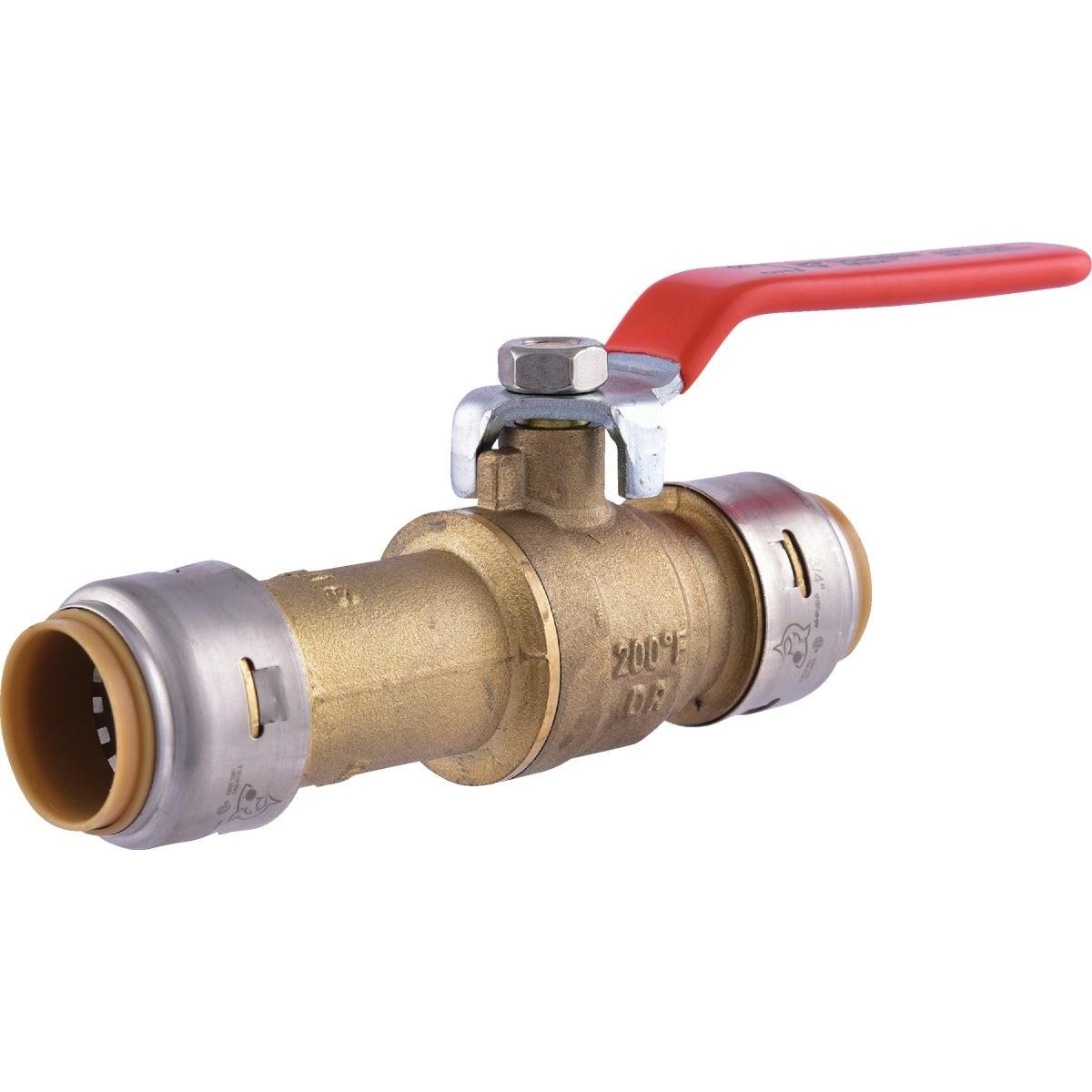

Rwc UR24736 Sharkbite 3/4 in Brass Push-fit Slip Ball Valve

Product Description

The RWC UR24736 is a 3/4-inch forged brass push-fit slip ball valve designed for fast, tool-free plumbing repairs on rigid copper or CPVC pipe systems. The slip feature allows up to 2 inches of existing pipe to be removed from a line and reconnected without soldering or clamps. Using the disconnect tool, the fitting slides back along the pipe to bridge the gap, then locks into place with SharkBite push-to-connect technology. This valve is well-suited for emergency repairs such as freeze damage, where fast shutoff and pipe restoration are critical. Licensed plumbers and experienced service techs install this fitting in residential and light commercial water supply systems.

The UR24736 is built for situations where space is limited or solder work is impractical. Its push-to-connect design reduces installation time and lowers the chance of errors compared to traditional sweat fittings. The integral ball valve provides a full shutoff once the fitting is seated. It is a practical stock item for service trucks handling freeze repairs, pinhole leaks, and pipe-damage calls. Compatible with rigid copper and CPVC pipe in potable water applications. The fitting carries IGC 157-2010 approval, confirming it meets established standards for push-fit plumbing connections.

Key Features

• Slip design bridges up to 2 inches of removed or damaged pipe without soldering
• SharkBite push-to-connect system seats and locks without threading, crimping, or gluing
• Forged brass construction for durability in potable water service
• Integrated ball valve allows full flow shutoff once installed
• IGC 157-2010 approved push-fit connection
• Compact form factor suited for tight or confined installation spaces

Compatibility

Designed for use with 3/4-inch rigid copper or CPVC pipe in potable water supply systems. Requires the SharkBite disconnect tool to activate the slip feature during installation.

Installation Notes

Shut off the water supply and relieve line pressure before cutting into any existing pipe. Pipe ends must be clean, deburred, and cut square before inserting into the SharkBite fitting to ensure a proper seal. The disconnect tool is required to slide the fitting into the slip position; do not force the fitting by hand without it. Installation should comply with applicable local plumbing codes and IPC guidelines for push-fit fittings in potable water systems.

Technical Specifications

• Pipe Size: 3/4 inch
• Material: Forged Brass
• Connection Type: Push-Fit (SharkBite)
• Slip Range: 2 inches
• Compatible Pipe Types: Rigid Copper, CPVC
• Certification: IGC 157-2010
• Weight: 0.8 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR24736
