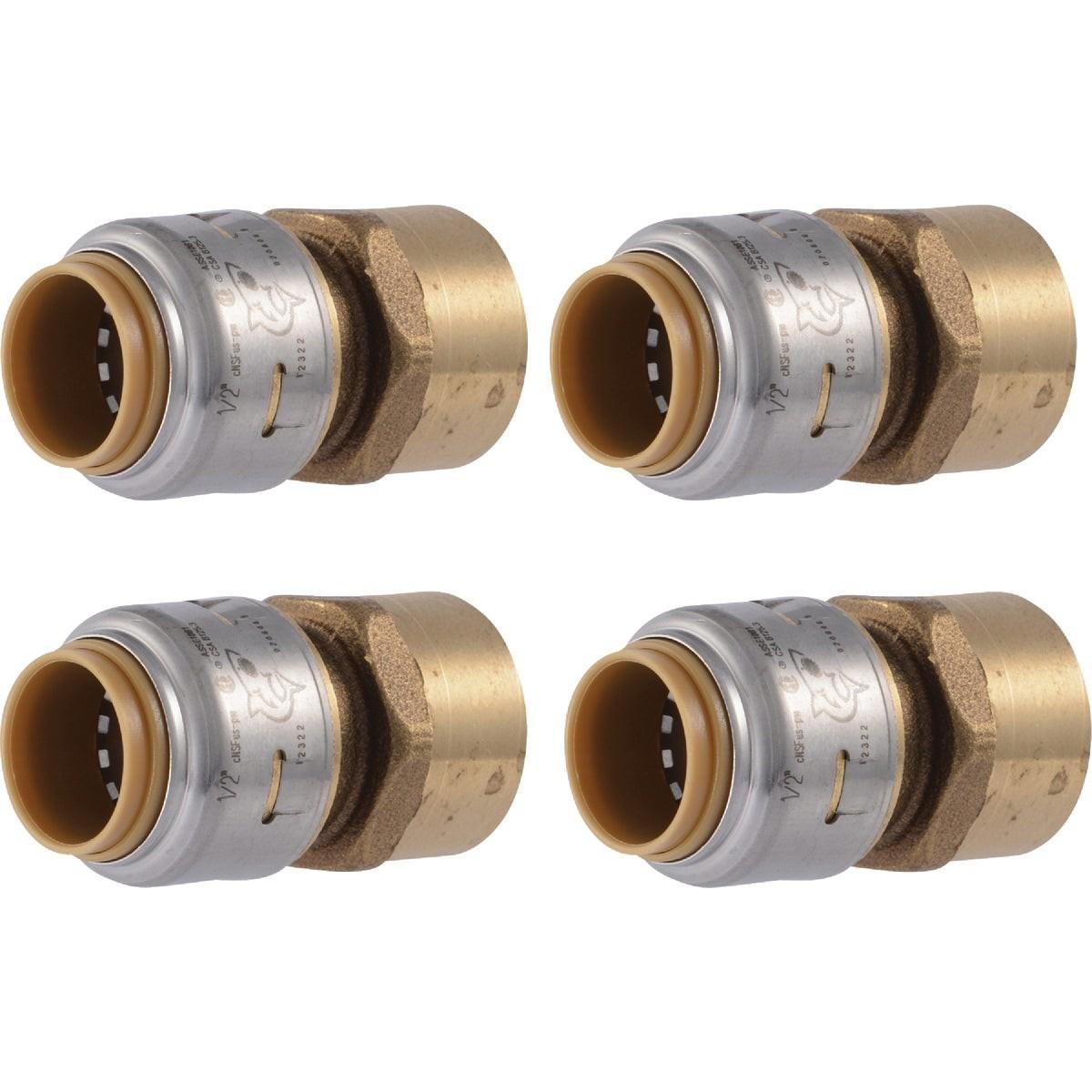

Rwc UR072A4 Brass Push-to-connect Female Adapter 4-pack

Product Description

The RWC UR072A4 is a 1/2-inch by 1/2-inch female NPT straight push-to-connect adapter made from one-piece DZR brass. It joins copper, PEX, or CPVC pipe to a female iron pipe thread connection without solder, glue, or specialty tools. The fitting is rated for up to 200 degrees F and 200 psi, making it suitable for both hot and cold domestic water lines. Each fitting is removable using a standard disconnect clip and is fully reusable. This listing includes a pack of four individually bagged adapters. Lead content on wetted surfaces does not exceed 0.25 percent weighted average, meeting current federal safe drinking water requirements.

This adapter is used in residential and light commercial plumbing applications where a quick, code-compliant transition from copper, PEX, or CPVC pipe to a female threaded fitting is needed. Common scenarios include connecting supply lines to valves, fixtures, or manifolds. The push-to-connect design speeds up rough-in and repair work by eliminating open-flame soldering or solvent cementing. Fittings can be buried underground or installed behind drywall once the connection is confirmed leak-free.

Key Features

• Push-to-connect installation — no solder, glue, unions, or specialty tools required
• Compatible with copper, PEX, and CPVC pipe
• Rated at 200 degrees F and 200 psi
• Removable and reusable with a standard disconnect clip
• One-piece DZR brass construction — suitable for burial and concealed installations
• Low-lead compliant — 0.25 percent or less weighted average lead content on wetted surfaces
• UPC, IAPMO, and NSF-61 certified

Compatibility

Compatible with 1/2-inch copper, PEX, and CPVC pipe. Connects to 1/2-inch female iron pipe thread (FNPT) fittings, valves, and fixtures.

Installation Notes

Installation is performed by licensed plumbers or qualified tradespeople. Shut off the water supply and relieve line pressure before making or breaking any connection. Ensure pipe ends are cut square, deburred, and clean before inserting into the fitting. To disconnect, use a push-to-connect disconnect clip — do not attempt to pull the fitting free without releasing the collet.

Technical Specifications

• Connection Type: Push-to-connect x 1/2-inch FNPT
• Pipe Size: 1/2 inch
• Pipe Compatibility: Copper, PEX, CPVC
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees F
• Material: One-piece DZR brass
• Lead Content: 0.25 percent or less weighted average on wetted surfaces
• Certifications: UPC, IAPMO, NSF-61
• Quantity: 4-pack
• Package Weight: 0.442 pounds

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR072A4
