Rwc UR016A 3/4 Inch Push-to-connect Brass Coupling

Product Description

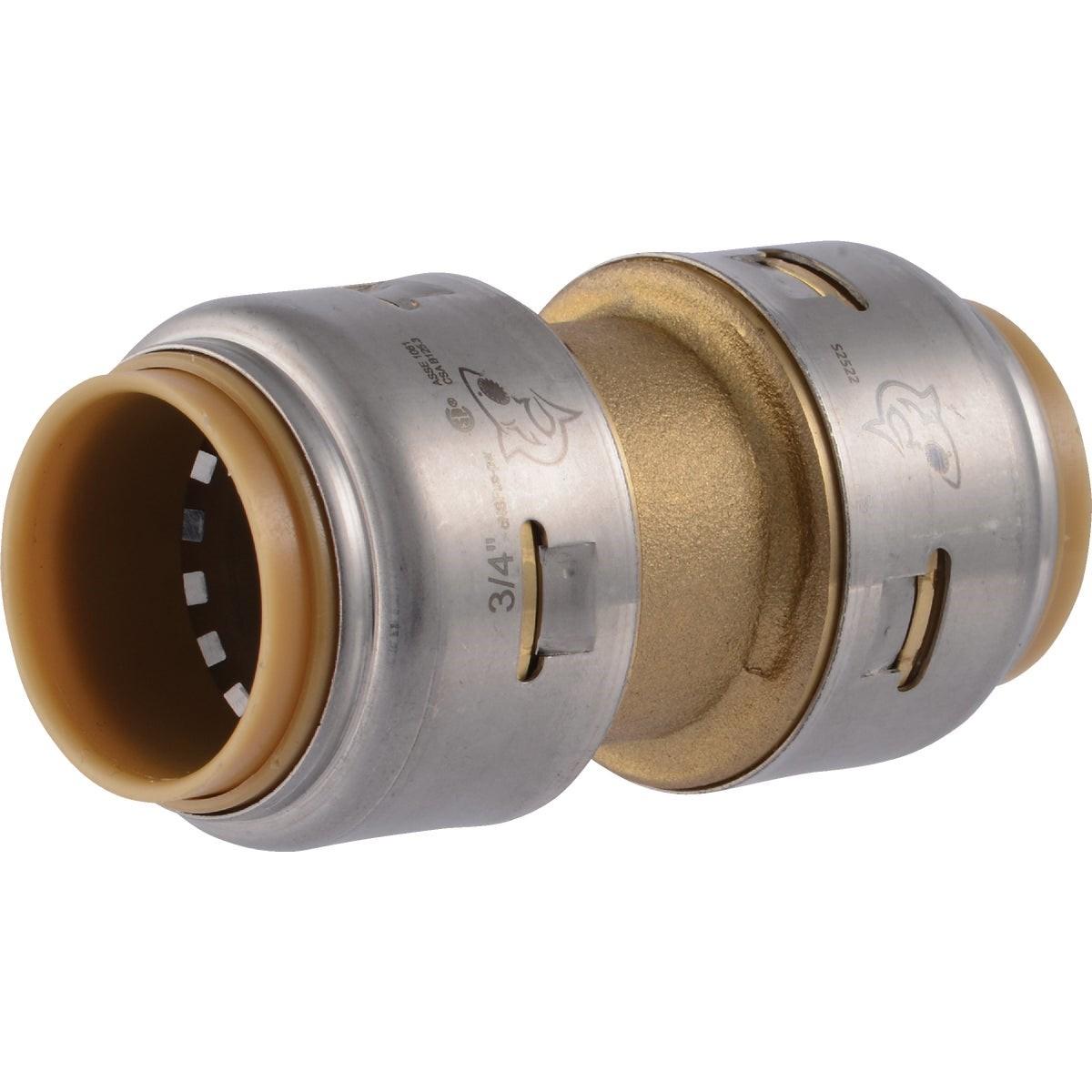

The RWC UR016A is a SharkBite Max 3/4 inch push-to-connect straight brass coupling designed for fast, tool-free pipe connections in residential and commercial plumbing systems. The fitting uses a stainless-steel retainer and a re-engineered body that reduces insertion effort compared to first-generation SharkBite fittings while delivering a 250 psi pressure rating. No soldering, clamps, unions, glue, or special tools are required. The coupling weighs 0.19 pounds and is sold individually. Licensed plumbers and experienced plumbing contractors are the typical installers, though the tool-free design makes it accessible for qualified DIYers as well.

The UR016A is suited for both residential and light commercial plumbing applications where a permanent or adjustable straight coupling is needed. It connects 3/4 inch PEX, copper, CPVC, PE-RT, and HDPE pipe without requiring a PEX tube liner. The fitting can be rotated after installation for quick alignment adjustments. When a disconnect tool is used, the fitting can be removed and reused, making it a practical choice for retrofit work, repairs, and valve replacements where access is limited.

Key Features

• 250 psi pressure rating with stainless-steel retainer for added strength and durability
• Reduced insertion effort compared to first-generation SharkBite push-to-connect fittings
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe — no PEX tube liner required
• No soldering, clamps, unions, glue, or special tools needed for installation
• Fitting rotates after installation for quick positional adjustments
• Removable and reusable with a standard SharkBite disconnect tool

Compatibility

Designed for use with 3/4 inch PEX, copper, CPVC, PE-RT, and HDPE pipe. Compatible with the SharkBite Max push-to-connect system.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson. Shut off water supply and depressurize the line before making any connections. Ensure pipe ends are cut cleanly and deburred before inserting into the fitting. Use a genuine SharkBite disconnect clip or disconnect tool to remove the fitting without damaging the pipe or retainer.

Technical Specifications

• Connection Size: 3/4 inch
• Connection Type: Push-to-Connect
• Pressure Rating: 250 psi
• Retainer Material: Stainless Steel
• Body Material: Brass
• Weight: 0.19 pounds
• Sold As: Each
• UPC: 00697285036277

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR016A
