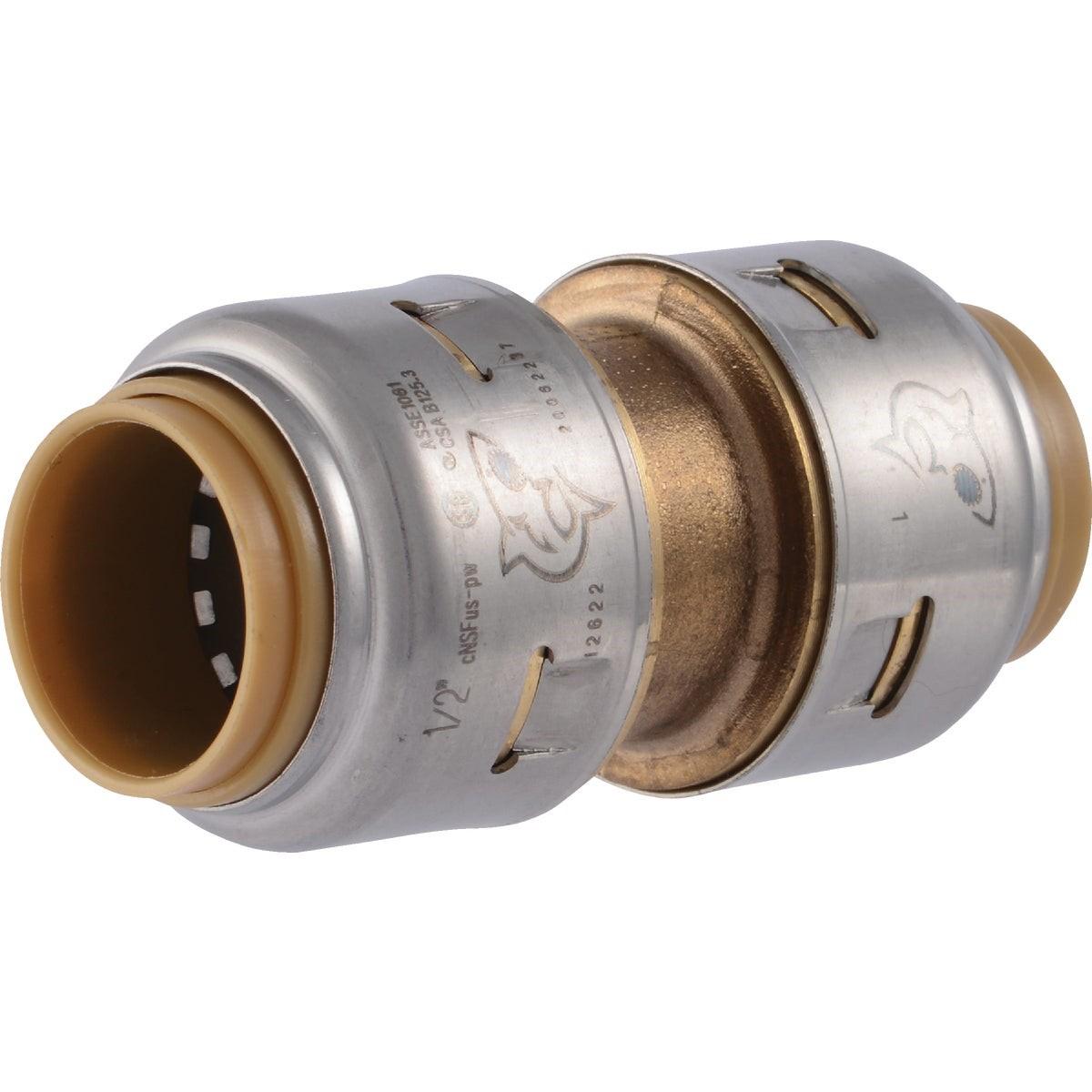

Rwc UR008A 1/2 in Push-to-connect Brass Coupling

Product Description

The RWC UR008A is a SharkBite Max push-to-connect straight coupling designed for fast, tool-free pipe connections in residential and light commercial plumbing systems. Built with a brass body and a redesigned stainless-steel retainer, the UR008A delivers a 250 psi pressure rating and requires no soldering, clamps, glue, or special tools. The updated body geometry reduces insertion effort compared to first-generation SharkBite fittings and eliminates the need for a PEX tube liner. Licensed plumbers and experienced DIYers install this fitting wherever a straight coupling is needed on compatible pipe types.

The UR008A is suited for use in water supply lines, repair work, and retrofit installations where torch work is impractical or not permitted. It connects PEX, copper, CPVC, PE-RT, and HDPE pipe in a single fitting size. The 1/2 inch connection size covers the most common residential supply line diameter. After installation, the fitting can be rotated for alignment adjustments. When removal is needed, a standard SharkBite disconnect tool releases the fitting quickly, allowing it to be repositioned or reused.

Key Features

• 250 psi pressure rating for reliable performance in standard water supply applications
• Redesigned stainless-steel retainer provides added grip strength and durability
• Reduced insertion effort compared to first-generation SharkBite push-to-connect fittings
• No PEX tube liner required
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe
• Fitting rotates after installation and can be removed and reused with a disconnect tool

Compatibility

Designed for use with 1/2 inch PEX, copper, CPVC, PE-RT, and HDPE pipe. No additional adapters or tube liners are required for these pipe types.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson. Shut off the water supply and relieve system pressure before cutting into any existing line. Ensure pipe ends are cut square, deburred, and clean before insertion into the fitting. No soldering, crimping tools, or thread sealant are required; follow local plumbing code and manufacturer guidelines for approved applications and pressure ratings.

Technical Specifications

• Connection Size: 1/2 inch
• Connection Type: Push-to-Connect
• Configuration: Straight Coupling
• Body Material: Brass
• Retainer Material: Stainless Steel
• Pressure Rating: 250 psi
• Compatible Pipe Types: PEX, Copper, CPVC, PE-RT, HDPE
• Weight: 0.109 pounds
• UPC: 00697285035249

Standard Information

• Brand: RWC
• Manufacturer Part Number: UR008A
