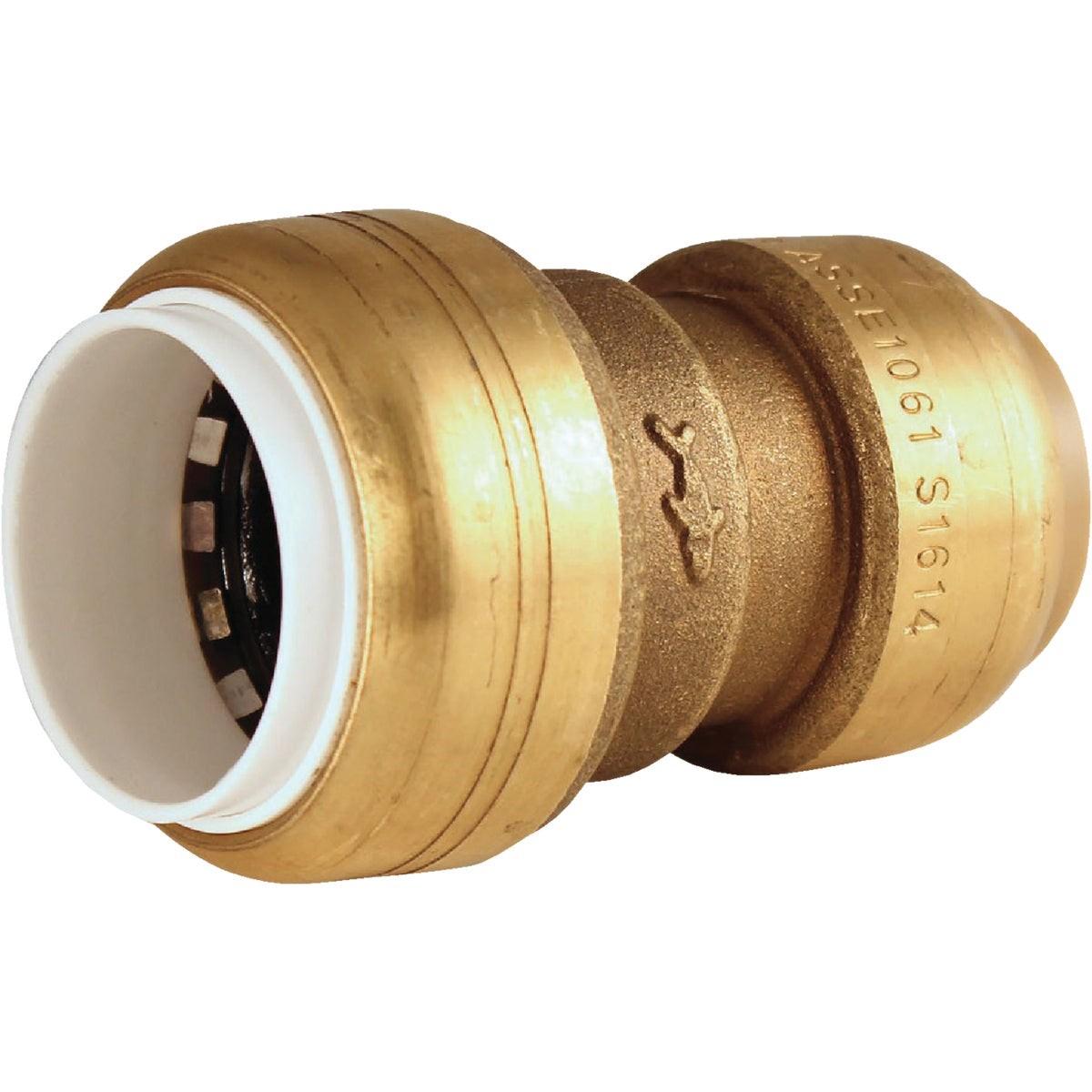

Rwc UIP4008A Sharkbite 1/2 in Cts X Pvc Push-connect Coupling

Product Description

The RWC UIP4008A is a 1/2-inch CTS x PVC brass push-to-connect transition coupling from the SharkBite product line. It is designed to transition from iron pipe size PVC pipe to copper tube size copper, PEX, CPVC, or PE-RT tubing without soldering, glue, unions, or special tools. The white collar accommodates Schedule 40, 80, and 120 PVC pipe as well as Schedule 40 and Schedule 80 CPVC. The SharkBite connector end accepts PEX, CPVC, or PE-RT. A disconnect clip is included, allowing the fitting to be released from the pipe when installation flexibility is needed. The fitting can also be rotated on the pipe after installation, which is useful when working in confined spaces.

This coupling is suited for potable water distribution systems in both residential and light commercial plumbing applications. The corrosion-resistant brass construction supports long service life in demanding environments. It is certified for underground installations and behind-the-wall applications where access panels are not present, making it appropriate for new construction as well as renovation and repair work. Licensed plumbers and experienced pipefitters will find this fitting useful when connecting dissimilar pipe materials during system upgrades or extensions.

Key Features

• Push-to-connect design requires no soldering, glue, unions, or specialized tools
• White collar fits Schedule 40, 80, and 120 PVC and Schedule 40 and 80 CPVC pipe
• SharkBite end accepts PEX, CPVC, or PE-RT tubing
• Fitting rotates on pipe after installation for easier alignment in tight spaces
• Certified for underground and behind-the-wall installations without access panels
• Includes disconnect clip for removal and reinstallation flexibility

Compatibility

Designed for use with 1/2-inch CTS copper, PEX, CPVC, and PE-RT tubing on one end and iron pipe size Schedule 40, 80, or 120 PVC or Schedule 40 and 80 CPVC on the other end. Suitable for potable water distribution systems meeting UPC, IPC, and cUPC requirements.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes referencing IPC or UPC standards. Shut off the water supply and depressurize the line before installing or removing the fitting. Pipe ends must be cut cleanly and squarely and deburred before insertion to ensure a proper seal. Use the included disconnect clip with a SharkBite disconnect tong or equivalent tool when removing the fitting from the pipe.

Technical Specifications

• Connection Size: 1/2 inch
• Connection Type: CTS x PVC push-to-connect transition
• Compatible Pipe Schedules (PVC/CPVC): Schedule 40, Schedule 80, Schedule 120 PVC; Schedule 40 and Schedule 80 CPVC
• Compatible Tubing Types: Copper, PEX, CPVC, PE-RT
• Material: Brass
• Weight: 0.2 pounds
• Certifications: NSF/ANSI 61, NSF/ANSI 14, NSF/ANSI 372, IAPMO listed, UPC, IPC, cUPC
• Application: Potable water distribution, underground, behind-the-wall

Standard Information

• Brand: RWC
• Manufacturer Part Number: UIP4008A
