Rwc UIP371A Sharkbite 3/4 in Cts X Pvc Slip Tee

Product Description

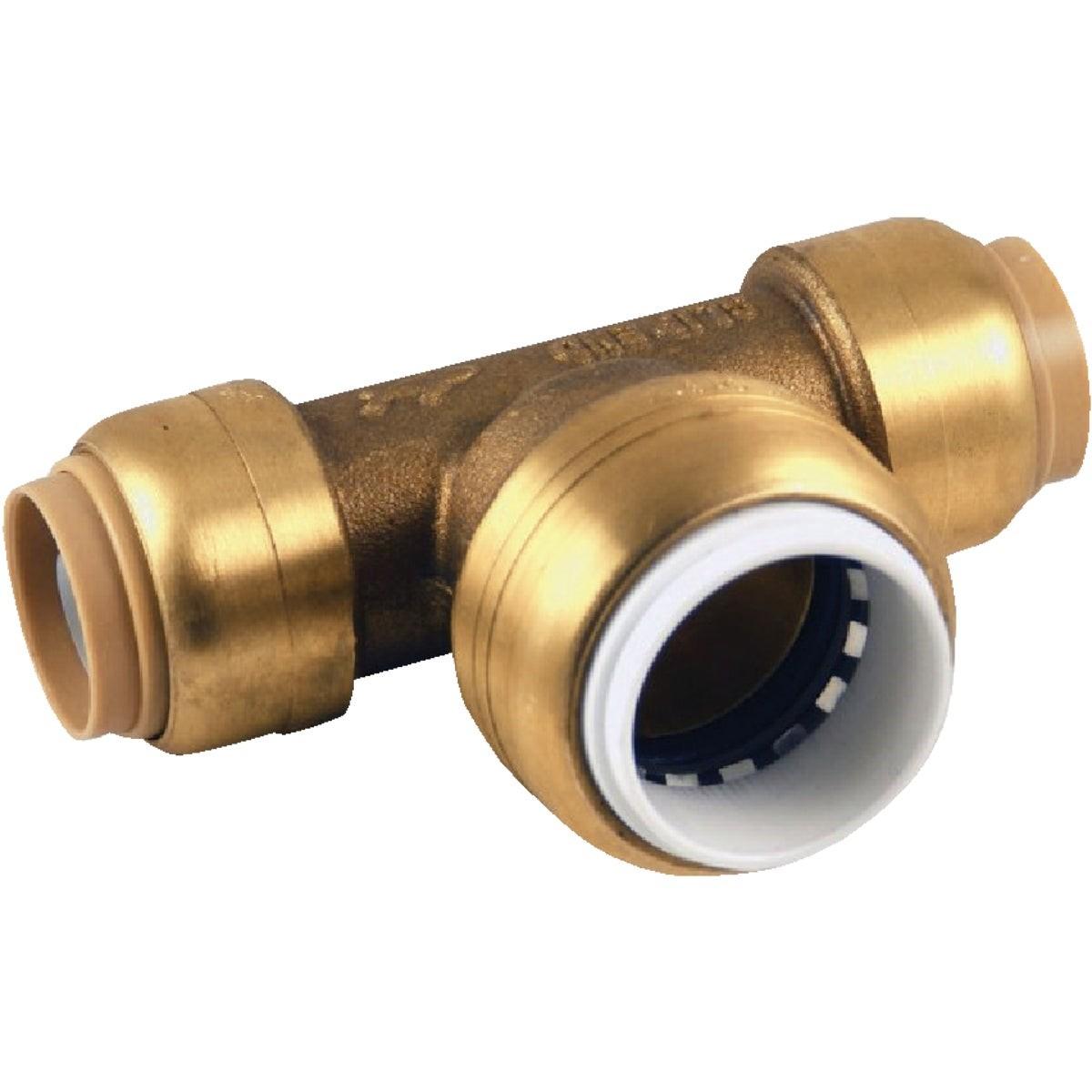

The RWC UIP371A is a SharkBite push-to-connect PVC transition slip tee designed to add a branch line into an existing plumbing system while converting from CTS pipe to PVC pipe. The fitting uses a push-to-connect mechanism on the two CTS ends and a slip connection on the PVC outlet, requiring no soldering, glue, or special tools. A tan collar on each CTS end accepts copper, PEX, CPVC, or PE-RT pipe, while the white collar center connection accepts Schedule 40, 80, or 120 PVC as well as IPS CPVC Schedule 40 and 80 pipe. Weighing 0.477 pounds, this fitting is sold as a single unit. Licensed plumbers and experienced pipefitters are the primary installers for this type of transition fitting.

This fitting is suited for residential and light commercial potable water distribution where an existing copper or CPVC line must be branched and transitioned to PVC. The slip feature is especially useful when cutting into an existing run of copper or CPVC pipe, allowing the installer to slip the fitting onto the cut pipe ends and complete the PVC branch without disturbing surrounding pipe supports. It is certified for underground installation and behind-wall applications without access panels, making it viable for rough-in work as well as retrofit service calls.

Key Features

• Push-to-connect CTS ends accept copper, PEX, CPVC, or PE-RT pipe with no soldering or glue
• Center slip outlet accepts Schedule 40, 80, or 120 PVC and IPS CPVC Schedule 40 and 80
• Tan collar CTS ends and white collar PVC center clearly identify connection type at each port
• Fitting rotates on pipe after installation to ease work in confined spaces
• Disconnect clip included for releasing fitting from pipe during installation or adjustment
• Certified for underground and behind-wall applications without access panels
• Listed by IAPMO and certified to NSF/ANSI 61, NSF/ANSI 14, and NSF/ANSI 372; meets UPC, IPC, and cUPC requirements

Compatibility

Compatible with copper, PEX, CPVC, and PE-RT pipe on the CTS ends. The PVC slip outlet accepts Schedule 40, 80, and 120 PVC pipe and IPS CPVC Schedule 40 and 80 pipe. Can only be used on copper, CPVC, and PVC (Schedule 40, 80, and 120) pipe systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC or UPC code requirements. Shut off the water supply and depressurize the line before cutting into existing pipe. Use the included PVC Depth Gauge to confirm proper insertion depth on the PVC slip end, and use the included Disconnect Clip when repositioning the fitting during rough-in. Do not use this fitting on pipe types or schedules not listed in the compatibility data.

Technical Specifications

• CTS End Size: 3/4 inches
• PVC Slip Outlet Size: 3/4 inches
• Compatible PVC Schedules: Schedule 40, Schedule 80, Schedule 120
• Connection Type: Push-to-connect (CTS ends), Slip (PVC outlet)
• Weight: 0.477 pounds
• Certifications: IAPMO listed, NSF/ANSI 61, NSF/ANSI 14, NSF/ANSI 372, UPC, IPC, cUPC
• Application: Potable water distribution, underground, behind-wall without access panel
• UOM: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UIP371A
