Rwc UIP140A Sharkbite 1 in Pvc X Mnpt Connector

Product Description

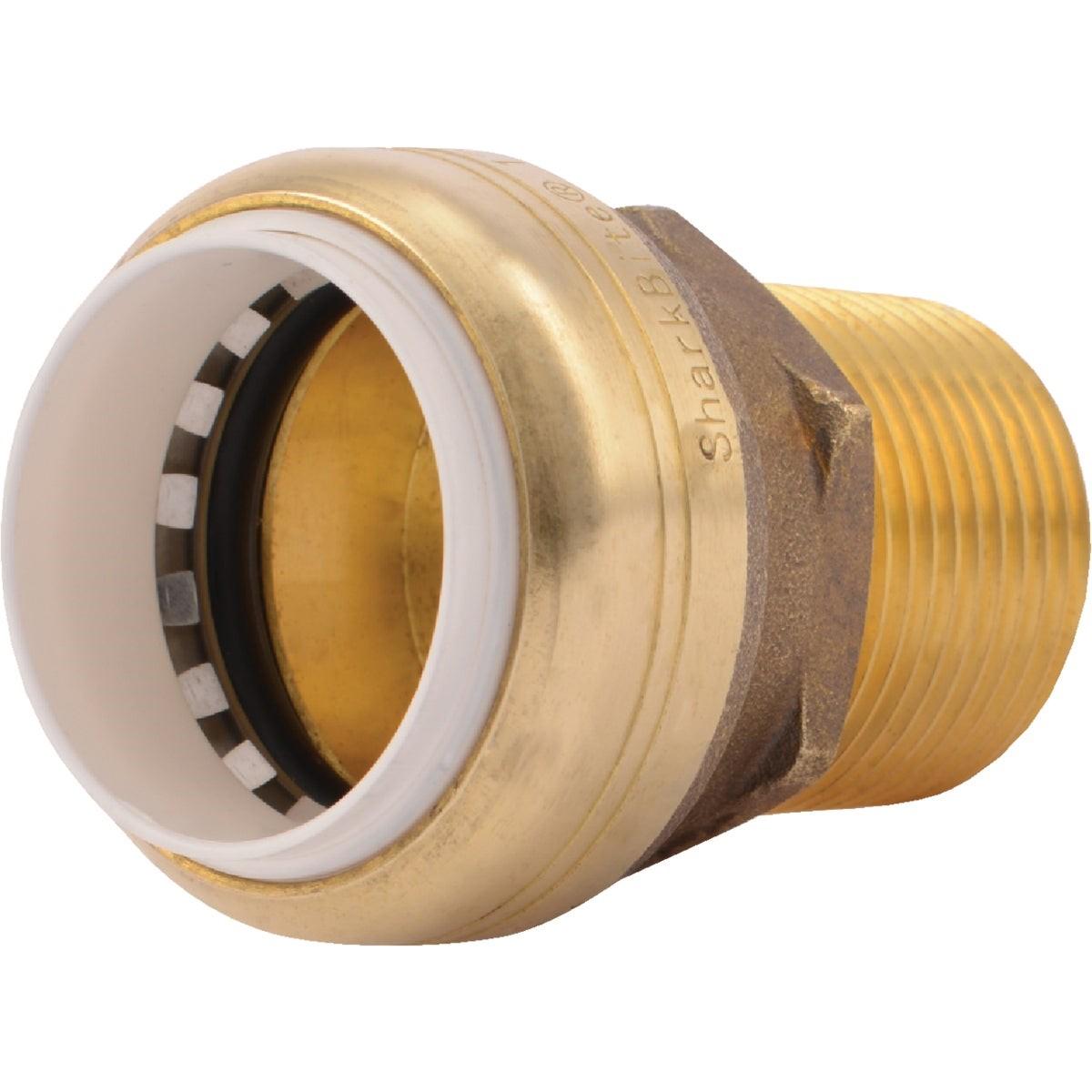

The RWC UIP140A is a push-fit transition connector designed to join a push-to-connect fitting to a male NPT threaded adapter on PVC pipe. The fitting features a white collar compatible with Schedule 40, 80, and 120 PVC pipe as well as Schedule 40 and 80 CPVC. The SharkBite push-to-connect design eliminates the need for soldering, glue, unions, or specialized tools, making installation fast and straightforward. Once seated on the pipe, the fitting can be rotated freely, which is a practical advantage when working in confined or tight spaces. A disconnect clip is included, allowing the fitting to be removed from the pipe when needed.

This connector is intended for potable water distribution systems in residential and commercial plumbing applications. Its corrosion-resistant construction supports long service life in both above-ground and in-wall installations. The fitting is certified for underground and behind-the-wall use without requiring access panels, making it well suited for new construction rough-in work and retrofit plumbing repairs where access is limited. Licensed plumbers and experienced trade professionals are the primary installers for this type of fitting.

Key Features

• Push-to-connect design requires no soldering, glue, or special tools
• White collar fits Schedule 40, 80, and 120 PVC and Schedule 40 and 80 CPVC
• Fitting rotates on pipe after installation for easier alignment in tight spaces
• Certified for underground and behind-the-wall applications without access panels
• Disconnect clip included for installation flexibility and fitting removal
• Corrosion-resistant construction for potable water distribution service

Compatibility

Compatible with Schedule 40, 80, and 120 PVC pipe and Schedule 40 and 80 CPVC pipe. Listed by IAPMO and certified to NSF/ANSI 61, NSF/ANSI 14, and NSF/ANSI 372. Meets UPC, IPC, and cUPC requirements.

Installation Notes

Installation is performed by a licensed plumber in accordance with local plumbing codes and IPC or UPC requirements. Before installing or removing the fitting, shut off the water supply and relieve system pressure. Ensure the pipe end is cut cleanly and squarely with no burrs or debris before inserting into the push-fit connector. To disconnect, use the included disconnect clip to release the fitting from the pipe without damaging the pipe or fitting body.

Technical Specifications

• Pipe Size: 1 inch
• Connection Type: PVC Push-Fit x Male NPT
• Compatible Pipe Schedules: Schedule 40, 80, 120 PVC; Schedule 40, 80 CPVC
• Application: Potable water distribution
• Certifications: IAPMO listed; NSF/ANSI 61, NSF/ANSI 14, NSF/ANSI 372; UPC, IPC, cUPC
• Weight: 0.427 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UIP140A
