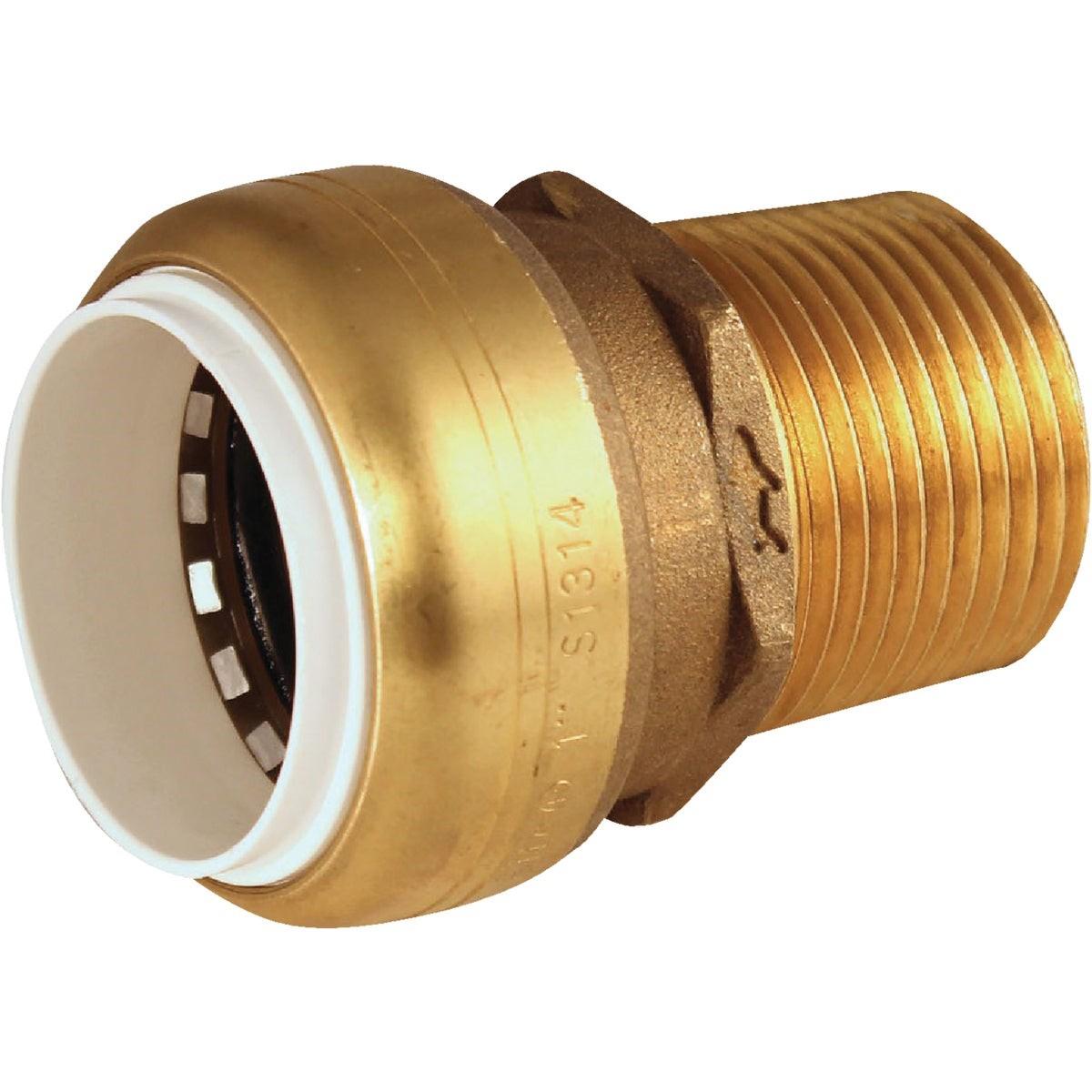

Rwc UIP120A Sharkbite 1/2 in Pvc X Mnpt Connector

Product Description

The RWC UIP120A is a push-to-connect transition fitting designed to join PVC pipe to a male NPT threaded connection without soldering, glue, unions, or special tools. The white collar accepts Schedule 40, 80, and 120 PVC pipe as well as Schedule 40 and 80 CPVC, making it a versatile choice for plumbing transitions. Using the SharkBite push-fit mechanism, the fitting seats quickly and securely, then can be rotated on the pipe after installation to ease alignment in confined spaces. A disconnect clip is included, allowing the fitting to be removed and repositioned during rough-in or repair work. Licensed plumbers and journeymen plumbers install this fitting in potable water distribution systems.

This fitting is suited for residential and light commercial potable water distribution applications. Its corrosion-resistant construction supports long service life in both above-ground and below-grade installations. The UIP120A is certified for underground and behind-the-wall use without access panels, which simplifies rough-in work in new construction and remodel projects where future access may be limited. It is appropriate for use wherever a PVC pipe run must terminate or transition to a male NPT threaded fitting.

Key Features

• Push-to-connect design requires no soldering, glue, or special tools for installation
• White collar compatible with Schedule 40, 80, and 120 PVC and Schedule 40 and 80 CPVC
• Fitting rotates on pipe after seating to ease alignment in tight spaces
• Certified for underground and behind-the-wall applications without access panels
• Disconnect clip included for removal and repositioning flexibility
• Corrosion-resistant construction for potable water distribution service

Compatibility

Compatible with Schedule 40, 80, and 120 PVC pipe and Schedule 40 and 80 CPVC pipe at 1/2 inch diameter, transitioning to a 1/2 inch male NPT connection. Meets UPC, IPC, and cUPC requirements.

Installation Notes

Installation is performed by a licensed plumber in accordance with local plumbing code and IPC requirements. Shut off the water supply and relieve system pressure before installing or removing any fitting. Pipe ends must be cut square, deburred, and cleaned before insertion into the push-fit collar to ensure a proper seal. Use the included disconnect clip and a SharkBite disconnect tool or equivalent to release the fitting if repositioning is required.

Technical Specifications

• Inlet Connection: 1/2 inch PVC push-to-connect
• Outlet Connection: 1/2 inch MNPT
• Compatible Pipe Schedules: Schedule 40, 80, and 120 PVC; Schedule 40 and 80 CPVC
• Application: Potable water distribution
• Certifications: IAPMO listed; NSF/ANSI 61, NSF/ANSI 14, NSF/ANSI 372 certified; UPC, IPC, cUPC compliant
• Weight: 0.217 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UIP120A
