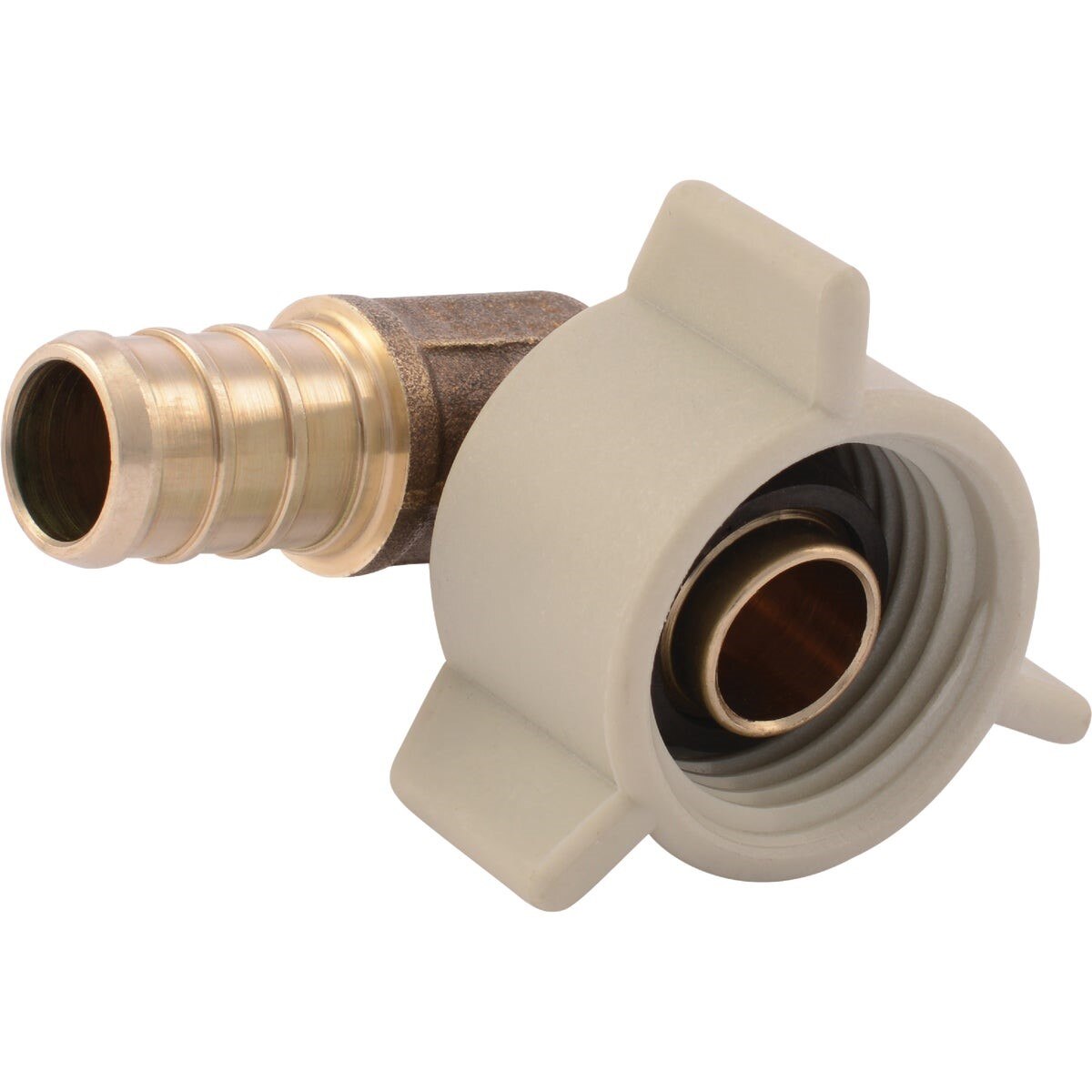

Rwc UC532LFA 1/2 in Barb X Fpt 90 Deg Brass Swivel Pex Elbow

Product Description

The RWC UC532LFA is a 1/2-inch barb by 1/2-inch female pipe thread (FPT) 90-degree brass swivel PEX elbow designed for fast, reliable connections between PEX tubing and female-threaded ports. The swivel design allows the fitting to rotate during installation, reducing stress on the tubing and making it easier to align in tight spaces. Built from brass, this elbow is suitable for potable water distribution and hydronic heating systems. It is sold individually and installed by licensed plumbers or qualified mechanical contractors working on residential or light commercial piping.

This fitting is used where PEX tubing must transition to a threaded female connection at a 90-degree angle. Common applications include domestic hot and cold water distribution lines and in-floor or baseboard hydronic heating circuits. The barb end accepts standard 1/2-inch PEX tubing and is compatible with both stainless steel clamp ring systems and copper crimp ring systems, with clamp rings and crimp rings each sold separately.

Key Features

• 90-degree swivel elbow simplifies alignment in confined installation spaces
• 1/2-inch barb inlet connects directly to standard 1/2-inch PEX tubing
• 1/2-inch FPT outlet threads onto female-threaded ports or valves
• Compatible with stainless steel clamp ring and copper crimp ring systems
• Rated for potable water distribution per NSF/ANSI 61 and NSF 372
• Meets ASTM F1807 standard for PEX barb-type fittings

Compatibility

Compatible with 1/2-inch PEX tubing installed using a stainless steel clamp system or a copper crimp ring system (rings sold separately). Suitable for potable water distribution and hydronic heating applications.

Installation Notes

Installation is performed by a licensed plumber or qualified mechanical contractor. Shut off water supply and depressurize the line before fitting installation. Secure the barb end using an approved clamp ring tool or copper crimp ring tool per the manufacturer and applicable IPC requirements. Do not overtighten the FPT swivel connection; use appropriate thread sealant or PTFE tape on the threaded joint as required by local code.

Technical Specifications

• Inlet Size: 1/2 inches (barb)
• Outlet Size: 1/2 inches FPT
• Angle: 90 degrees
• Material: Brass
• Weight: 0.134 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Sold As: Each
• UPC: 00697285605060

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC532LFA
