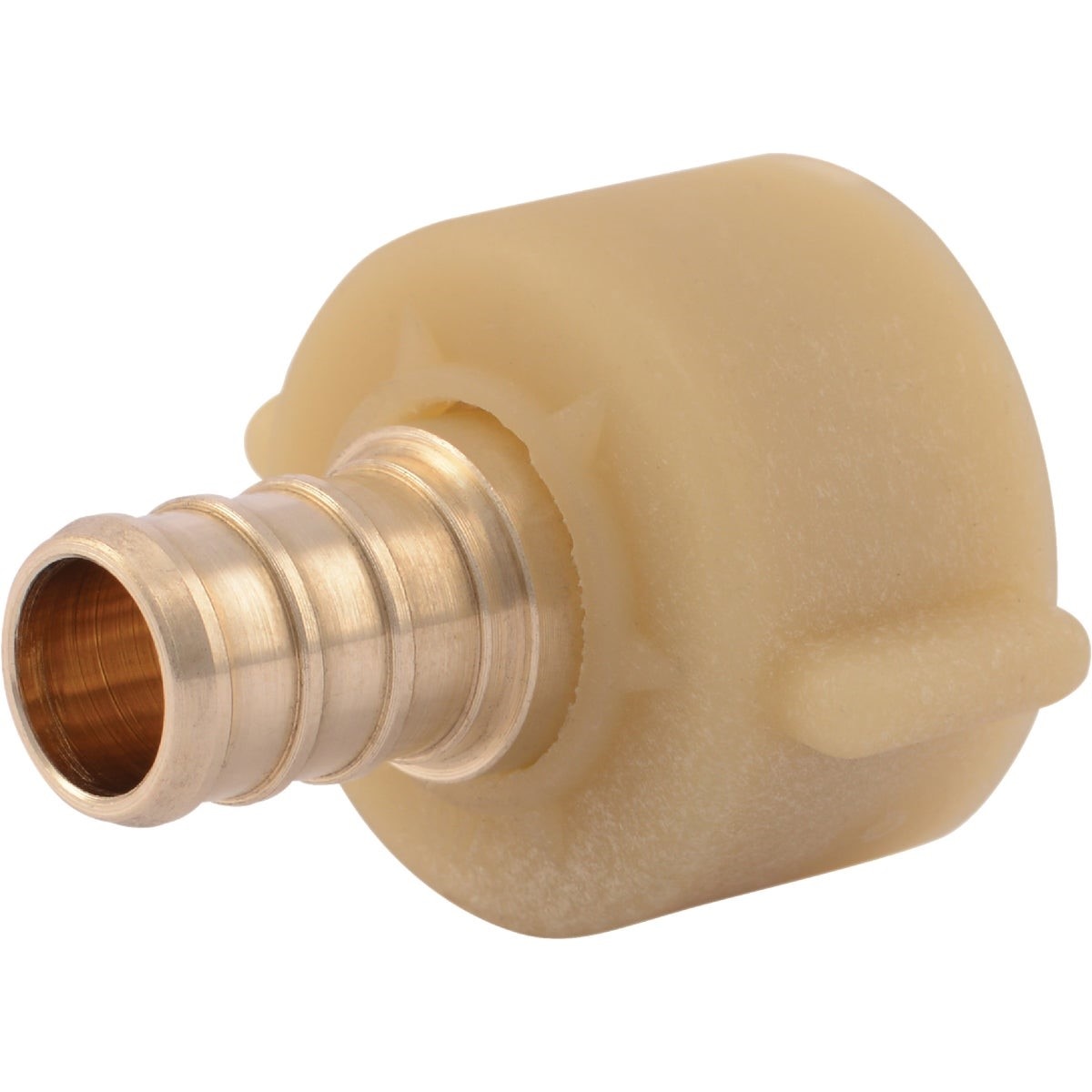

Rwc UC528LFA 1/2 in Crimp X 7/8 in Bct Brass Pex Adapter

Product Description

The RWC UC528LFA is a brass PEX swivel adapter designed to connect PEX tubing to a male threaded connection using a crimp-fit installation method. The fitting features a 1/2 inch crimp-fit end and a 7/8 inch BCT (brass compression thread) swivel end, allowing for a reliable, leak-resistant joint without soldering or special tools beyond a standard crimp tool. Constructed from brass, this adapter meets ASTM F1807 standards and carries NSF/ANSI 61 certification for potable water contact and NSF 372 compliance for lead-free content. It is sold individually and weighs 0.117 pounds.

This adapter is suited for both potable water distribution systems and hydronic heating applications in residential and light commercial settings. It is compatible with both stainless steel clamp ring systems and copper crimp ring systems, giving installers flexibility depending on the tools and system specifications on the job. The BCT swivel end simplifies alignment when connecting to threaded male fittings, reducing the risk of cross-threading during installation. Crimp rings and clamp rings are sold separately.

Key Features

• 1/2 inch crimp-fit inlet compatible with standard PEX crimp ring systems
• 7/8 inch BCT swivel outlet for connection to male threaded fittings
• Brass construction meets ASTM F1807 dimensional standards
• NSF/ANSI 61 certified for potable water distribution
• NSF 372 compliant for lead-free content
• Compatible with both copper crimp ring and stainless steel clamp ring systems

Compatibility

Suitable for use in potable water distribution and hydronic heating applications. Works with both stainless steel clamp systems and copper crimp ring systems. Crimp rings and clamp rings are sold separately.

Installation Notes

Installation is performed by a licensed plumber following applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before making any connections. A calibrated PEX crimp tool is required to properly seat the crimp ring; do not substitute with non-rated tools. Verify that the male threaded fitting is clean and undamaged before threading on the BCT swivel end.

Technical Specifications

• Inlet Size: 1/2 inches crimp fit
• Outlet Size: 7/8 inches BCT swivel
• Material: Brass
• Weight: 0.117 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC528LFA
