Rwc UC514LFA Sharkbite 1/2 in Barb Brass Pex Test Plug

Product Description

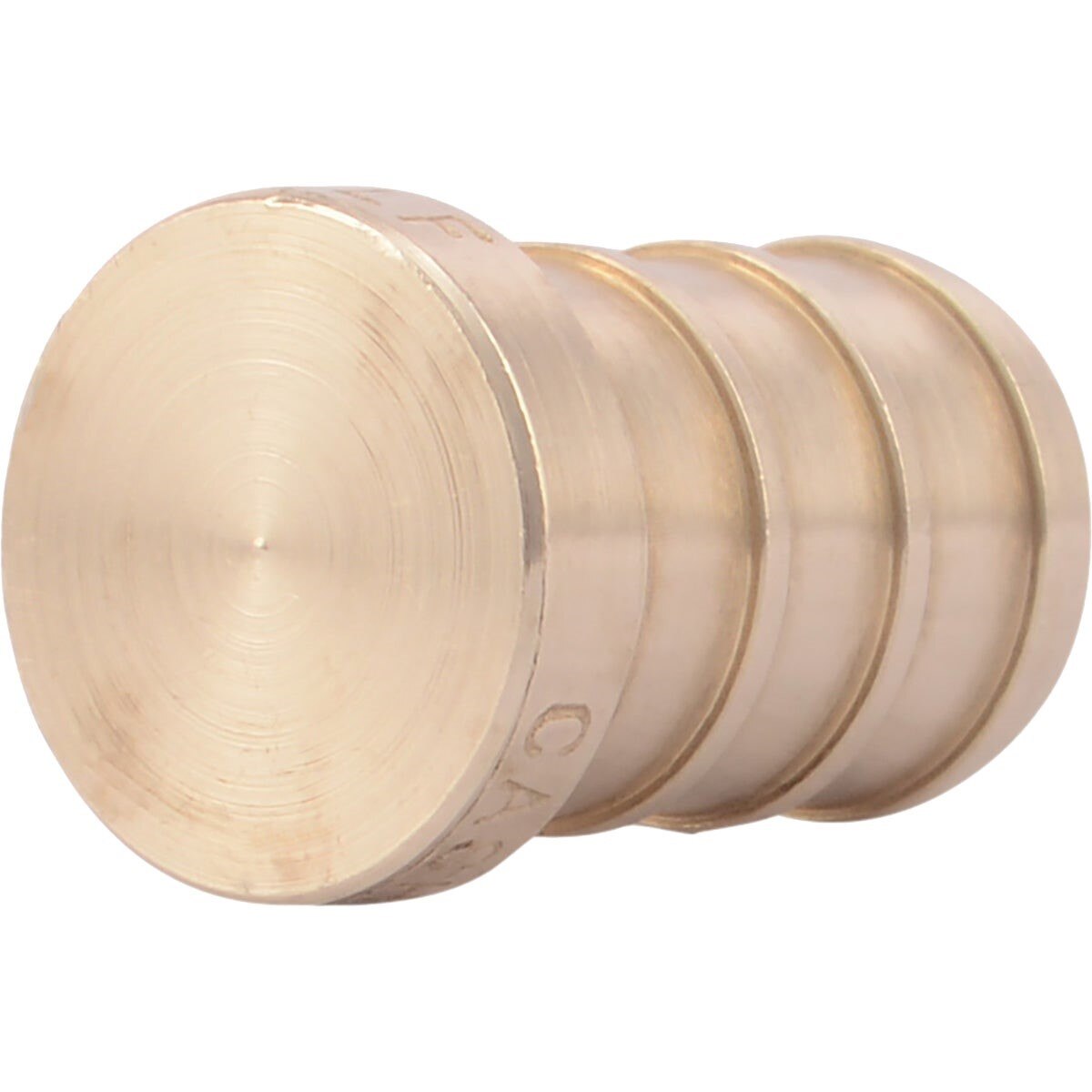

The RWC UC514LFA is a 1/2 inch barb brass PEX test plug designed to cap off an open PEX tubing line during pressure testing or system commissioning. This fitting works with both stainless steel clamp ring systems and copper crimp ring systems, making it a versatile single-item solution for plumbers and pipefitters who need a reliable, low-profile end cap. The brass construction provides solid corrosion resistance in wet environments. It meets ASTM F1807, NSF/ANSI 61, and NSF 372 certifications, confirming its suitability for potable water contact.

The UC514LFA is suited for residential and light commercial applications involving PEX tubing. It is used in potable water distribution systems and hydronic heating installations where a line must be temporarily or permanently capped. The barb connection style allows the fitting to seat into standard 1/2 inch PEX tubing before a crimp ring or clamp ring is applied. Plumbers typically use this plug during rough-in and testing phases to isolate sections of the system before fixtures are connected.

Key Features

• Compatible with both stainless steel clamp ring and copper crimp ring systems
• Certified to ASTM F1807 for PEX barb fittings dimensional and performance standards
• NSF/ANSI 61 certified for potable water system components
• NSF 372 certified for lead-free compliance
• Brass construction for corrosion resistance in water service environments
• 1/2 inch barb sizing fits standard residential PEX tubing

Compatibility

Compatible with potable water distribution and hydronic heating PEX tubing systems using either a stainless steel clamp system or a copper crimp ring system. Clamp rings and crimp rings are each sold separately.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters working on PEX-based water systems. Shut off the water supply and relieve system pressure before working on any open tubing end. Insert the barb fully into the PEX tubing and secure with the appropriate crimp ring or clamp ring tool per the ring manufacturer instructions and applicable plumbing code. Verify the connection is pressure-tested before returning the system to service.

Technical Specifications

• Connection Type: Barb
• Tubing Size: 1/2 inch
• Material: Brass
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Weight: 0.05 pounds
• UPC: 00697285919921

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC514LFA
