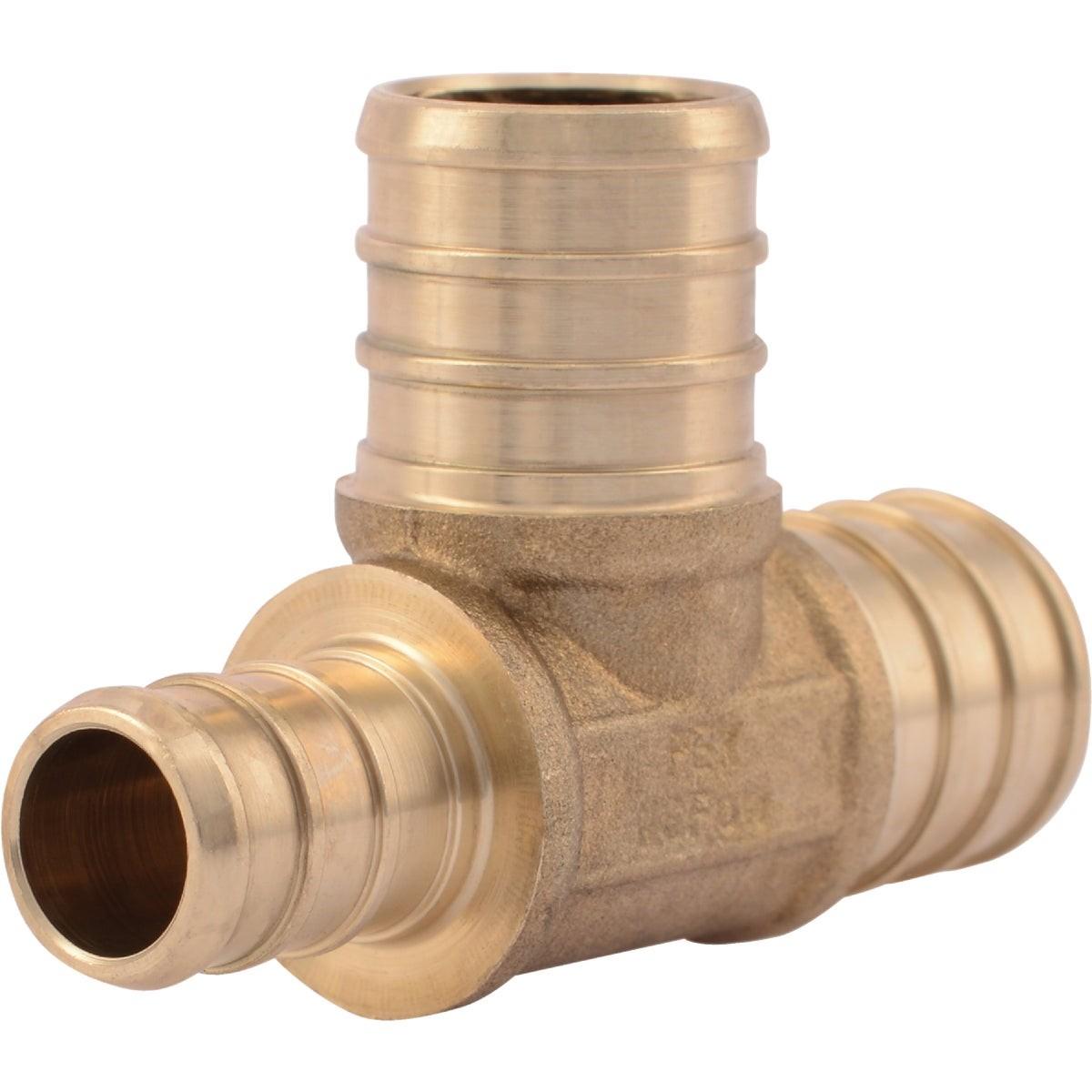

Rwc UC444LFA Sharkbite Pex Barb Reducing Brass Tee

Product Description

The RWC UC444LFA is a PEX barb reducing tee fitting manufactured in brass, designed for use in residential and light commercial plumbing systems. It provides a 3/4 inch by 1/2 inch by 3/4 inch transition that allows pipe-size reduction at a branch point in a PEX distribution system. Licensed plumbers and pipefitters install this fitting in potable water distribution lines and hydronic heating systems. Weighing 0.13 pounds, the UC444LFA meets ASTM F1807 dimensional standards and carries NSF/ANSI 61 certification for contact with drinking water, as well as NSF 372 compliance for lead-free content.

This fitting is suited for residential potable water distribution and hydronic heating applications where a reducing branch connection is required. It is compatible with both stainless steel clamp ring systems and copper crimp ring systems, giving installers flexibility based on the tooling available on the job. Clamp rings and crimp rings are sold separately. The reducing tee configuration handles trunk-to-branch size transitions in a single fitting, eliminating the need for an inline reducer and a separate tee.

Key Features

• 3/4 inch by 1/2 inch by 3/4 inch barb configuration handles pipe-size reduction at the branch in one fitting
• Brass construction provides corrosion resistance in both potable water and hydronic heating service
• Compatible with stainless steel clamp ring and copper crimp ring installation systems
• NSF/ANSI 61 certified for potable water contact
• NSF 372 compliant for lead-free content
• Meets ASTM F1807 dimensional standards for PEX barb fittings

Compatibility

Rated for potable water distribution and hydronic heating applications. Compatible with PEX tubing using stainless steel clamp ring systems or copper crimp ring systems per ASTM F1807. Clamp and crimp tooling and rings are sold separately.

Installation Notes

Installation is performed by a licensed plumber following applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before cutting into any existing line. Use the appropriate clamp ring tool or crimp ring tool rated for the tubing size being connected. Inspect the barb seat and tubing cut end for squareness and debris before seating the fitting.

Technical Specifications

• Fitting Type: PEX Barb Reducing Tee
• Material: Brass
• Size: 3/4 inches x 1/2 inches x 3/4 inches
• Weight: 0.13 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC444LFA
