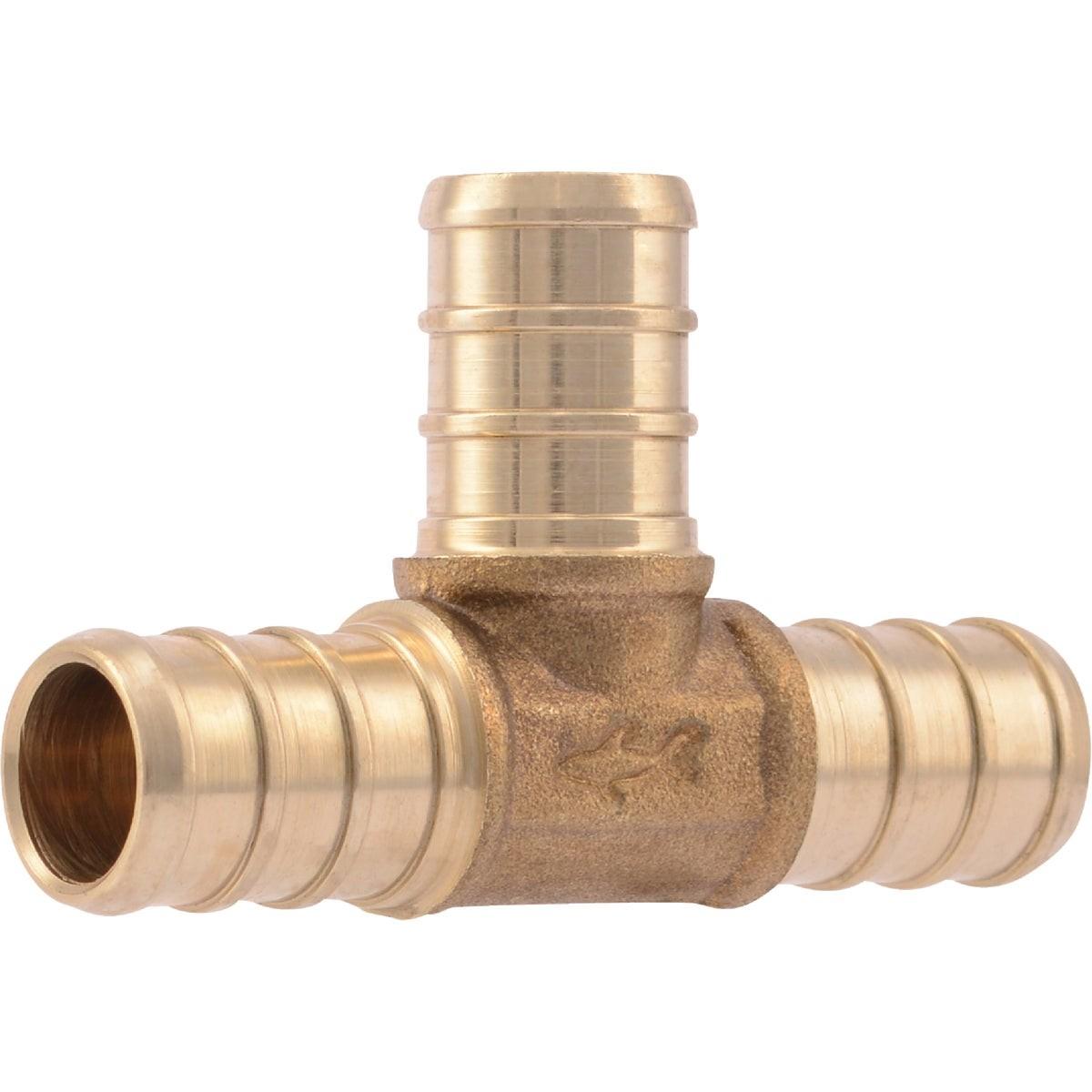

Rwc UC362LFA Sharkbite Barb Brass Pex Tee 1/2 in

Product Description

The RWC UC362LFA is a 1/2-inch by 1/2-inch by 1/2-inch barb-style PEX tee fitting manufactured from lead-free DZR brass. It is designed for use in PEX tubing systems where a branch connection is required, delivering a reliable, low-profile joint in residential and light commercial plumbing installations. The fitting meets NSF/ANSI 61 and NSF 372 requirements, confirming suitability for potable water contact. Licensed plumbers and pipe fitters are the primary installers. Its barb configuration is compatible with both stainless steel clamp rings and copper crimp rings, giving installers flexibility based on the tooling already on the truck.

This tee fitting is suited for potable water distribution lines and hydronic heating systems. The barb design seats into PEX tubing and is secured with either a stainless steel ear clamp or a copper crimp ring, each sold separately. It is appropriate for use in new construction rough-in work and retrofit or repair scenarios where a branch takeoff is needed in an existing PEX run. The fitting is sold individually.

Key Features

• Lead-free DZR brass construction meets NSF 372 requirements for potable water use
• Barb end connections work with stainless steel clamp ring and copper crimp ring systems
• NSF/ANSI 61 certified for potable water distribution
• Meets ASTM F1807 standard for metal insert fittings
• Suitable for both potable water and hydronic heating applications
• Equal tee configuration: 1/2 inch on all three ports

Compatibility

Compatible with PEX tubing systems using stainless steel clamp ring or copper crimp ring installation methods for potable water distribution and hydronic heating applications, per ASTM F1807.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before cutting into any existing PEX run. Use the appropriate crimp or clamp tool rated for the ring system being used — do not attempt to seat barb fittings by hand pressure alone without proper ring-securing tooling. Inspect the barb seat and tubing end for burrs or debris before assembly.

Technical Specifications

• Connection Size: 1/2 inch x 1/2 inch x 1/2 inch
• Connection Type: Barb (PEX)
• Material: Lead-Free DZR Brass
• Weight: 0.071 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC362LFA
