Rwc UC360LFA Sharkbite Pex Barb Tee 3/8 X 3/8 X 3/8 Brass

Product Description

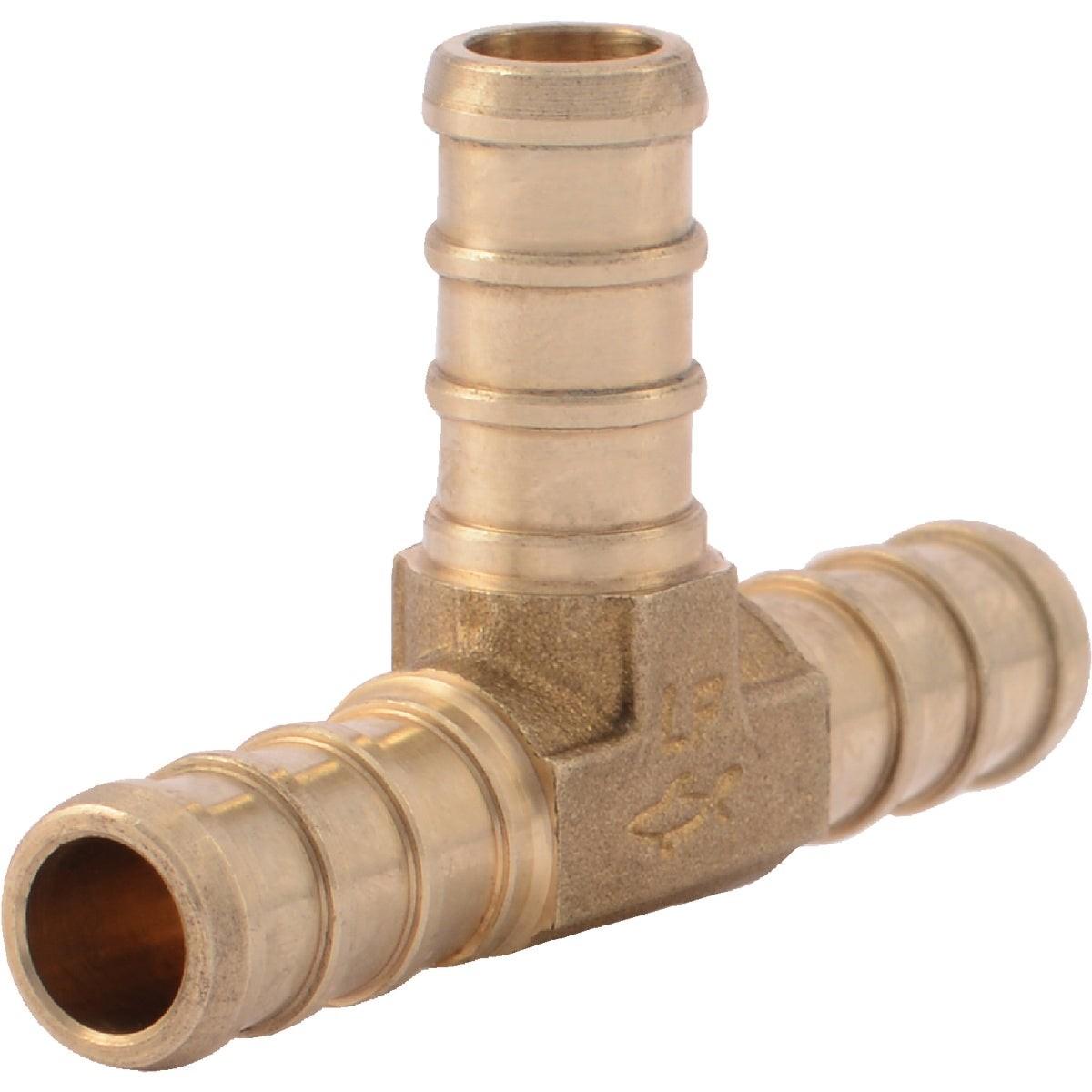

The RWC UC360LFA is a 3/8-inch by 3/8-inch by 3/8-inch PEX barb tee fitting manufactured from lead-free DZR brass. It is designed to create branch connections in PEX tubing systems used for potable water distribution and hydronic heating. The fitting works with both stainless steel clamp systems and copper crimp ring systems, making it adaptable to standard installation methods already in use on the job. Licensed plumbers and pipefitters install this fitting as a low-cost, straightforward solution wherever a three-way branch is needed in a PEX run.

This tee fitting is suited for residential and light commercial plumbing applications including domestic water distribution lines and closed-loop hydronic heating systems. It connects three 3/8-inch PEX lines at a single junction point. The fitting is compatible with stainless steel clamp rings and copper crimp rings, each sold separately, giving installers flexibility to use whichever termination method is specified or preferred on a given project.

Key Features

• Lead-free DZR brass construction meets NSF 372 lead-free requirements
• Barb-style connection works with stainless steel clamp systems and copper crimp ring systems
• 3/8-inch by 3/8-inch by 3/8-inch equal tee configuration for three-way branch connections
• Approved for potable water distribution per NSF/ANSI 61
• Complies with ASTM F1807 for PEX tube fittings
• Sold individually; minimum order quantity of 6 units

Compatibility

Compatible with potable water distribution systems and hydronic heating applications using 3/8-inch PEX tubing. For use with stainless steel clamp systems or copper crimp ring systems meeting ASTM F1807 requirements, each sold separately.

Installation Notes

Installation is performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before cutting into existing PEX tubing. Use the appropriate clamp or crimp tool rated for the ring system being installed; do not attempt to seat barb fittings without the correct tooling, as incomplete seating can cause leaks. Inspect the barb seats and PEX tube ends for cuts or deformation before making connections.

Technical Specifications

• Connection Size: 3/8 inches x 3/8 inches x 3/8 inches
• Material: Lead-Free DZR Brass
• Configuration: Barb Tee
• Weight: 0.045 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC360LFA
