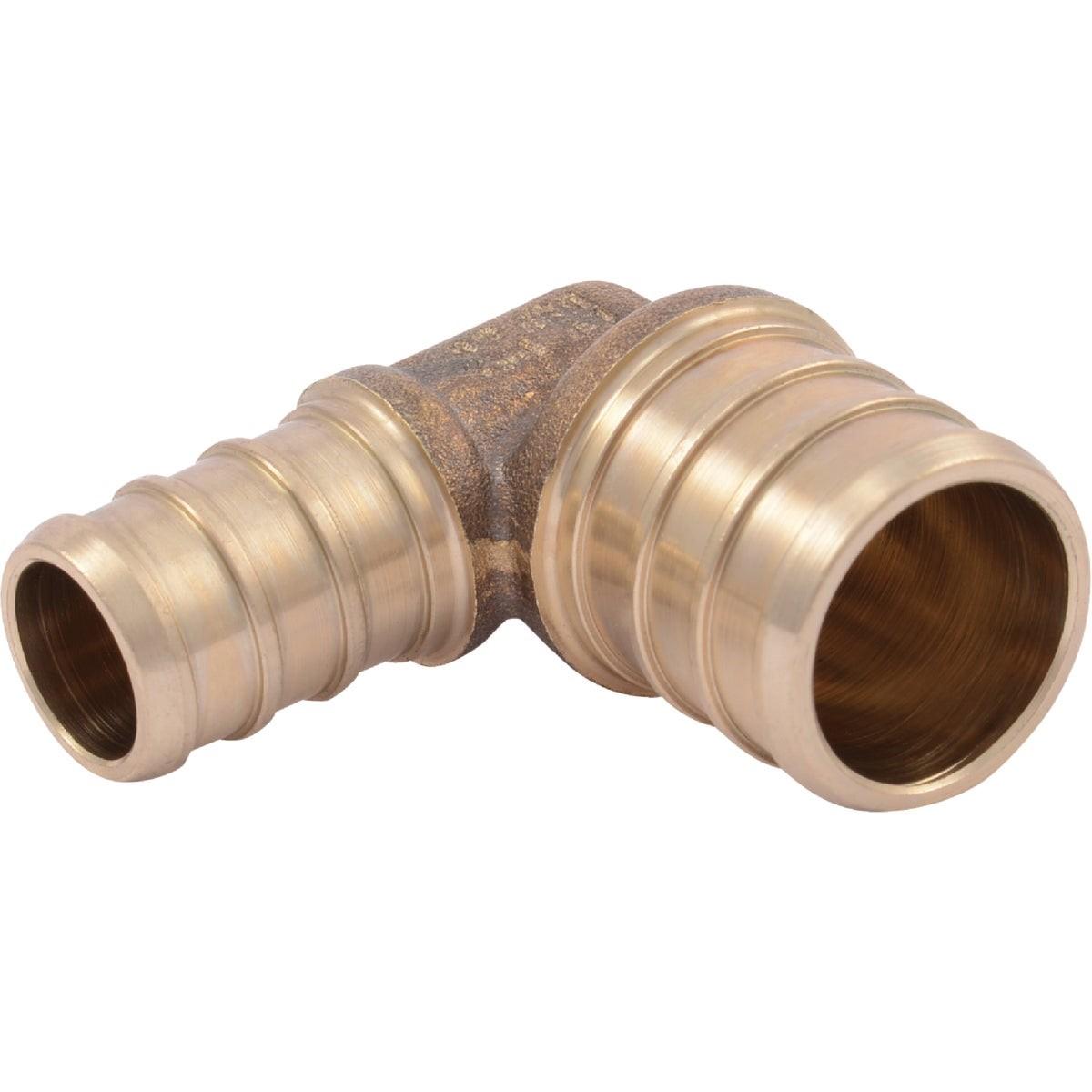

Rwc UC274LFA 1/2 X 3/4 Inch Barb 90 Degree Reducing Pex Elbow

Product Description

The RWC UC274LFA is a reducing 90-degree PEX barb elbow manufactured from lead-free DZR brass. It transitions between 1/2 inch and 3/4 inch PEX tubing at a right-angle bend, making it a practical fitting for directional changes in PEX distribution lines. The lead-free DZR brass construction meets NSF/ANSI 61 and NSF 372 requirements for potable water contact, and the fitting is rated to ASTM F1807 standards. Plumbers and hydronic heating technicians install this fitting using either a stainless steel clamp system or a copper crimp ring system, with the appropriate installation tool applied to the ring or clamp to secure the connection.

This elbow is suited for residential and light commercial potable water distribution systems as well as hydronic heating applications. It is designed for use anywhere a 90-degree directional change is needed between a 1/2 inch and 3/4 inch PEX line, such as at branch takeoffs, manifold runs, or near-fixture routing. The barb-style connection is compatible with both stainless steel clamp ring systems and copper crimp ring systems. Clamp rings and crimp rings are each sold separately.

Key Features

• Lead-free DZR brass construction meets NSF 372 lead-free requirements
• Reduces between 1/2 inch and 3/4 inch PEX tubing in a single 90-degree fitting
• Compatible with both stainless steel clamp ring and copper crimp ring installation systems
• Rated to ASTM F1807 for PEX barb fittings
• NSF/ANSI 61 certified for potable water distribution
• Suitable for hydronic heating applications in addition to domestic water supply

Compatibility

Compatible with PEX tubing in potable water distribution and hydronic heating applications. Accepts standard stainless steel clamp ring systems and copper crimp ring systems per ASTM F1807. Clamp and crimp tools, rings, and clamps are sold separately.

Installation Notes

Installation is performed by licensed plumbers or qualified trades using a PEX clamp tool or PEX crimp tool suited to the selected ring type. Shut off the water supply and depressurize the line before cutting and fitting. Ensure the PEX tubing is fully seated past the barbs before applying the ring or clamp. Follow local plumbing code requirements, which typically reference IPC or IRC standards for PEX installations.

Technical Specifications

• Inlet Size: 3/4 inches (barb)
• Outlet Size: 1/2 inches (barb)
• Angle: 90 degrees
• Material: Lead-free DZR brass
• Weight: 0.107 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC274LFA
