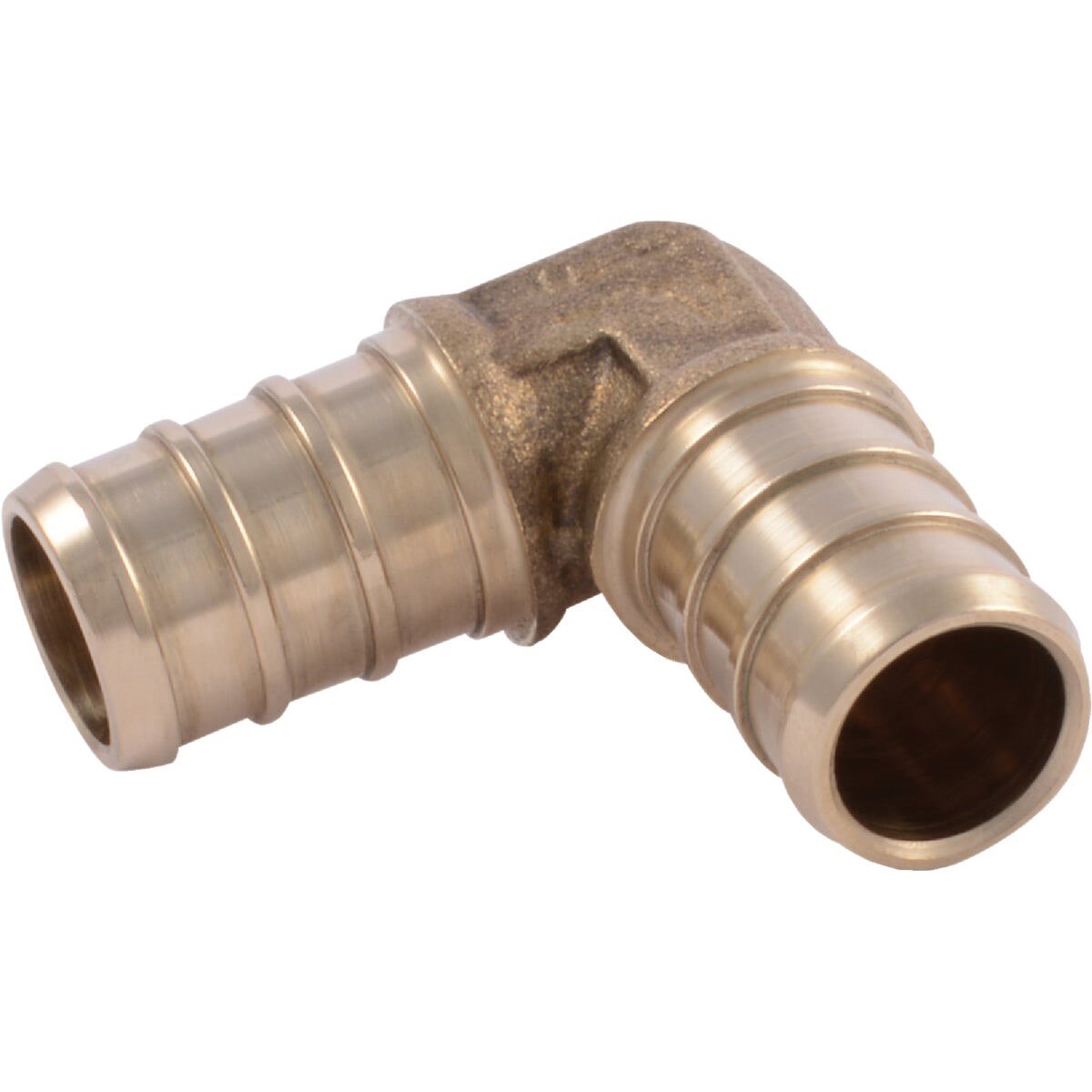

Rwc UC248LFA 1/2 in Barb 90 Degree Brass Pex Elbow

Product Description

The RWC UC248LFA is a 1/2-inch barb by 1/2-inch barb 90-degree PEX elbow fitting manufactured from lead-free DZR brass. It connects PEX tubing at a right angle in potable water distribution and hydronic heating systems. The fitting meets ASTM F1807 standards and carries NSF/ANSI 61 and NSF 372 certifications, confirming suitability for drinking water contact. Licensed plumbers and hydronic heating technicians install this fitting as part of a clamp or crimp ring system. It is sold individually and weighs approximately 0.059 pounds.

This elbow is suited for residential and light commercial PEX piping installations where a 90-degree direction change is needed. It is compatible with both stainless steel clamp ring systems and copper crimp ring systems, with the clamp or crimp rings sold separately. Typical applications include domestic hot and cold water supply lines and closed-loop hydronic heating circuits where PEX tubing is the distribution medium.

Key Features

• Lead-free DZR brass construction meets NSF 372 low-lead requirements
• Dual-system compatibility: works with stainless steel clamp ring or copper crimp ring tools
• NSF/ANSI 61 certified for potable water contact
• Meets ASTM F1807 dimensional and performance standard for PEX barb fittings
• 90-degree barb-to-barb configuration for in-line directional changes in PEX runs
• 1/2-inch barb on both ends for consistent tubing engagement

Compatibility

Designed for use with 1/2-inch PEX tubing in potable water distribution and hydronic heating applications. Compatible with both stainless steel clamp ring systems and copper crimp ring systems; clamp and crimp rings are sold separately. Meets ASTM F1807 requirements.

Installation Notes

Installation is performed by a licensed plumber or qualified hydronic heating technician. Shut off the water supply and depressurize the line before cutting and fitting. Use the appropriate clamp ring tool for stainless steel rings or a PEX crimp tool for copper rings to achieve a secure, leak-free connection. Follow applicable local plumbing codes and IPC requirements for PEX barb fitting installations.

Technical Specifications

• Inlet Size: 1/2 inch barb
• Outlet Size: 1/2 inch barb
• Angle: 90 degrees
• Material: Lead-free DZR brass
• Weight: 0.059 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC248LFA
