Rwc UC246LFA 3/8 in Barb 90 Degree Brass Pex Elbow

Product Description

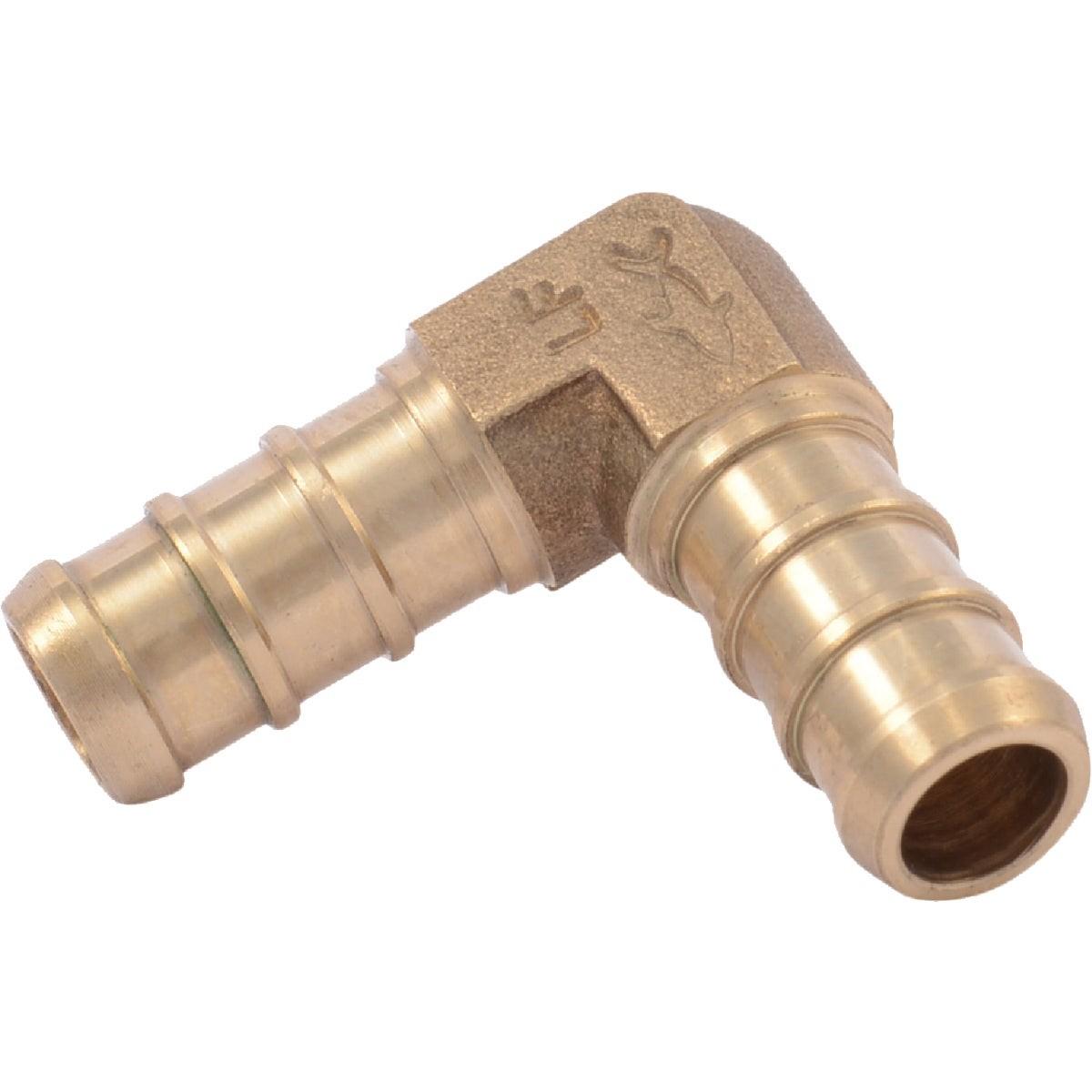

The RWC UC246LFA is a 3/8-inch by 3/8-inch barb 90-degree PEX elbow fitting manufactured from lead-free DZR brass. It is designed to connect PEX tubing at a right angle in residential and light commercial plumbing and hydronic systems. The fitting meets NSF/ANSI 61 and NSF 372 certification requirements, making it suitable for potable water contact. Its barb-style connection works with both stainless steel clamp ring systems and copper crimp ring systems, with clamp or crimp tools sold separately. Licensed plumbers and pipefitters install this fitting as part of PEX distribution runs where a 90-degree direction change is required.

The UC246LFA is suited for potable water distribution and hydronic heating applications. It is commonly installed in residential water supply systems, radiant floor heating loops, and other closed-loop hydronic circuits where PEX tubing is the primary pipe material. The fitting ships individually and is sold in a minimum quantity of 6 units per order. Its low-profile barb design makes it straightforward to install in tight spaces within wall cavities, mechanical rooms, or under-slab applications.

Key Features

• Lead-free DZR brass construction meets NSF 372 lead-free requirements
• 90-degree barb elbow provides a right-angle direction change for PEX tubing runs
• Compatible with both stainless steel clamp ring and copper crimp ring installation systems
• NSF/ANSI 61 certified for potable water contact
• ASTM F1807 compliant barb fitting design
• Lightweight at 0.034 pounds per fitting, suitable for high-volume installations

Compatibility

Rated for potable water distribution and hydronic heating applications. Compatible with standard 3/8-inch PEX tubing used in stainless steel clamp ring systems and copper crimp ring systems per ASTM F1807.

Installation Notes

Installation is performed by a licensed plumber using a compatible PEX clamp ring tool or crimp ring tool. Shut off water supply and depressurize the line before making connections. Ensure the PEX tubing is cut cleanly and seated fully past the barb before applying the ring. Follow local plumbing code requirements, which typically reference IPC or IRC standards for PEX installations.

Technical Specifications

• Connection Size: 3/8 inches x 3/8 inches
• Connection Type: Barb
• Angle: 90 degrees
• Material: Lead-free DZR Brass
• Weight: 0.034 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Application: Potable Water Distribution, Hydronic Heating
• UPC: 00697285604896

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC246LFA
