Rwc UC140LFA 1 in Cf X 1 in Mpt Brass Pex Barb Adapter

Product Description

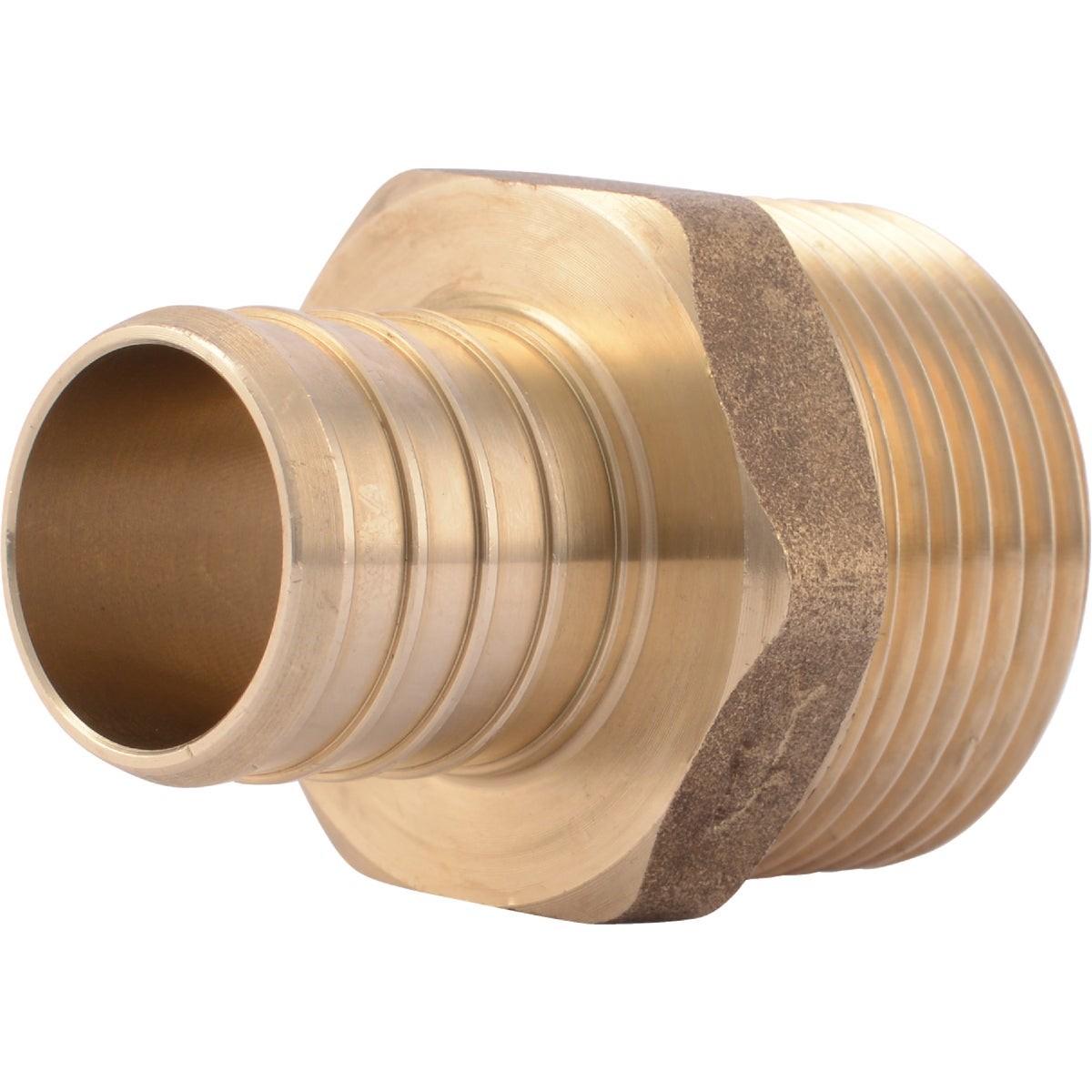

The RWC UC140LFA is a 1-inch crimp-fit (CF) by 1-inch male pipe thread (MPT) PEX barb adapter manufactured from lead-free DZR brass. It connects PEX tubing to a male NPT threaded fitting on the opposing end. The barb end is compatible with both stainless steel clamp systems and copper crimp ring systems, each sold separately. This adapter is suited for potable water distribution and hydronic heating systems. Installation is straightforward and requires no soldering or open flame. A licensed plumber is the typical installer, though the fitting is also appropriate for experienced service technicians working within applicable codes.

This adapter is used in residential and light commercial plumbing where PEX tubing meets threaded pipe connections. Common applications include potable water supply lines, in-floor radiant heating distribution systems, and hydronic baseboard systems. The crimp-fit barb end accepts standard PEX tubing, and the male NPT thread end connects directly to valves, manifolds, or other threaded fittings. Its lead-free DZR brass construction makes it suitable for drinking water systems under NSF/ANSI 61 and NSF 372 requirements.

Key Features

• Lead-free DZR brass construction meets NSF 372 lead-free requirements for potable water contact
• 1-inch crimp-fit barb end is compatible with stainless steel clamp systems and copper crimp ring systems
• 1-inch male NPT thread on the opposing end for connection to valves, manifolds, and threaded fittings
• Approved for potable water distribution and hydronic heating applications
• Certified to ASTM F1807, NSF/ANSI 61, and NSF 372

Compatibility

Designed for use with standard 1-inch PEX tubing in potable water distribution and hydronic heating applications where a crimp-fit barb to male NPT threaded connection is required.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and local jurisdiction requirements. Shut off the water supply and depressurize the line before fitting installation. Use a calibrated PEX crimping tool or stainless steel clamp tool to secure the barb connection per the fitting system manufacturer specifications. Do not overtighten the NPT threaded end; apply appropriate thread sealant or PTFE tape to the male threads before assembly.

Technical Specifications

• Inlet Size: 1 inch CF (Crimp-Fit Barb)
• Outlet Size: 1 inch MPT (Male Pipe Thread)
• Material: Lead-Free DZR Brass
• Weight: 0.275 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC140LFA
