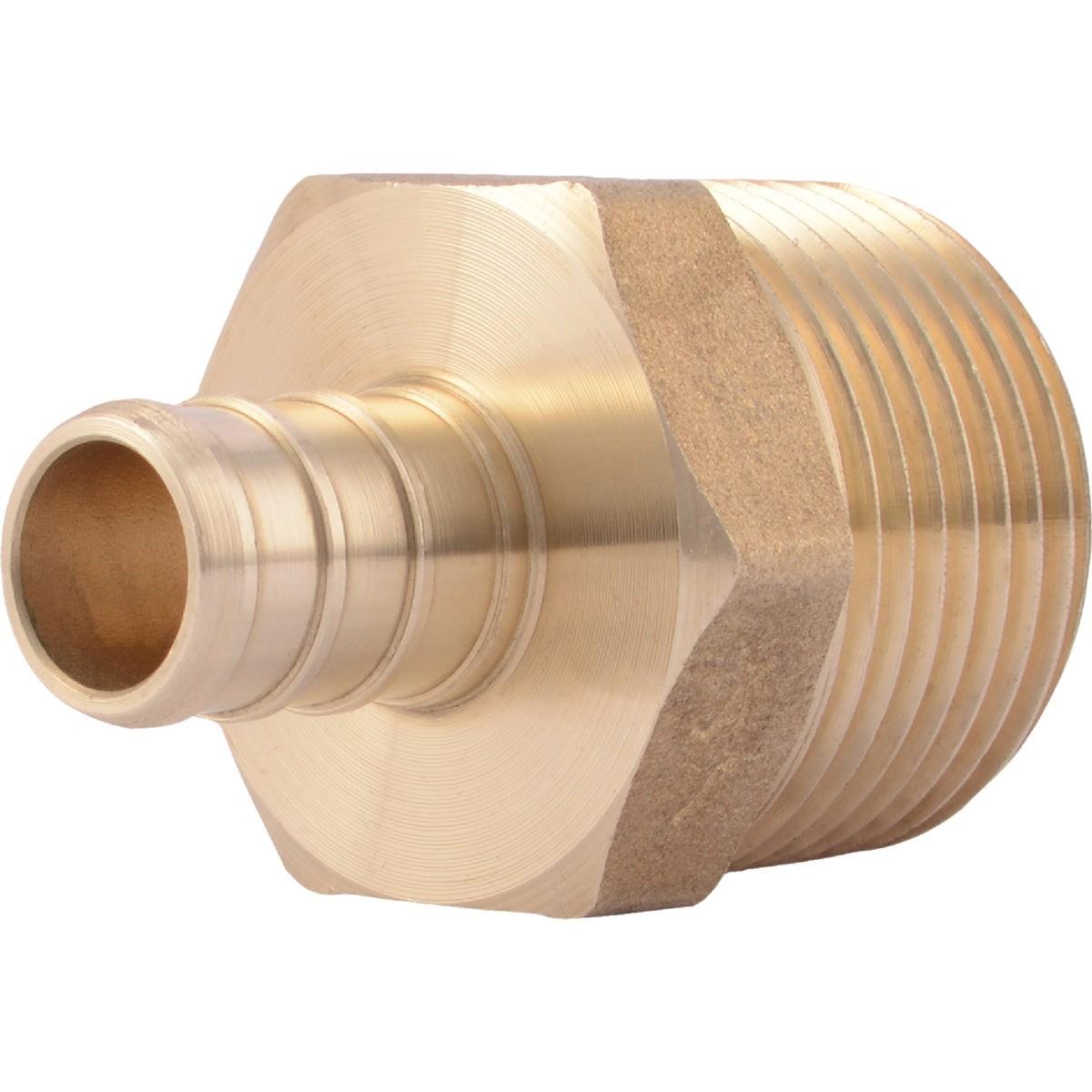

Rwc UC116LFA 1/2 in Cf X 3/4 in Mpt Brass Pex Adapter

Product Description

The RWC UC116LFA is a lead-free DZR brass PEX barb male adapter designed to transition from 1/2 inch CF PEX tubing to a 3/4 inch male NPT threaded connection. Built for potable water distribution and hydronic heating systems, this fitting accepts either a stainless steel clamp system or a copper crimp ring system on the barb end, with both clamp and crimp rings sold separately. The lead-free DZR brass construction meets NSF/ANSI 61 and NSF 372 requirements for safe use in drinking water applications. Plumbers and pipefitters install this fitting as a low-cost, reliable transition point between PEX tubing runs and threaded pipe connections.

This adapter is suited for residential and light commercial plumbing installations where PEX tubing connects to threaded male fittings on valves, manifolds, water heaters, or fixture supply lines. The 1/2 inch CF barb end accommodates standard PEX-B and PEX-A tubing when secured with the appropriate clamp or crimp ring tool. The 3/4 inch MNPT thread side makes up to standard threaded ports. Compliant with ASTM F1807, this fitting is appropriate for both cold and hot water distribution lines as well as closed-loop hydronic heating circuits.

Key Features

• Lead-free DZR brass construction meets NSF/ANSI 61 and NSF 372 for potable water service
• 1/2 inch CF barb end compatible with stainless steel clamp system or copper crimp ring system
• 3/4 inch male NPT thread for direct connection to standard threaded ports
• ASTM F1807 compliant for PEX barb fitting applications
• Suitable for potable water distribution and hydronic heating applications
• Sold individually, clamp rings and crimp rings sold separately

Compatibility

Designed for use with PEX tubing in potable water distribution and hydronic heating applications where a stainless steel clamp system or copper crimp ring system is used to secure the barb end connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before making any connections. Use the correct PEX clamp or crimp tool rated for the fitting size to ensure a secure, leak-free barb connection. Apply thread sealant or PTFE tape to the male NPT threads before making up the threaded connection.

Technical Specifications

• Barb End Size: 1/2 inch CF
• Thread End Size: 3/4 inch Male NPT
• Material: Lead-Free DZR Brass
• Weight: 0.146 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC116LFA
