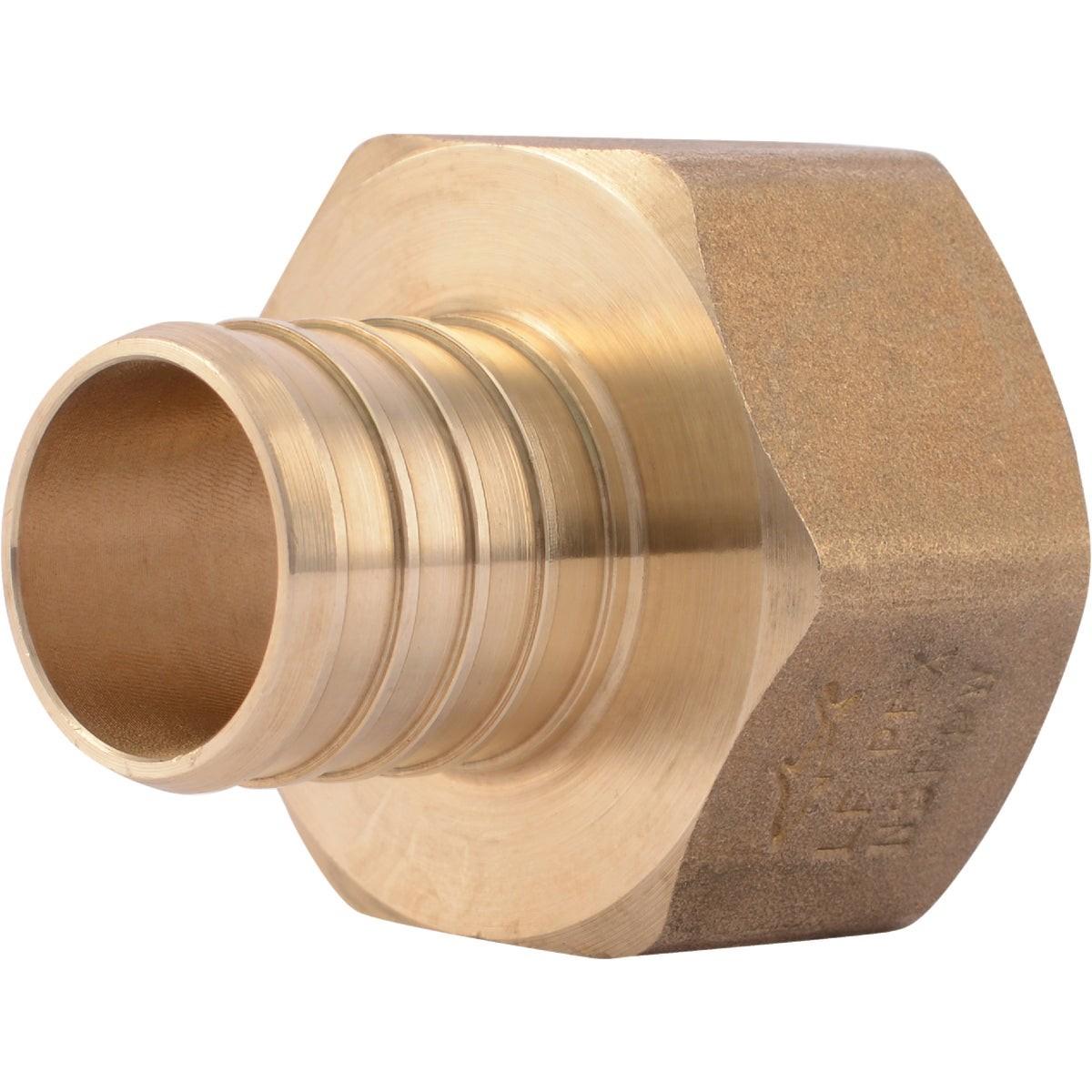

Rwc UC094LFA 1 in Barb X 1 in Fip Brass Pex Adapter

Product Description

The RWC UC094LFA is a lead-free DZR brass PEX barb adapter designed to transition between PEX tubing and a female iron pipe thread (FNPT) connection. One end accepts a 1-inch barb connection using either a stainless steel clamp system or a copper crimp ring system, while the other end is 1-inch FNPT threaded for direct connection to threaded pipe or fittings. The lead-free DZR brass construction meets NSF/ANSI 61 and NSF 372 requirements for potable water contact. Licensed plumbers and PEX installers use this adapter where a PEX run must terminate at or transition through a threaded female port.

This adapter is suited for both potable water distribution systems and hydronic heating applications. It serves as a straightforward, cost-effective solution when connecting PEX tubing to threaded valves, manifolds, water heaters, or other FNPT-ported components. The barb end is compatible with both stainless steel clamp rings and copper crimp rings, each sold separately, giving installers flexibility to use whichever crimping or clamping system is already on the job.

Key Features

• Lead-free DZR brass construction meets NSF/ANSI 61 and NSF 372 for potable water use
• 1-inch barb end accepts stainless steel clamp or copper crimp ring system (sold separately)
• 1-inch FNPT threaded end connects to standard female threaded fittings and components
• Rated for potable water distribution and hydronic heating applications
• Meets ASTM F1807 standard for metal insert fittings for PEX tubing

Compatibility

Designed for use with 1-inch PEX tubing in potable water distribution and hydronic heating systems. Compatible with stainless steel clamp ring and copper crimp ring installation methods per ASTM F1807.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and relieve system pressure before making any connections. Use the appropriate crimp or clamp tool rated for the ring system being used to ensure a leak-free barb connection. Verify that all threaded connections are properly sealed with an approved thread sealant or PTFE tape before restoring pressure.

Technical Specifications

• Barb Size: 1 inch
• Thread Size: 1 inch FNPT
• Material: Lead-Free DZR Brass
• Weight: 0.334 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• UOM: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC094LFA
