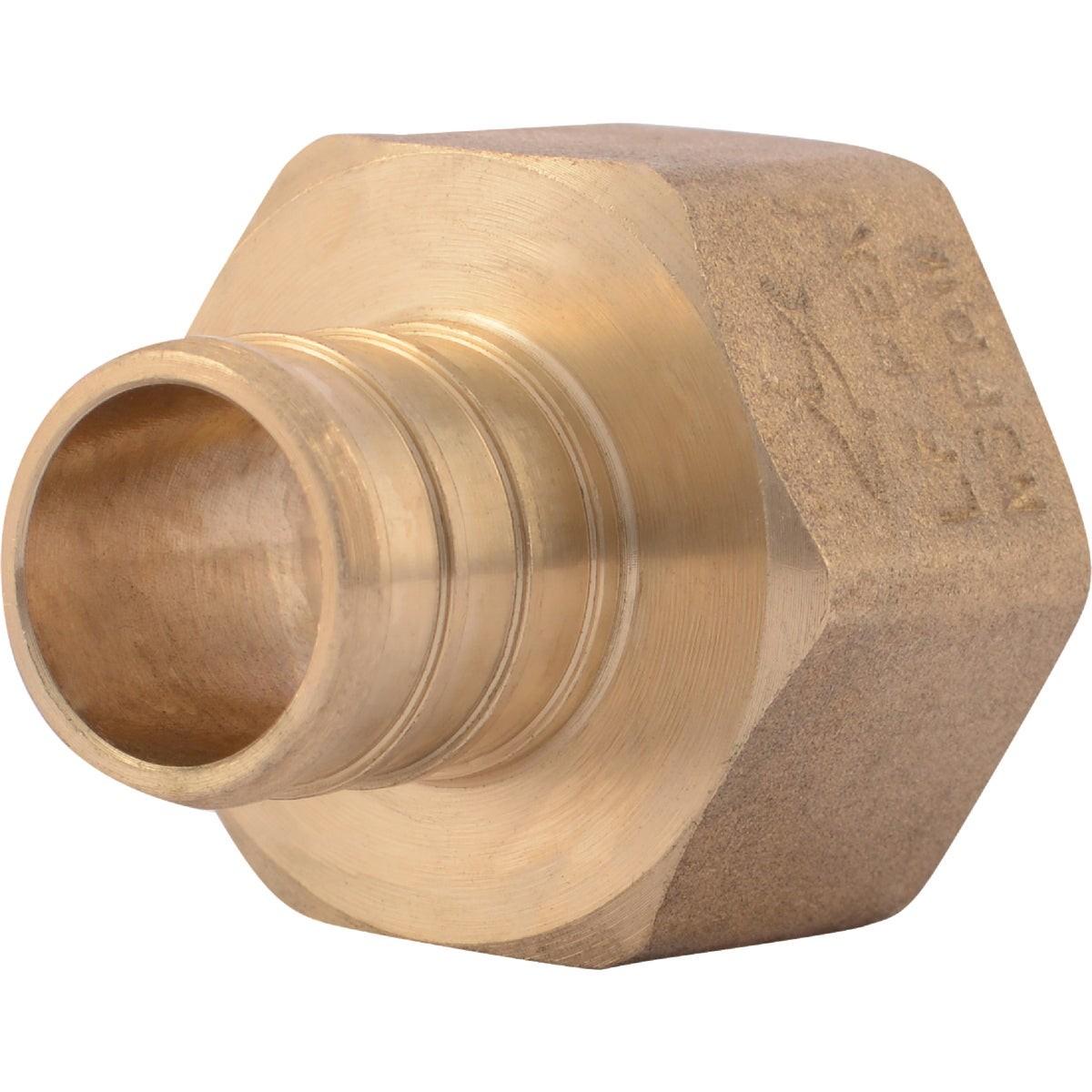

Rwc UC088LFA Sharkbite 3/4 in Barb X 3/4 in Fip Brass Pex Adapter

Product Description

The RWC UC088LFA is a 3/4-inch barb by 3/4-inch female iron pipe (FIP) threaded adapter designed to connect PEX tubing to FNPT-threaded fittings or valves. Constructed from lead-free DZR brass, this fitting is built to resist dezincification in potable water systems. The barb end accepts either a stainless steel clamp system or a copper crimp ring system, giving installers flexibility based on their preferred tooling. It is compliant with ASTM F1807, NSF/ANSI 61, and NSF 372, meeting the standards required for drinking water and hydronic heating installations. Licensed plumbers and pipefitters are the primary installers of this fitting.

The UC088LFA is suited for residential and light commercial plumbing applications, including potable water distribution systems and hydronic radiant heating. It provides a reliable threaded female connection point where PEX tubing meets a threaded component such as a shutoff valve, manifold, or fixture supply. The barb-and-clamp or barb-and-crimp connection method makes it compatible with standard PEX installation workflows without requiring specialty press tooling.

Key Features

• Lead-free DZR brass construction meets NSF 372 requirements for drinking water systems
• Accepts stainless steel clamp rings or copper crimp rings (each sold separately)
• FNPT-threaded female end for connection to standard threaded fittings and valves
• Approved for potable water distribution and hydronic heating applications
• Compliant with ASTM F1807 and NSF/ANSI 61
• Sold individually (UOM: Each)

Compatibility

Designed for use with 3/4-inch PEX tubing in potable water distribution and hydronic heating systems using stainless steel clamp or copper crimp ring connection methods per ASTM F1807.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before beginning work. Use the appropriate clamp or crimp tool rated for the ring type selected to ensure a leak-free barb connection. Hand-tighten the FIP threaded end onto the mating fitting before applying a wrench, and use thread sealant or PTFE tape on the male threads per local code requirements.

Technical Specifications

• Barb Size: 3/4 inches
• Thread Size: 3/4 inches FIP (FNPT)
• Material: Lead-Free DZR Brass
• Weight: 0.163 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• UOM: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC088LFA
