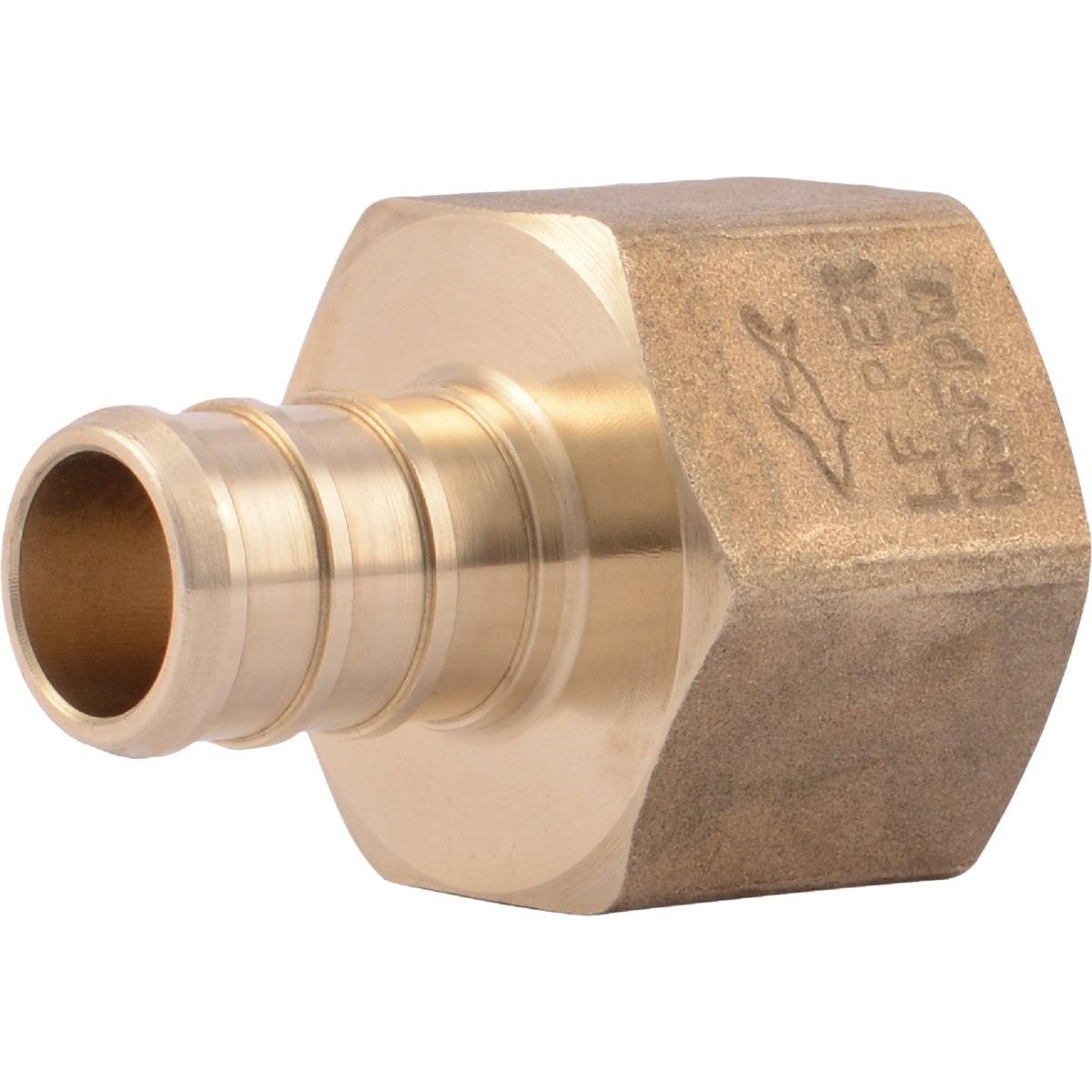

Rwc UC072LFA10 Pex Barb Female Adapter 1/2 in Barb X Fip

Product Description

The RWC UC072LFA10 is a SharkBite PEX barb threaded female adapter designed to connect PEX tubing to female iron pipe (FIP) threaded fittings in potable water distribution and hydronic heating systems. Constructed from lead-free DZR brass, this adapter offers corrosion resistance suited to both hot and cold water service. The barb end accepts either a stainless steel clamp ring system or a copper crimp ring system, giving installers flexibility in connection method. Plumbers and pipefitters working on residential or light commercial PEX installations will find this a straightforward, low-cost transition fitting between barb and threaded connections.

This adapter is suited for residential potable water distribution systems and hydronic heating applications where PEX tubing terminates at a threaded female connection point. The 1/2 inch barb end connects directly to 1/2 inch PEX tubing using a clamp or crimp tool, while the 1/2 inch FNPT end threads onto standard pipe fittings, valves, or equipment ports. It is a practical choice wherever a direct barb-to-female-thread transition is needed without additional union fittings.

Key Features

• Lead-free DZR brass construction meets NSF 372 requirements for drinking water systems
• Barb end compatible with both stainless steel clamp ring and copper crimp ring systems
• 1/2 inch barb x 1/2 inch FNPT configuration for direct PEX-to-thread transitions
• Certified to NSF/ANSI 61 for potable water contact
• Meets ASTM F1807 standard for PEX barb fittings
• Suitable for potable water distribution and hydronic heating applications

Compatibility

Compatible with 1/2 inch PEX tubing using a stainless steel clamp ring system or a copper crimp ring system (each sold separately). Approved for potable water distribution and hydronic heating applications per ASTM F1807, NSF/ANSI 61, and NSF 372.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before making any connections. Use the appropriate PEX clamp or crimp tool rated for the ring system being used — do not substitute tools between clamp and crimp systems. Verify that all threaded connections are sealed with appropriate thread sealant or tape per the fitting manufacturer's guidelines.

Technical Specifications

• Material: Lead-free DZR brass
• Connection Type: 1/2 inch barb x 1/2 inch FNPT (female iron pipe thread)
• Compatible Ring Systems: Stainless steel clamp ring or copper crimp ring
• Weight: 0.892 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Applications: Potable water distribution, hydronic heating

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC072LFA10
