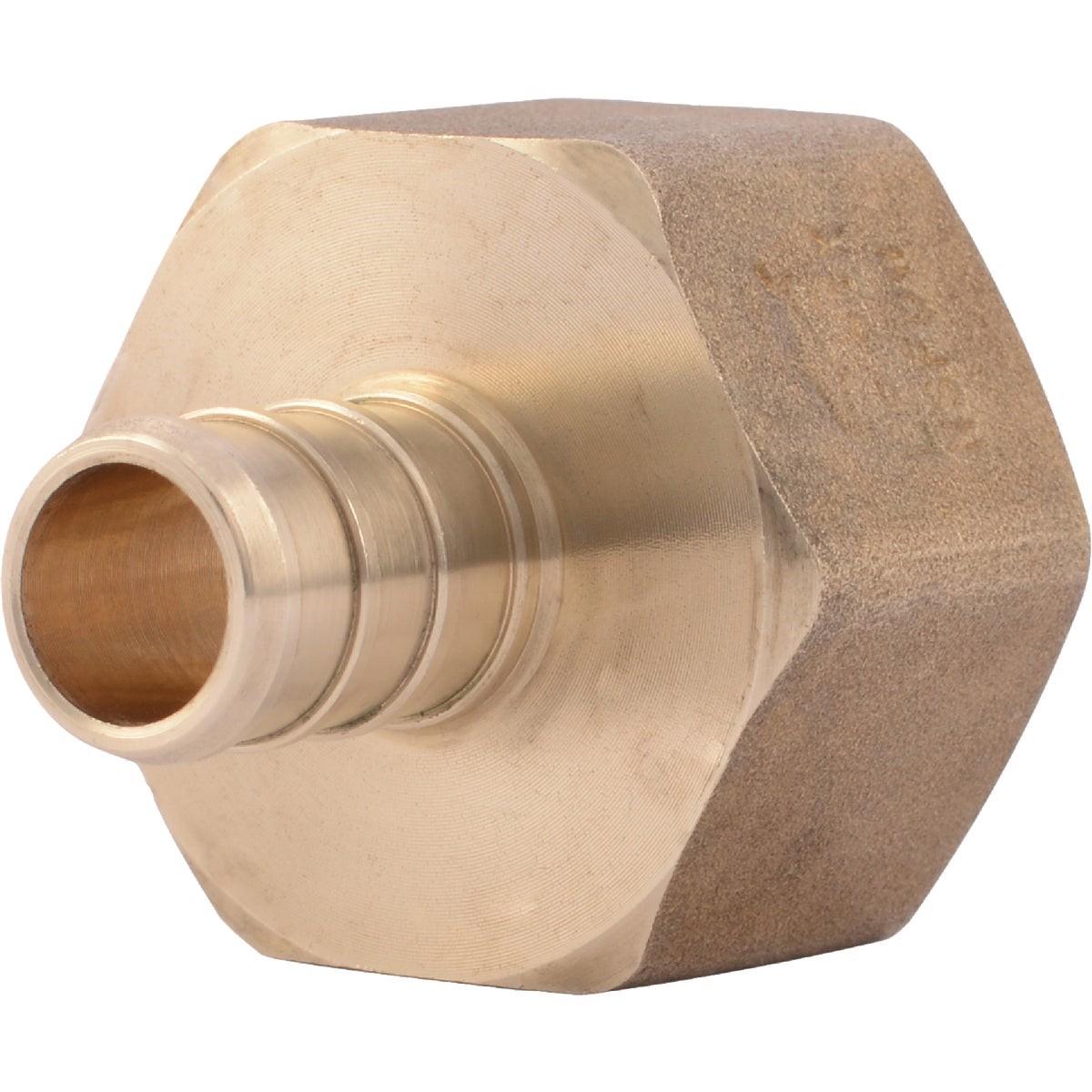

Rwc UC068LFA 1/2 in Barb X 3/4 in Fip Brass Pex Adapter

Product Description

The RWC UC068LFA is a lead-free DZR brass PEX barb adapter designed to transition from 1/2 inch PEX tubing to a 3/4 inch female iron pipe thread (FNPT) connection. One end accepts a standard barb connection using either a stainless steel clamp system or a copper crimp ring system, while the other end is female NPT threaded for direct connection to threaded pipe or fittings. The lead-free DZR brass construction meets drinking water standards and holds up well in both hot and cold water service. Plumbers and pipefitters install this fitting in new construction and retrofit work where PEX tubing meets threaded iron pipe fittings.

The UC068LFA is suited for residential and light commercial potable water distribution systems and hydronic heating applications. It is commonly used at points where PEX supply lines transition to threaded valves, manifolds, or fixtures. The barb end is compatible with standard 1/2 inch PEX tubing and works with either a clamp ring tool or crimp ring tool, giving installers flexibility based on the tools and rings already on the job. Clamp rings and crimp rings are sold separately.

Key Features

• Lead-free DZR brass construction meets NSF 372 requirements for drinking water systems
• 1/2 inch barb inlet connects to standard 1/2 inch PEX tubing
• 3/4 inch FNPT outlet threads directly onto standard female iron pipe fittings
• Compatible with both stainless steel clamp ring and copper crimp ring installation systems
• Approved for potable water distribution and hydronic heating applications
• Meets ASTM F1807 and NSF/ANSI 61 standards

Compatibility

Approved for use in potable water distribution and hydronic heating applications. Compatible with standard 1/2 inch PEX tubing using either a stainless steel clamp system or a copper crimp ring system, each sold separately.

Installation Notes

This fitting is installed by licensed plumbers working with PEX tubing systems. Shut off the water supply and depressurize the line before beginning work. The barb end requires the appropriate clamp ring or crimp ring tool to achieve a proper, leak-free seal on the PEX tubing. The FNPT threaded end should be made up with thread sealant tape or compound in accordance with local plumbing code requirements.

Technical Specifications

• Inlet Size: 1/2 inch barb
• Outlet Size: 3/4 inch FNPT
• Material: Lead-free DZR brass
• Weight: 0.167 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC068LFA
