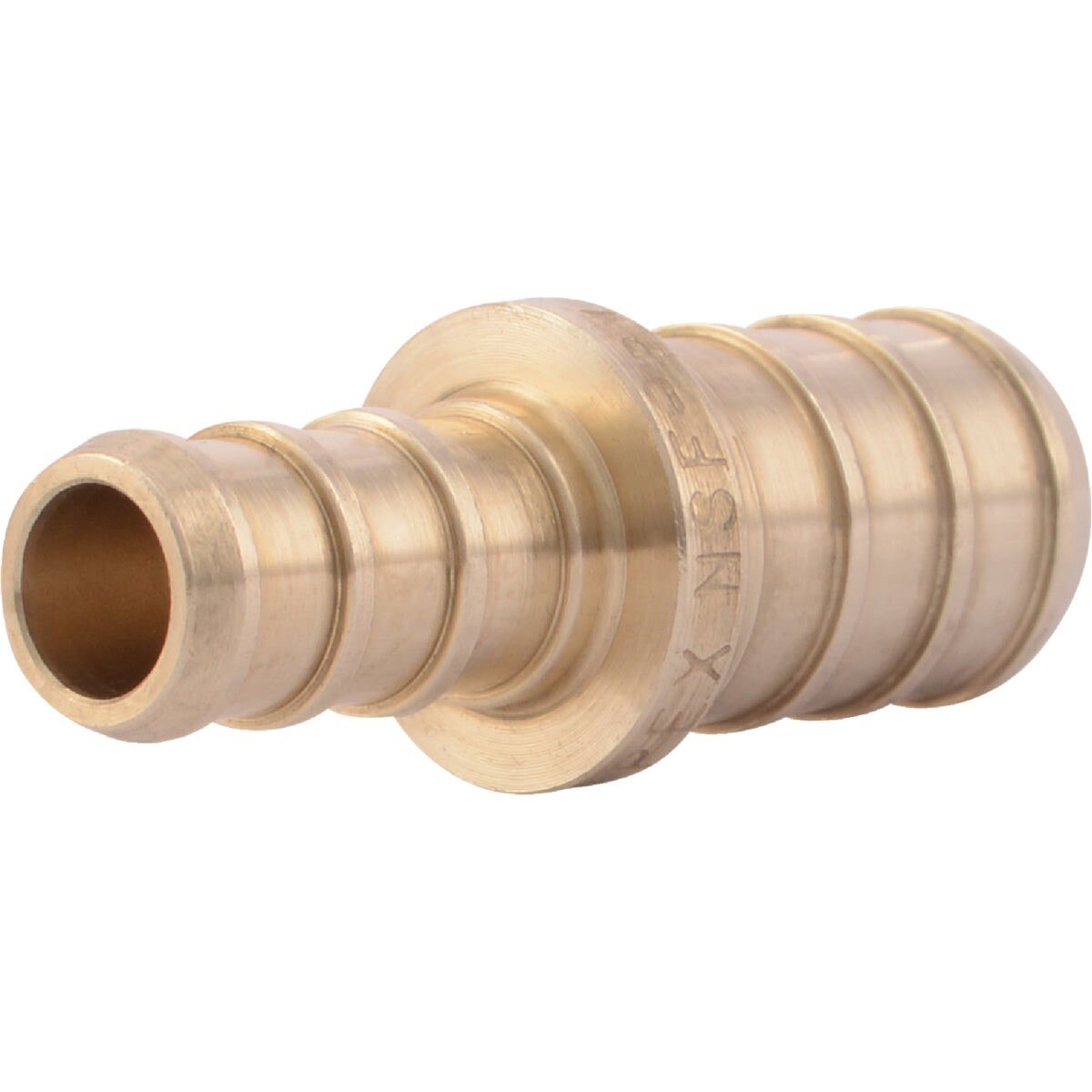

Rwc UC009LFA Sharkbite Brass Pex Barb Coupling 3/8x1/2 in

Product Description

The RWC UC009LFA is a lead-free DZR brass PEX barb coupling designed to connect PEX tubing in residential and light commercial plumbing systems. The fitting transitions from a 3/8 inch barb end to a 1/2 inch barb end, making it a practical solution for reducing or transitioning between two common PEX tubing sizes. Manufactured from dezincification-resistant brass, it meets strict lead-free standards for use in potable water systems. Licensed plumbers and pipefitters install this fitting as part of PEX distribution runs, hydronic heating loops, or repair connections where a low-profile, cost-effective barb joint is appropriate.

This coupling is suited for both residential potable water distribution and hydronic heating applications. It is compatible with the stainless steel clamp ring system and the copper crimp ring system, giving installers flexibility to work with whichever tool set is already on the truck. Clamp rings and crimp rings are each sold separately. The fitting is sold individually and carries a minimum order quantity of 6 units.

Key Features

• Lead-free DZR brass construction meets NSF 372 lead-free requirements
• 3/8 inch barb inlet x 1/2 inch barb outlet for common PEX size transitions
• Compatible with both stainless steel clamp ring and copper crimp ring systems
• Approved for potable water distribution and hydronic heating service
• Certified to NSF/ANSI 61 for drinking water system components
• Meets ASTM F1807 standard for metal insert fittings for PEX tubing

Compatibility

Designed for use with PEX tubing in potable water distribution and hydronic heating applications. Compatible with stainless steel clamp ring systems and copper crimp ring systems as defined by ASTM F1807. Clamp and crimp tooling are sold separately.

Installation Notes

This fitting is installed by licensed plumbers in accordance with the International Plumbing Code and applicable local codes. Shut off the water supply and depressurize the line before cutting and fitting. Use the correct clamp or crimp tool sized for the tubing diameter to ensure a leak-free connection. Inspect the barb seat and tubing cut for squareness before seating the fitting.

Technical Specifications

• Inlet Size: 3/8 inch barb
• Outlet Size: 1/2 inch barb
• Material: Lead-free DZR brass
• Weight: 0.055 pounds
• Certifications: ASTM F1807, NSF/ANSI 61, NSF 372
• Unit of Measure: Each
• Minimum Order Quantity: 6

Standard Information

• Brand: RWC
• Manufacturer Part Number: UC009LFA
