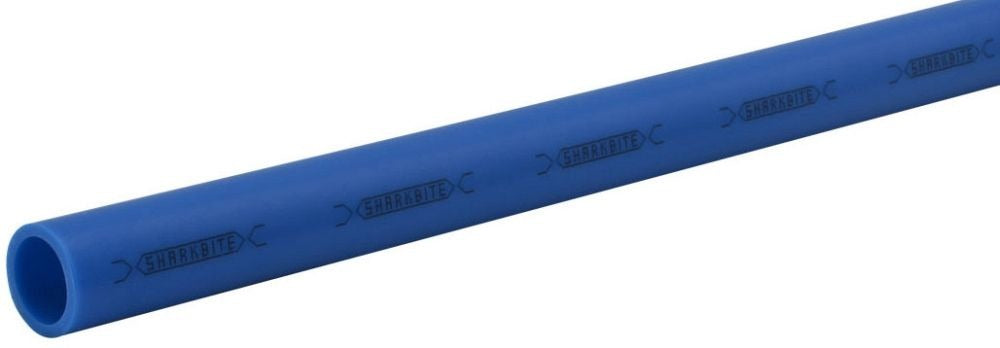

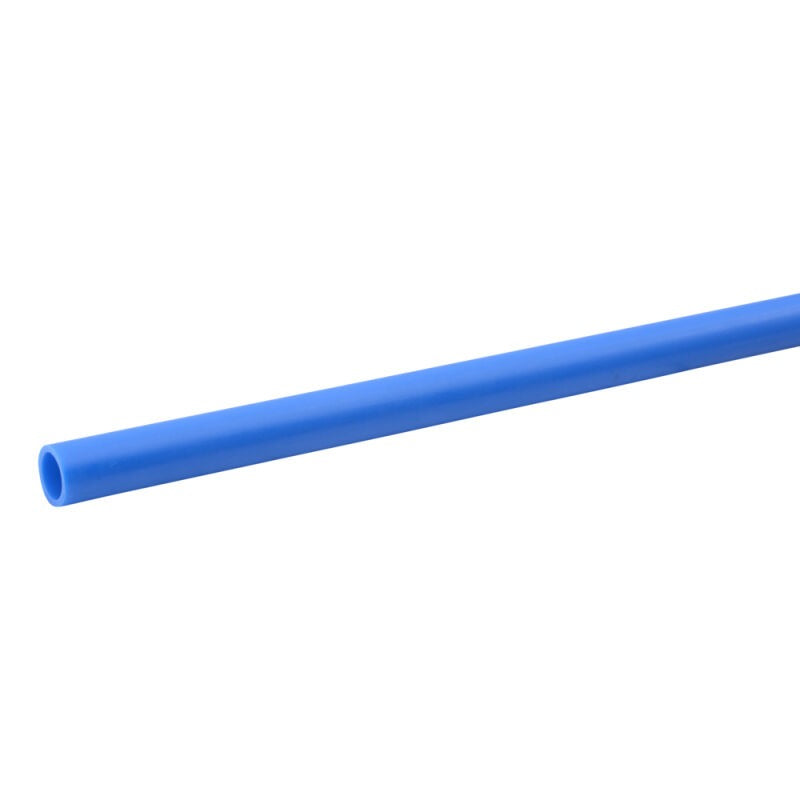

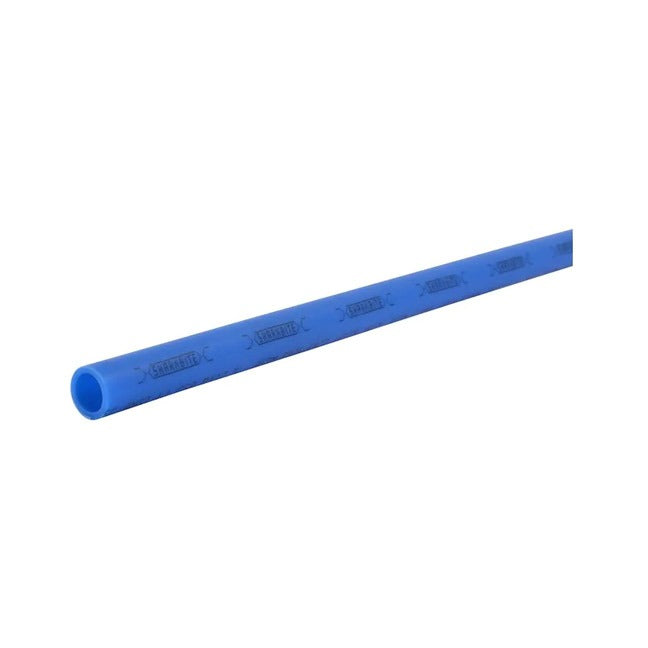

Rwc U860B20 Pex-B 1/2 in x 20 ft Stick

Product Description

Rwc U860B20 is Pex-B silane crosslinked polyethylene tubing with a nominal 1/2 inch diameter and a 20 foot straight length for potable water distribution, fire protection, and municipal water service lines. The tubing is lead-free, freeze-resistant, and compatible with push-to-connect and barb fittings. It is rated 160 PSI at 33 to 70°F and 80 PSI at 200°F and meets ASTM F2023 oxidative resistance for hot water recirculation.

• Silane crosslinked Pex-B material; nominal 1/2 in diameter; 20 ft length; outer diameter 0.625 in; median inner diameter 0.475 in; wall thickness 0.053 in.
• Rated 160 PSI at 33–70°F and 80 PSI at 200°F; certified to ASTM F2023 and other applicable standards including ASTM F876/F877 and NSF ANSI/61/14.
• Compatible with SharkBite EvoPEX, ASSE 1061 push-to-connect, plastic barb (ASTM F2159) and brass barb (ASTM F1807) fittings; approved for burial including under concrete; lead-free.

Product Highlights

Lead-free silane crosslinked Pex-B tubing, 1/2 in x 20 ft, 160 PSI at 33–70°F, compatible with common push-to-connect and barb fittings.

Product Information

Standard Information

• Brand: RWC
• Manufacturer Part Number: U860B20
• Country of Origin: United States
