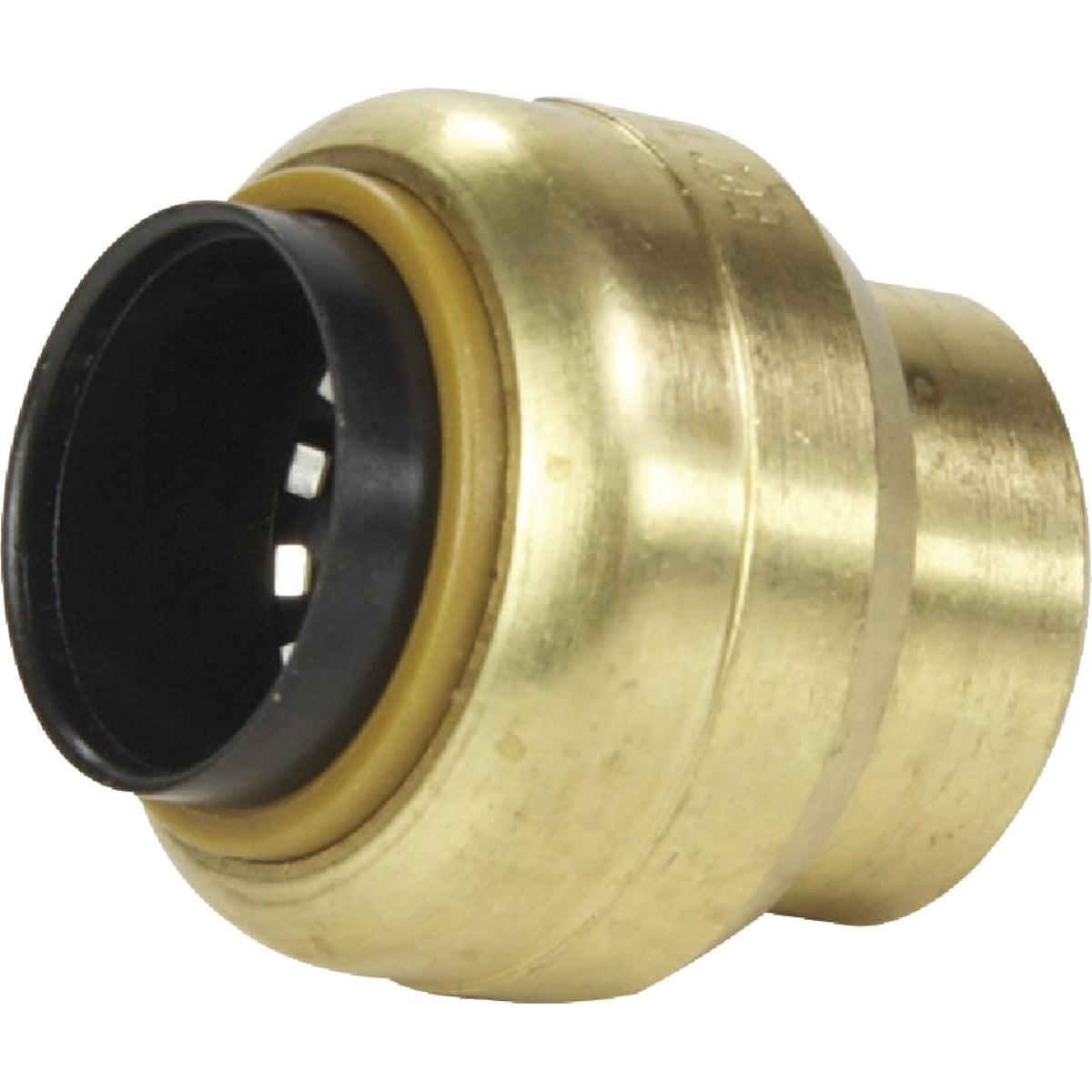

Rwc U518LFA Sharkbite 3/4 in Push-to-connect Brass End Cap

Product Description

The RWC U518LFA is a 3/4-inch push-to-connect brass end cap from the SharkBite line, designed to terminate open pipe ends without soldering, crimping, or threading. Built from one-piece DZR brass, it withstands working pressures up to 200 psi and temperatures up to 200 degrees F. The internal grab ring and O-ring seal create a secure, leak-free connection in seconds. Plumbers and pipefitters install this fitting in residential and light commercial plumbing systems where a fast, code-compliant termination is needed.

This end cap is suitable for use on copper, PEX, and CPVC pipe in potable water supply systems. Its push-to-connect design makes it practical in tight spaces or retrofit situations where torch work is not possible or permitted. The fitting can be buried in soil or installed behind drywall without additional protective measures, making it a reliable option for concealed or inaccessible locations. It arrives individually bagged and is sold per each.

Key Features

• One-piece DZR brass construction resists dezincification in aggressive water conditions
• Push-to-connect installation requires no solder, crimp tools, or pipe wrenches
Rated to 200 psi and 200 degrees F for broad residential and light commercial coverage
• Compatible with copper, PEX, and CPVC pipe
• Removable and reusable — fitting can be disconnected and reinstalled with the appropriate disconnect clip
• Approved for burial and behind-drywall installation

Compatibility

Compatible with 3/4-inch copper, PEX, and CPVC pipe. Certified and listed by UPC, IAPMO, and NSF-61 for use in potable water systems.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters. Shut off the water supply and relieve system pressure before installation. Ensure pipe ends are cut square, deburred, and clean to the full insertion depth marked on the fitting before pushing to connect. Removal requires a SharkBite disconnect clip or disconnect tongs — do not attempt to pull the fitting free without the proper tool.

Technical Specifications

• Pipe Size: 3/4 inches
• Connection Type: Push-to-Connect
• Material: DZR Brass
• Maximum Pressure: 200 psi
• Maximum Temperature: 200 degrees F
• Weight: 0.125 pounds
• Certifications: UPC, IAPMO, NSF-61
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U518LFA
