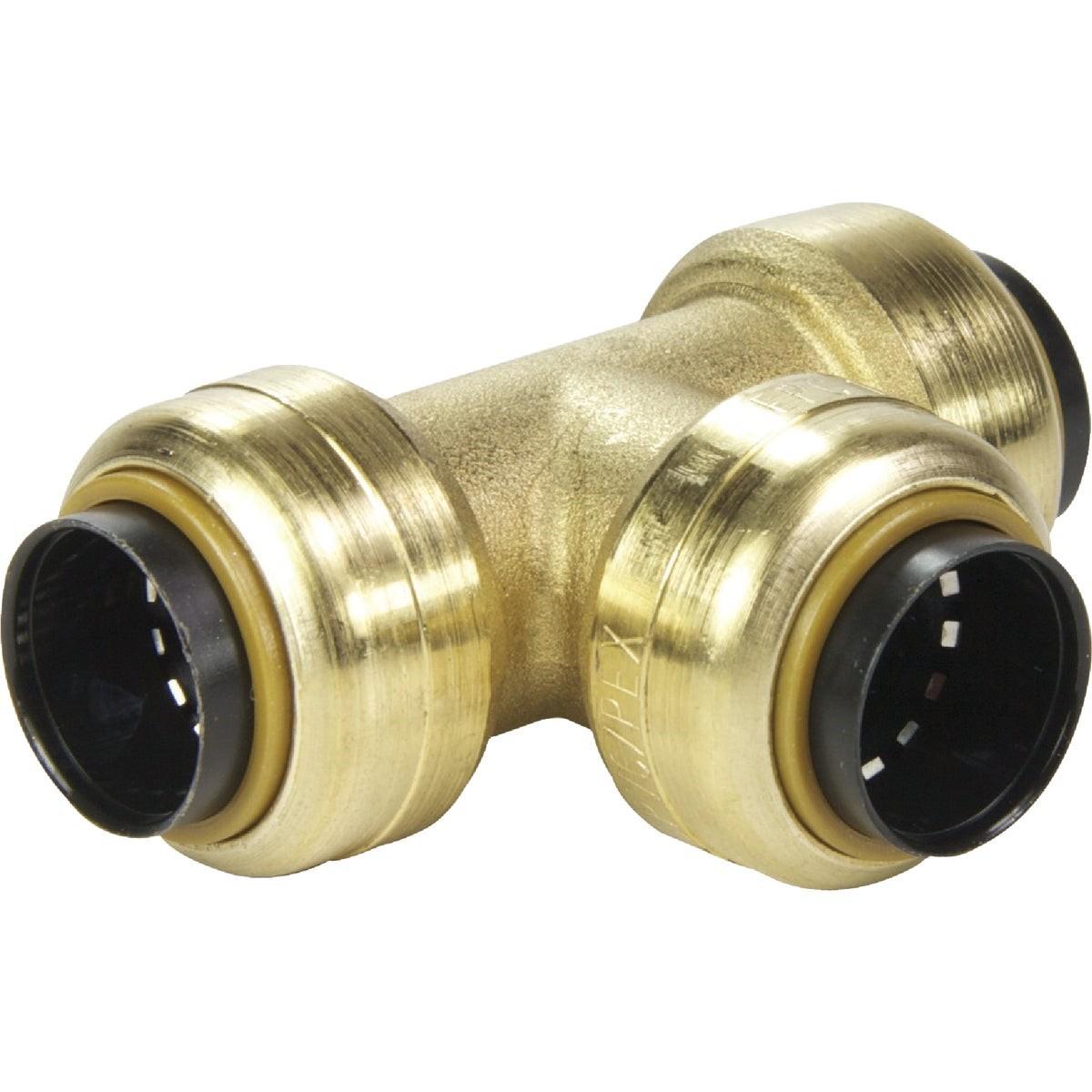

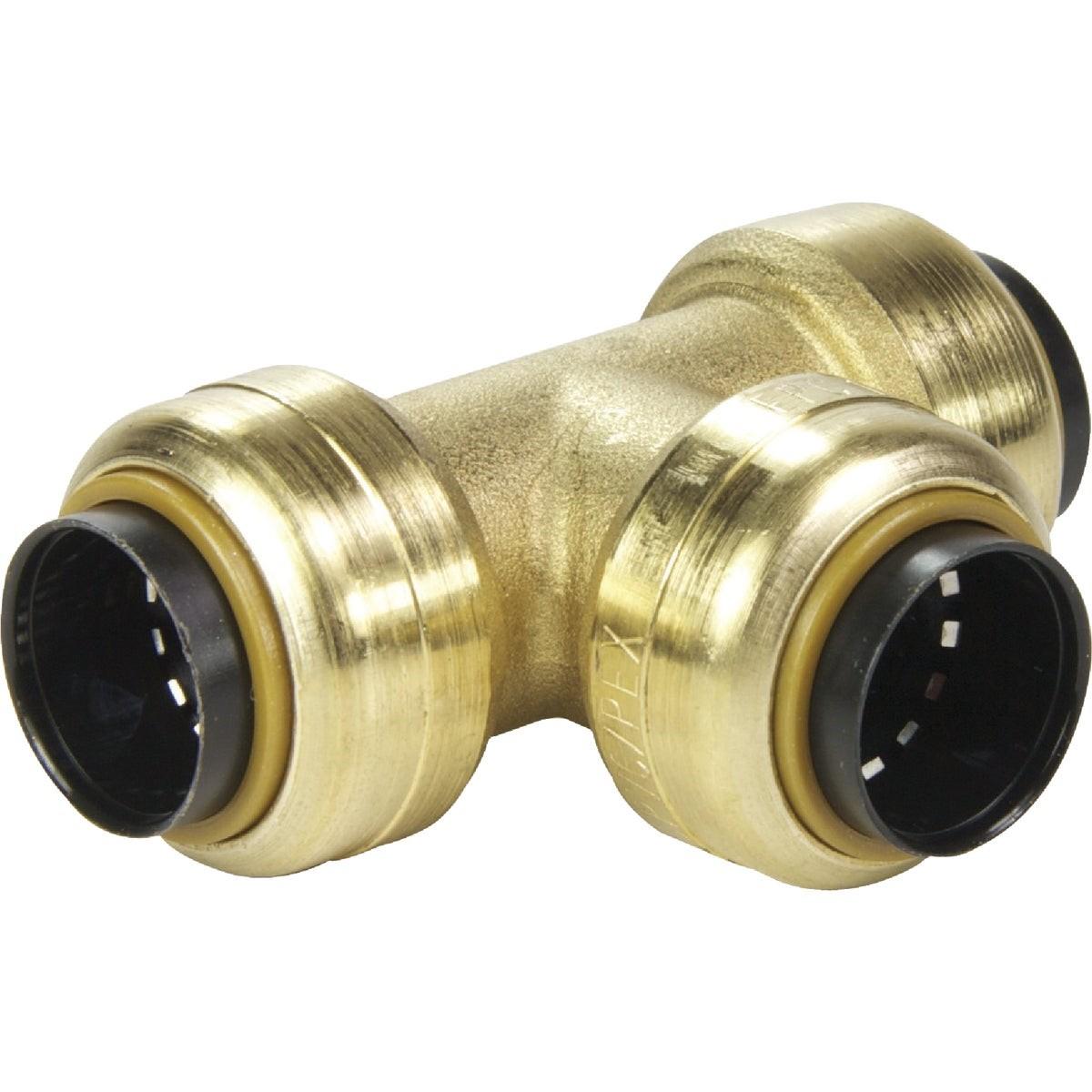

Rwc U454LFA Sharkbite Max Push-to-connect Tee 3/4x1/2x1/2

Product Description

The RWC U454LFA is a SharkBite Max push-to-connect tee fitting sized 3/4 inch by 1/2 inch by 1/2 inch. It joins three pipe runs without soldering, clamps, glue, or special tools. The redesigned stainless-steel retainer provides a 250 psi pressure rating and delivers added strength and durability over first-generation SharkBite fittings. The re-engineered body reduces insertion effort by roughly half compared to earlier designs and does not require a PEX tube liner. Licensed plumbers and skilled trades installers use this fitting for fast, code-compliant water supply connections in residential and light commercial applications.

The U454LFA is suited for branching water supply lines where pipe sizes reduce from 3/4 inch to 1/2 inch. It is compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe, making it useful across a wide range of new construction and retrofit scenarios. The fitting can be rotated after installation to clear obstructions or route lines cleanly. When a connection needs to be revised, a standard SharkBite disconnect clip or disconnect tongs removes the fitting quickly, allowing it to be repositioned or reused.

Key Features

• 250 psi pressure rating with stainless-steel retainer for enhanced burst resistance
• Reduced insertion effort compared to first-generation SharkBite push-to-connect fittings
• No PEX tube liner required — simplifies installation on PEX pipe
• Tool-free connection — no solder, clamps, unions, or adhesive needed
• Rotatable after installation for quick line adjustments
• Removable and reusable with a standard SharkBite disconnect tool

Compatibility

Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe. Fits 3/4 inch run pipe with two 1/2 inch branch or outlet connections.

Installation Notes

Installation is performed by a licensed plumber or qualified trades professional. Shut off the water supply and relieve system pressure before making or breaking any connections. Cut pipe ends square, deburr, and verify insertion depth marks are visible after seating the fitting. Consult applicable local plumbing codes and IPC guidelines for approved pipe materials and pressure ratings in the intended service environment.

Technical Specifications

• Configuration: Tee
• Inlet Size: 3/4 inches
• Outlet Size: 1/2 inches x 1/2 inches
• Pressure Rating: 250 psi
• Retainer Material: Stainless Steel
• Compatible Pipe Types: PEX, Copper, CPVC, PE-RT, HDPE
• Weight: 0.3 pounds
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U454LFA
