Rwc U360LFA Sharkbite Max Brass Push-to-connect Tee

Product Description

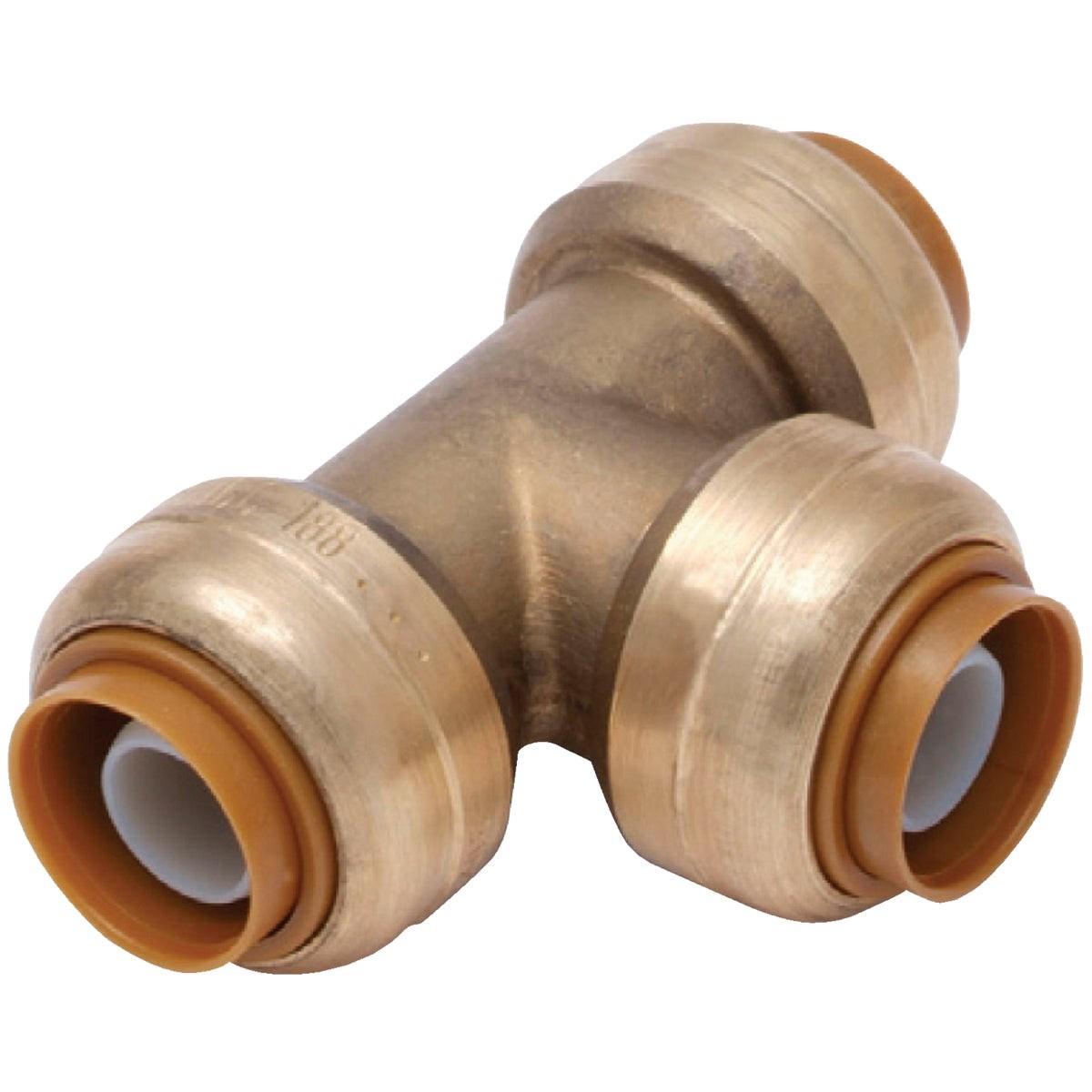

The RWC U360LFA is a SharkBite Max brass push-to-connect tee fitting designed for fast, tool-free pipe connections in residential and light commercial plumbing systems. It features a stainless-steel retainer and a re-engineered body that reduces insertion effort compared to first-generation SharkBite fittings. The fitting carries a 250 psi pressure rating, making it suitable for demanding water supply applications. Port sizing is 3/8 inch on all three outlets, compatible with pipe having a 1/2 inch OD. Licensed plumbers and pipefitters are the primary installers, though the tool-free design makes it accessible to qualified DIYers.

This tee is used in water distribution systems where PEX, copper, CPVC, PE-RT, or HDPE pipe must be joined quickly without soldering or crimping. Typical install scenarios include new construction rough-in, remodel work behind walls, and repair situations where torch access is limited or impractical. The fitting can be rotated after insertion for alignment adjustments. Removal is accomplished with a SharkBite disconnect clip or disconnect tool, allowing the fitting to be reused or repositioned without damage to the pipe.

Key Features

• 250 psi burst pressure rating for reliable water supply service
• Stainless-steel retainer provides added grip strength and durability
• Reduced insertion effort compared to first-generation push-to-connect designs
• No PEX tube liner required during installation
• No soldering, clamps, unions, glue, or special tools needed
• Fitting rotates after installation and is removable and reusable with a disconnect tool

Compatibility

Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe at 1/2 inch OD on all three ports. Designed as an OEM-style push-to-connect fitting for use in potable water and hydronic plumbing systems where 3/8 inch nominal pipe connections are required.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter. Shut off the water supply and relieve system pressure before cutting into any existing line. Ensure pipe ends are cut square, deburred, and clean before insertion into the fitting. Consult applicable local plumbing codes and IPC requirements for approved fitting use in concealed or pressurized applications.

Technical Specifications

• Pressure Rating: 250 psi
• Port Size: 3/8 inches (1/2 inch OD pipe)
• Configuration: Tee, 3/8 inches x 3/8 inches x 3/8 inches
• Material: Brass body, stainless-steel retainer
• Weight: 0.267 pounds
• Unit of Measure: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U360LFA
