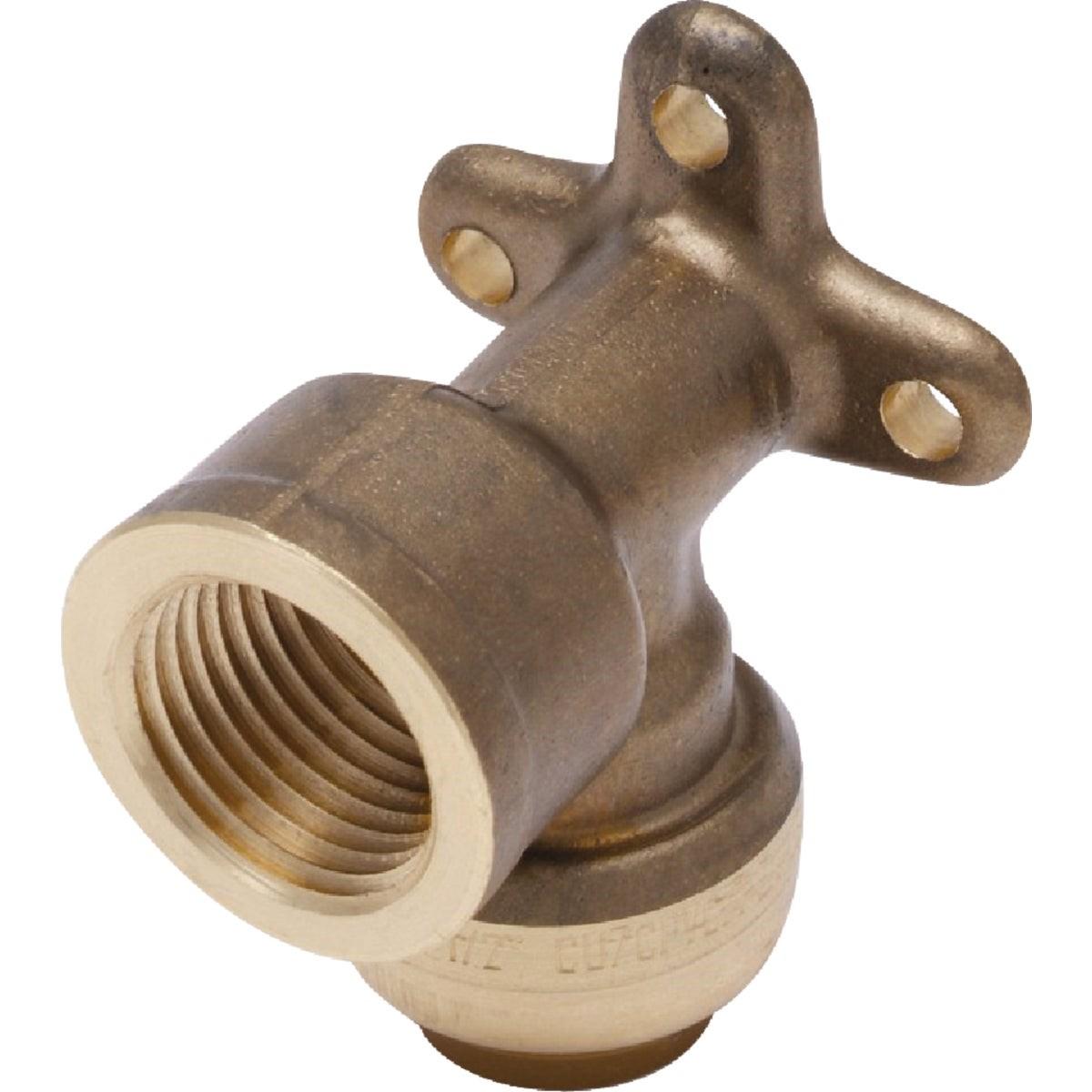

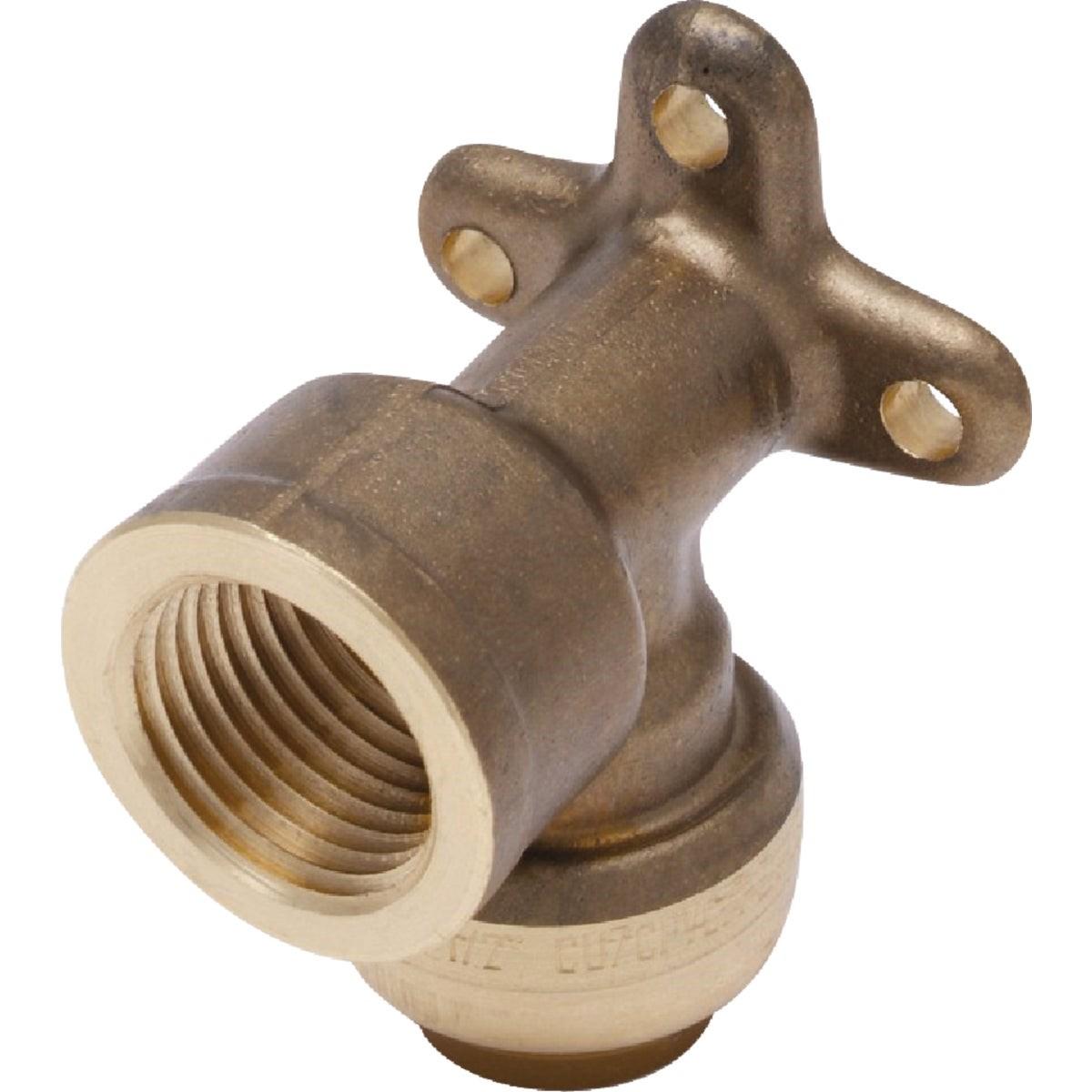

Rwc U340LFA 3/4 in Ptc X Fpt Drop Ear Brass Elbow

Product Description

The RWC U340LFA is a 3/4-inch push-to-connect (PTC) x 3/4-inch female pipe thread (FPT) 90-degree drop ear brass elbow, commonly called a 1/4 bend, designed for fast, tool-free connections in residential and light commercial plumbing. Constructed from one-piece DZR (dezincification-resistant) brass, it is rated for 200 degrees F and 200 psi. The drop ear design provides a threaded mounting flange that anchors a shower arm, wall-mount faucet, or similar fixture to a stud or backing plate. Licensed plumbers and experienced trade professionals install this fitting when a permanent, pressure-rated 90-degree turn and a fixed wall attachment point are needed in the same fitting body.

This fitting is suitable for use with copper, PEX, and CPVC pipe, making it a versatile choice across new construction and retrofit plumbing work. The push-to-connect mechanism allows the pipe to be inserted and locked without soldering, crimping, or gluing, which reduces labor time at rough-in. The fitting is removable and reusable with a standard SharkBite disconnect clip or disconnect tongs, supporting inspection, rework, or reconfiguration after initial installation. It is safe for in-wall and underground burial applications.

Key Features

• One-piece DZR brass construction resists dezincification in aggressive water conditions
• Rated 200 degrees F and 200 psi for demanding residential plumbing service
• Compatible with copper, PEX, and CPVC pipe — no solder, crimp, or glue required
• Drop ear mounting flange allows secure attachment to wall framing or backing
• Removable and reusable with standard disconnect tooling
• Approved for in-wall and buried installations
• Lead-free compliant — no more than 0.25% weighted average lead content on wetted surfaces

Compatibility

Compatible with 3/4-inch copper, PEX, and CPVC pipe. Designed for use in potable water plumbing systems where push-to-connect fittings are permitted by the authority having jurisdiction.

Installation Notes

Installation is performed by a licensed plumber in jurisdictions that require permits for plumbing rough-in work. Shut off the water supply and depressurize the line before inserting or removing the fitting. Pipe ends must be cut square, deburred, and clean before insertion to ensure a full seal. Verify local code acceptance of push-to-connect fittings for the intended application, including in-wall or underground use, before installation.

Technical Specifications

• Inlet Connection: 3/4 inches Push-to-Connect (PTC)
• Outlet Connection: 3/4 inches Female Pipe Thread (FPT)
• Fitting Angle: 90 degrees (1/4 Bend)
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees F
• Material: One-piece DZR Brass
• Compatible Pipe Types: Copper, PEX, CPVC
• Lead Content: 0.25% maximum weighted average on wetted surfaces
• Weight: 0.367 pounds
• Certifications: UPC, IAPMO, NSF-61

Standard Information

• Brand: RWC
• Manufacturer Part Number: U340LFA
