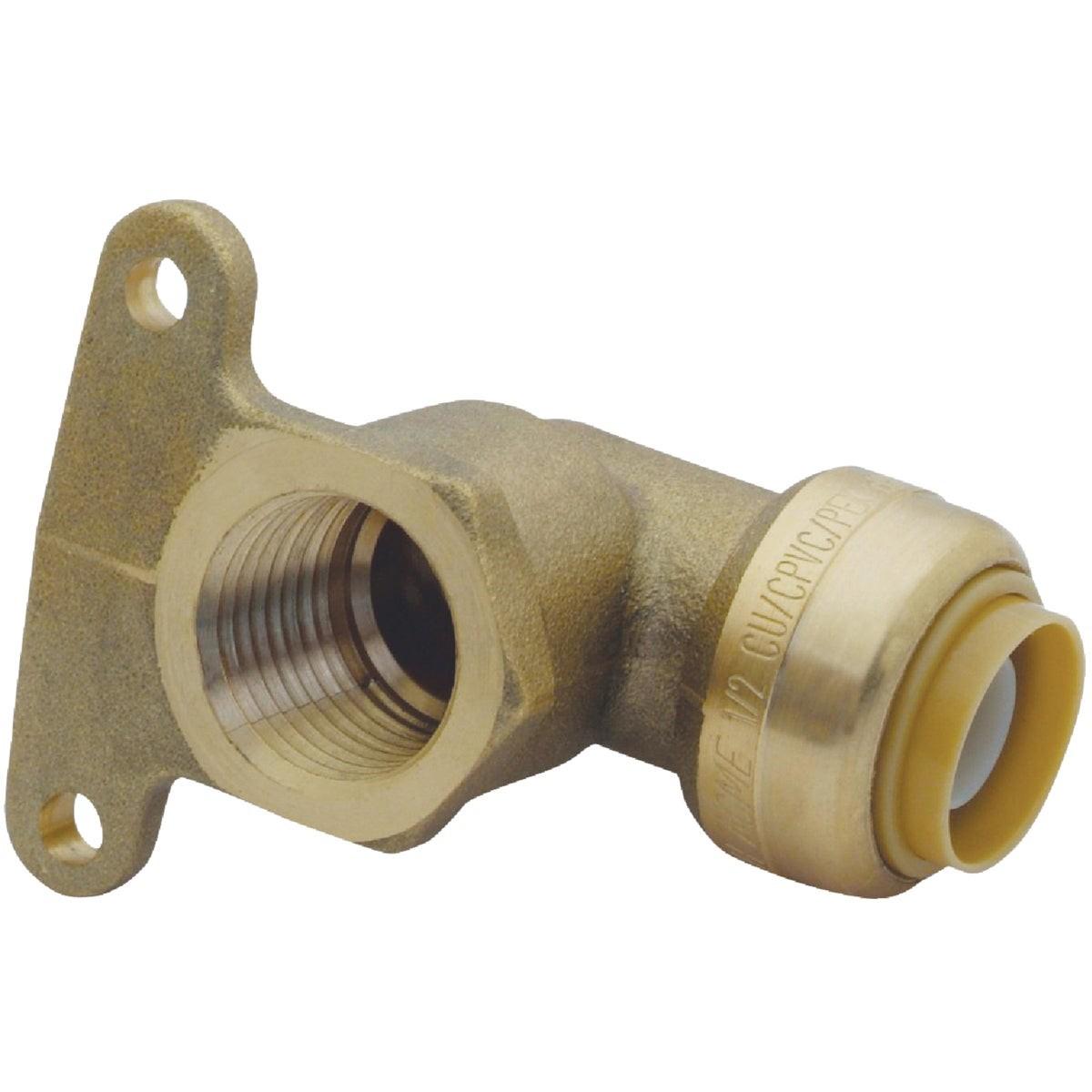

Rwc U335LFA Sharkbite Brass Push-to-connect Elbow 1/2 in

Product Description

The RWC U335LFA is a SharkBite push-to-connect hi-ear brass elbow, configured as a 1/4 bend with 1/2-inch by 1/2-inch connections. It joins pipe runs at a 90-degree angle without solder, clamps, or glue, making it a fast, reliable fitting for plumbing service and repair work. The brass body is rated to 200 psi and 200 degrees F, and it is certified to IAPMO IGC 188 and ANSI/NSF-61 for use in potable water systems. Licensed plumbers and experienced service technicians install this fitting in both residential and light commercial applications.

This elbow is designed for use with O.D.-controlled copper, CPVC, and PEX pipe. The push-to-connect mechanism accepts the pipe with a single push and grips it with an internal stainless-steel bite ring, creating a watertight seal without heat or special tools. It meets UPC, IPC, and CUPC requirements, making it suitable for potable water distribution and hydronic heating water systems in jurisdictions that require code-compliant fittings.

Key Features

• Push-to-connect design — no soldering, crimping, or gluing required
• Rated to 200 psi and 200 degrees F
• Compatible with copper, CPVC, and PEX pipe
• Certified to ANSI/NSF-61 for potable water contact
• Meets UPC, IPC, and CUPC code requirements
• Brass body construction for durability in wet environments

Compatibility

Compatible with O.D.-controlled copper, CPVC, and PEX pipe in 1/2-inch size. Approved for potable water distribution and hydronic heating water distribution systems meeting UPC, IPC, and CUPC requirements.

Installation Notes

Licensed plumbers install this fitting in accordance with the IPC or UPC, depending on the local jurisdiction. Shut off the water supply and depressurize the line before making connections. Cut pipe cleanly and squarely, deburr the end, and push fully into the fitting until it seats against the internal stop — no additional tools are required to make the connection. Verify local code acceptance of push-to-connect fittings before installation in concealed or embedded locations.

Technical Specifications

• Connection Size: 1/2 inch x 1/2 inch
• Connection Type: Push-to-Connect
• Bend Angle: 90 degrees (1/4 Bend)
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees F
• Material: Brass
• Compatible Pipe Types: Copper, CPVC, PEX (O.D. controlled)
• Certifications: IAPMO IGC 188, ANSI/NSF-61, UPC, IPC, CUPC
• Weight: 0.275 pounds

Standard Information

• Brand: RWC
• Manufacturer Part Number: U335LFA
