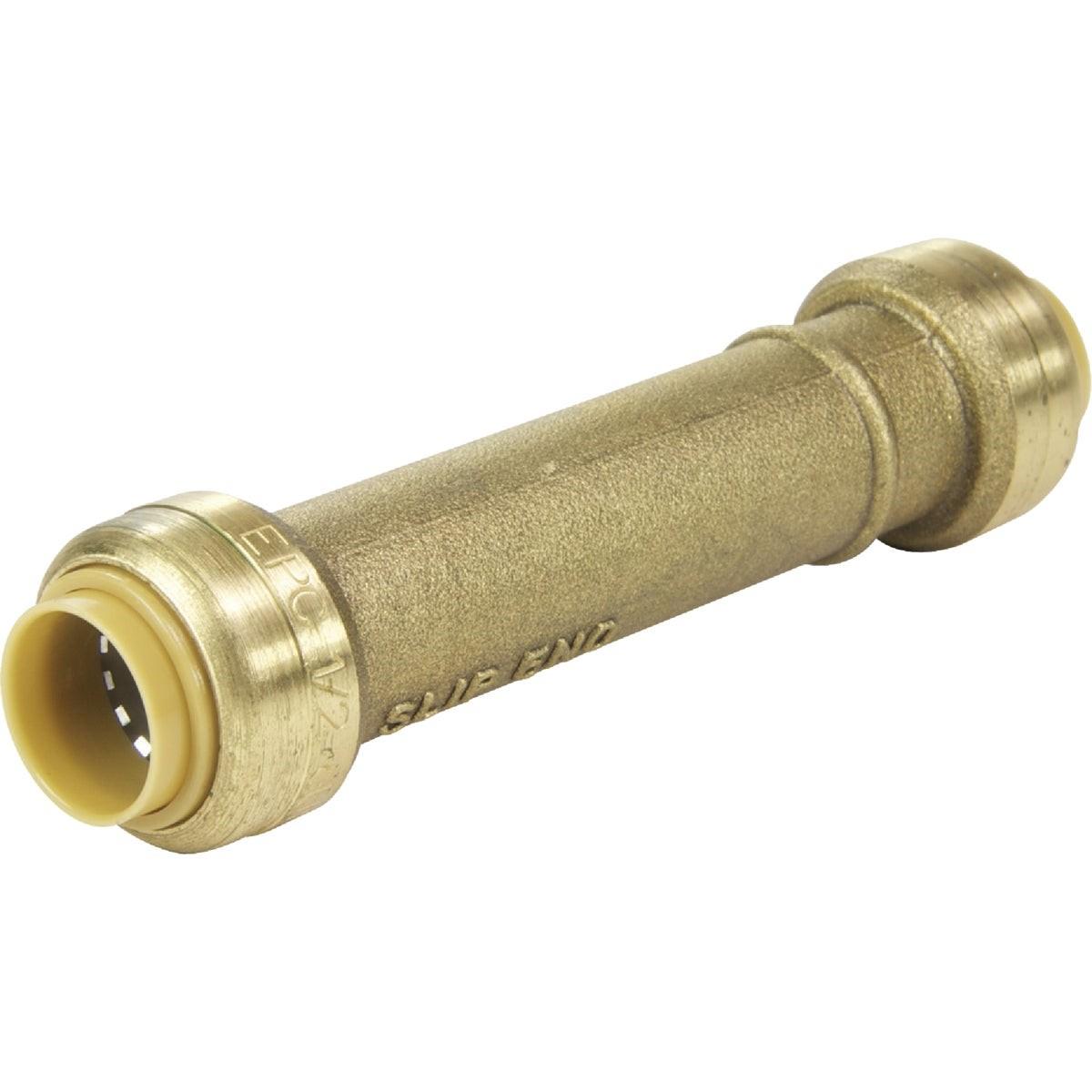

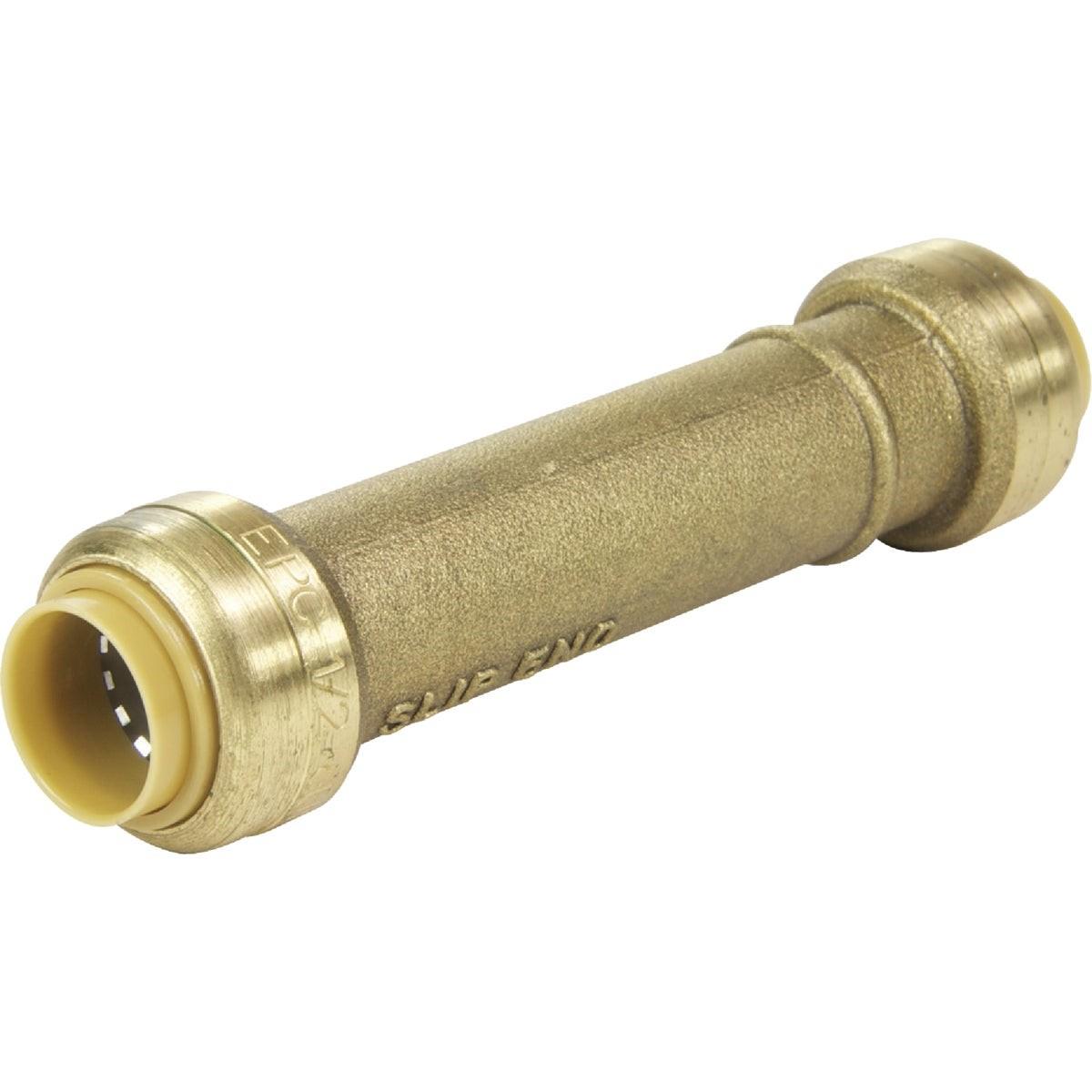

Rwc U3016LFA Sharkbite 3/4 in Brass Slip Repair Coupling

Product Description

The RWC U3016LFA is a 3/4-inch push-to-connect brass slip repair coupling designed for fast, tool-free pipe repair in residential and light commercial plumbing systems. Built from one-piece DZR brass, it handles up to 200 degrees F and 200 psi, making it suitable for demanding domestic water applications. Unlike a standard coupling, only one end has a stop, allowing the opposite end to slide freely over the pipe. This design lets a single fitting do the work of two couplings and a section of extra pipe, cutting repair time significantly. A disconnect clip is included for tool-assisted removal.

This slip coupling is used for repairing burst pipes, pinhole leaks, and damaged sections in copper piping systems. The push-to-connect mechanism allows plumbers and pipefitters to complete repairs without soldering, threading, or crimping. The fitting is approved for use behind drywall and in buried applications, making it a practical choice for both accessible and concealed installations in residential and commercial plumbing systems. The coupling is sold individually and arrives pre-bagged for jobsite convenience.

Key Features

• One-piece DZR brass construction for corrosion resistance in potable water service
• Rated to 200 degrees F and 200 psi
• Single-stop slip design replaces two standard couplings plus extra pipe
• Push-to-connect installation requires no soldering, threading, or crimping
• Removable and reusable with included disconnect clip
• Approved for buried and behind-drywall installations
• Lead content limited to no more than 0.25% weighted average on wetted surfaces

Compatibility

Designed for use with copper pipe only. Suitable as a slip repair coupling for 3/4-inch copper lines in residential and light commercial cold and hot water distribution systems.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters in accordance with applicable local plumbing codes and IPC standards. Shut off the water supply and depressurize the line before beginning the repair. Ensure pipe ends are cut clean and square and are free of burrs before inserting into the fitting. Use the included disconnect clip and a push-to-connect disconnect tool if removal or repositioning is required.

Technical Specifications

• Pipe Size: 3/4 inches
• Connection Type: Push-to-connect (slip)
• Material: One-piece DZR brass
• Maximum Pressure: 200 psi
• Maximum Temperature: 200 degrees F
• Compatible Pipe Material: Copper only
• Lead Content: No more than 0.25% weighted average on wetted surfaces
• Weight: 0.375 pounds
• Certifications: UPC, IAPMO, NSF-61
• Sold As: Each

Standard Information

• Brand: RWC
• Manufacturer Part Number: U3016LFA
