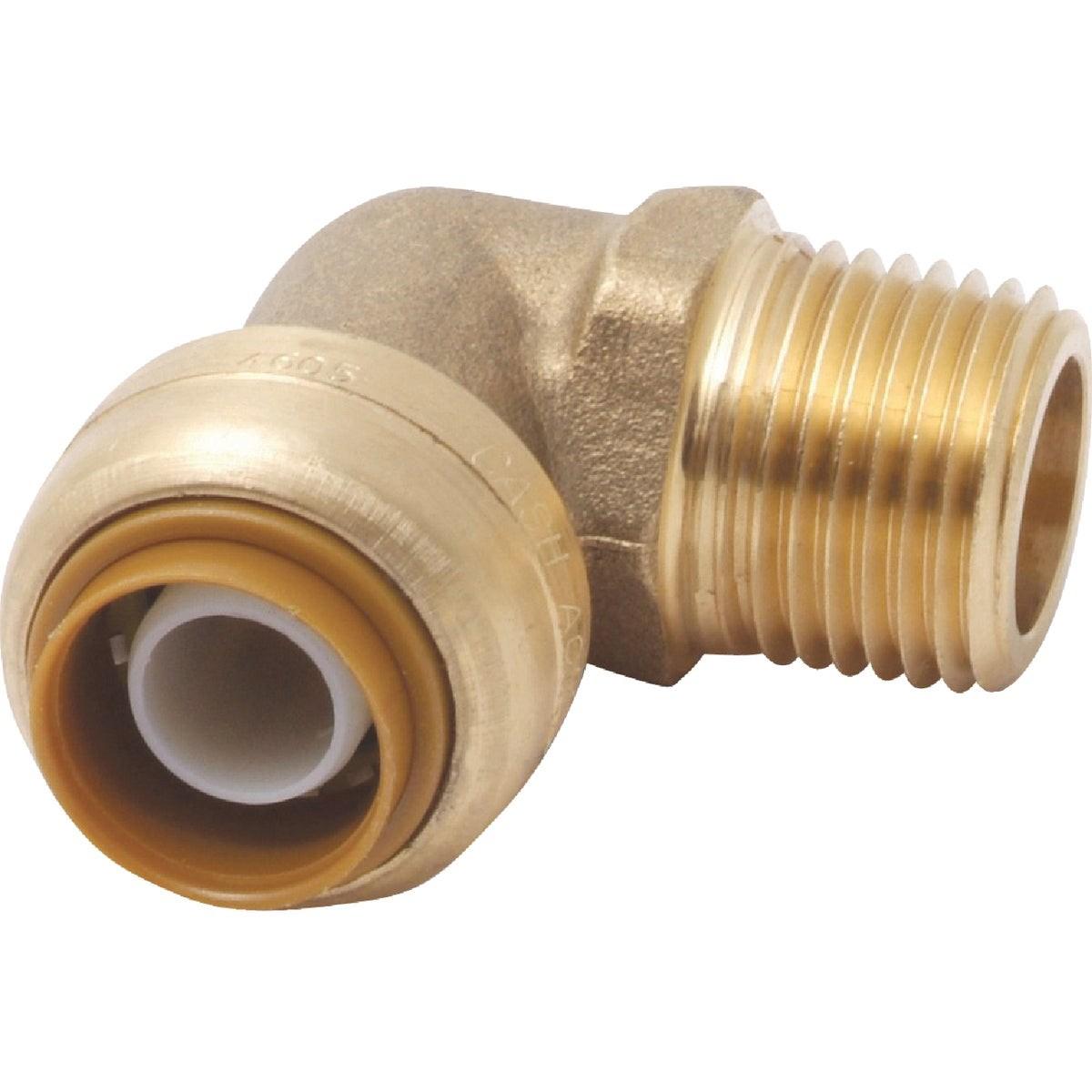

Rwc U286LFA 3/4 in Push-to-connect 90 Deg Mnpt Brass Elbow

Product Description

The RWC U286LFA is a 90-degree push-to-connect male NPT brass elbow designed for fast, tool-free connections in residential and light commercial plumbing systems. The push-to-connect end accepts 3/4-inch OD-controlled copper, CPVC, or PEX tubing without soldering, crimping, or threading. The 3/4-inch MNPT end threads directly into standard female NPT fittings. Built from low-lead brass with no more than 0.25 percent weighted average lead content on wetted surfaces, this elbow meets potable water system requirements. It is rated for pressures up to 200 psi and temperatures up to 200 degrees F.

This elbow is suited for residential and light commercial water supply lines where a 90-degree direction change is needed at a threaded transition point. Common applications include connecting PEX tubing runs to threaded valves, manifolds, or fixture shut-offs. The push-to-connect design allows installers to complete connections quickly in tight spaces without a torch or crimp tool, making it a practical choice for repairs and new installations on copper, CPVC, and PEX systems.

Key Features

• Push-to-connect inlet accepts 3/4-inch OD copper, CPVC, or PEX tubing with no tools required
• 3/4-inch MNPT outlet threads directly into standard female NPT fittings
• Rated to 200 psi and 200 degrees F for reliable performance across typical water supply conditions
• Low-lead brass construction with no more than 0.25 percent weighted average lead content on wetted surfaces
• IAPMO IGC 188 and ANSI/NSF 61 certified for use in potable water systems

Compatibility

Compatible with 3/4-inch OD-controlled copper tubing, CPVC pipe, and PEX tubing. Threaded end connects to any standard 3/4-inch female NPT fitting or valve.

Installation Notes

Installation is performed by licensed plumbers or qualified tradespeople. Shut off the water supply and relieve system pressure before making or breaking any connections. Ensure tubing ends are cut square, deburred, and fully inserted to the fitting stop line before pressurizing. Verify all connections comply with applicable local plumbing codes and IAPMO standards.

Technical Specifications

• Connection Type: Push-to-Connect x Male NPT (MNPT)
• Inlet Size: 3/4 inch
• Outlet Size: 3/4 inch
• Angle: 90 degrees
• Material: Low-Lead Brass
• Max Pressure: 200 psi
• Max Temperature: 200 degrees F
• Lead Content: 0.25 percent maximum weighted average on wetted surfaces
• Certifications: IAPMO IGC 188, ANSI/NSF 61
• Weight: 0.296 pounds

Standard Information

• Brand: RWC
• Manufacturer Part Number: U286LFA
