Rwc U280LFA Sharkbite 1/2 in Push-to-connect Mnpt Brass Elbow

Product Description

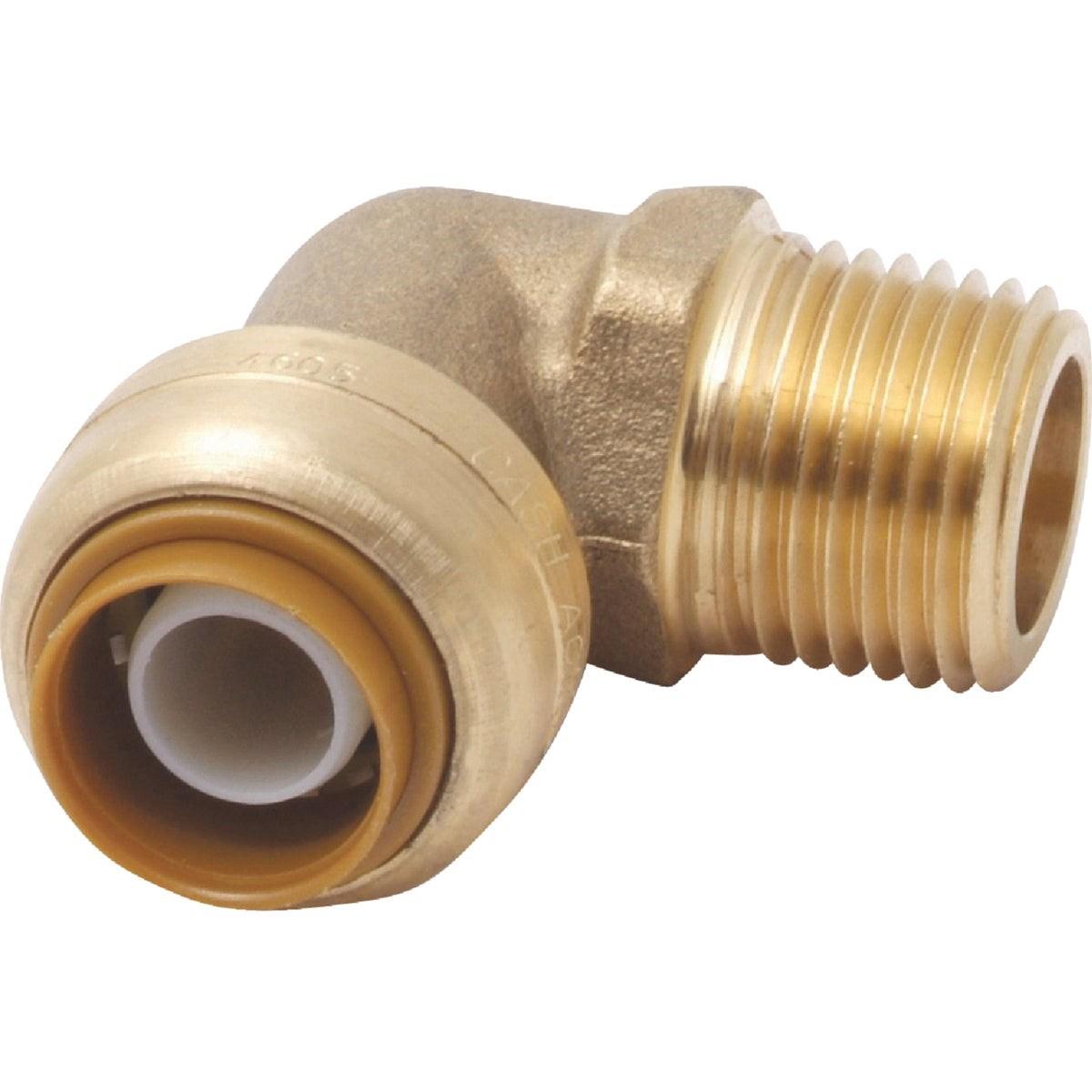

The RWC U280LFA is a SharkBite push-to-connect 90-degree brass elbow with male NPT (MNPT) transition, sized at 1/2 inch x 1/2 inch. It is designed to create a right-angle turn while transitioning from push-to-connect tubing to a threaded male fitting in a potable water system. Rated to 200 psi and 200 degrees F, this elbow meets demanding residential and light commercial plumbing requirements. Low-lead construction limits weighted average lead content on wetted surfaces to no more than 0.25%, keeping the fitting compliant with current safe drinking water standards. Licensed plumbers and experienced DIYers install this fitting where toolless connections are preferred.

This elbow is suited for use with OD-controlled copper, CPVC, and PEX tubing in residential and light commercial potable water distribution systems. The push-to-connect end accepts the tubing without soldering, crimping, or clamps, while the 1/2 inch MNPT end threads into a female-threaded port on a valve, fixture, or manifold. It is commonly installed in tight spaces where a 90-degree directional change and a threaded transition are needed in a single compact fitting.

Key Features

• Push-to-connect design — no soldering, crimping, or special tools required on the PTC end
• 90-degree MNPT elbow transitions push-to-connect tubing to a male threaded outlet in one fitting
• Rated to 200 psi and 200 degrees F for reliable performance in hot and cold water lines
• Low-lead brass construction — 0.25% maximum weighted average lead on wetted surfaces
• Compatible with OD-controlled copper, CPVC, and PEX tubing
• IAPMO IGC 188 and ANSI/NSF 61 certified for potable water service

Compatibility

Designed for use with OD-controlled copper, CPVC, and PEX tubing in 1/2 inch size. The MNPT outlet threads into any standard 1/2 inch female NPT port.

Installation Notes

Installation is performed by a licensed plumber or qualified tradesperson in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the water supply before making any connections. Ensure tubing is cut square, deburred, and fully inserted to the fitting stop line before pressurizing. Apply thread sealant or PTFE tape to the MNPT threads before engaging the female threaded port.

Technical Specifications

• Connection Size: 1/2 inch x 1/2 inch
• Connection Type: Push-to-Connect x MNPT
• Angle: 90 degrees
• Material: Brass (low-lead)
• Maximum Pressure: 200 psi
• Maximum Temperature: 200 degrees F
• Lead Content: 0.25% maximum weighted average on wetted surfaces
• Certifications: IAPMO IGC 188, ANSI/NSF 61
• Weight: 0.225 pounds

Standard Information

• Brand: RWC
• Manufacturer Part Number: U280LFA
